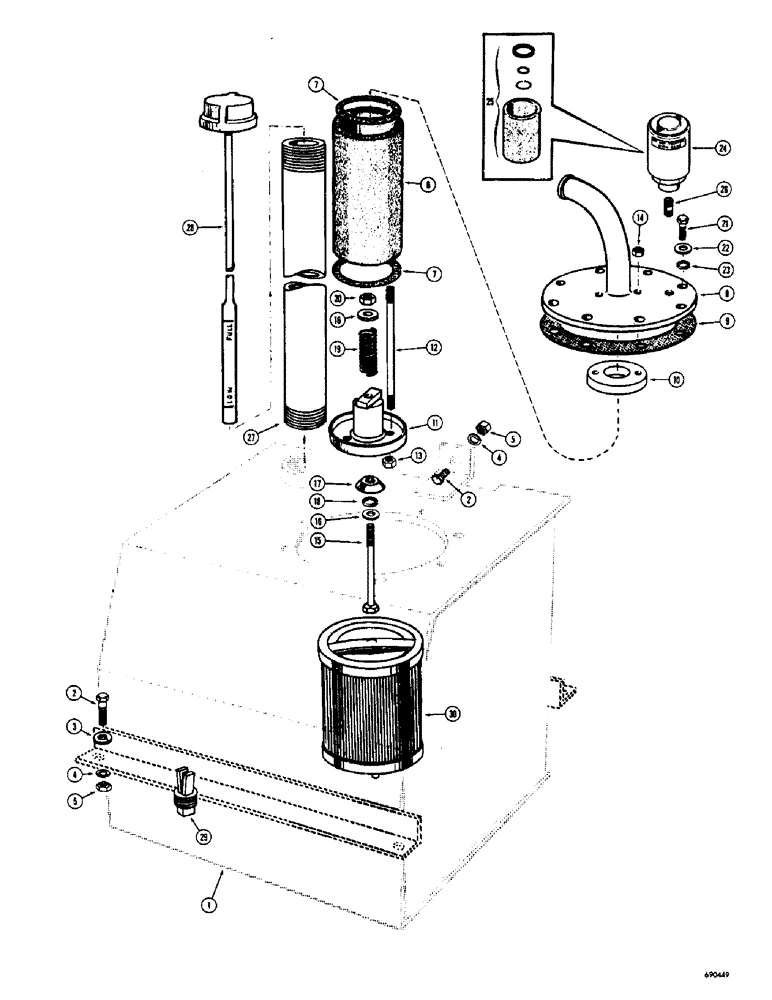

Запчасти Case W7 (262) - HYDRAULIC TANK (08) - HYDRAULICS

1

A17404

TANK

- hydraulic oil

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

3

95-6

WASHER,3/8"

- plain (), Includes: Ref. 4 3/8"

2шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), Includes: Ref. 6

3шт.

6

A33487

KIT

FILTER - return, hydraulic oil

1шт.

7

A17425

GASKET

-, Serial Range: filter-cover

2шт.

8

A17416

COVER

- filter, return

1шт.

9

A17427

GASKET

- filter cover

1шт.

10

A17420

CYLINDER END CAP

CAP - filter to cover, upper

1шт.

11

A17419

CYLINDER END CAP

CAP - filter to cover, lower

1шт.

12

A17424

STUD

- retaining, Serial Range: filter-cover

2шт.

13

131-506

NUT,1/4-20

NUT - hex., lock (1/4" - 20 NC)

2шт.

14

25-104

NUT,1/4"-20, G5

2шт.

15

13-480

CAP,Hex, 1/4" - 20 x 5", Gr 5

HHCS - 1/4" - 20 NC x 5"

1шт.

16

195-18

WASHER,1/4"

- plain () 1/4"

2шт.

17

A17426

COVER ASSY

COVER - filter relief

1шт.

18

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - "O" ring, relief cover

1шт.

19

A30709

VALVE SPRING

SPRING - relief, filter element

1шт.

20

131-506

NUT,1/4-20

NUT - hex., lock (1/4" - 20 NC)

1шт.

21

A16900

BOLT - filter, Serial Range: cover-tank

8шт.

22

195-25

WASHER,3/8"

- plain () 3/8"

8шт.

23

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, bolt to cover

8шт.

24

A56518

VALVE

- pressure relief

1шт.

25

L30196

KIT

- repair, relief valve

1шт.

26

221-1189

NIPPLE, LUBE

NIPPLE - pipe, Serial Range: valve-cover

1шт.

27

A17428

PIPE - filler, hydraulic oil

1шт.

28

A17431

DIPSTICK

GAUGE - level, hydraulic oil

1шт.

29

A17429

PLUG

- drain, magnetic

1шт.

30

A17413

FILTER

- outlet, hydraulic tank

1шт.
