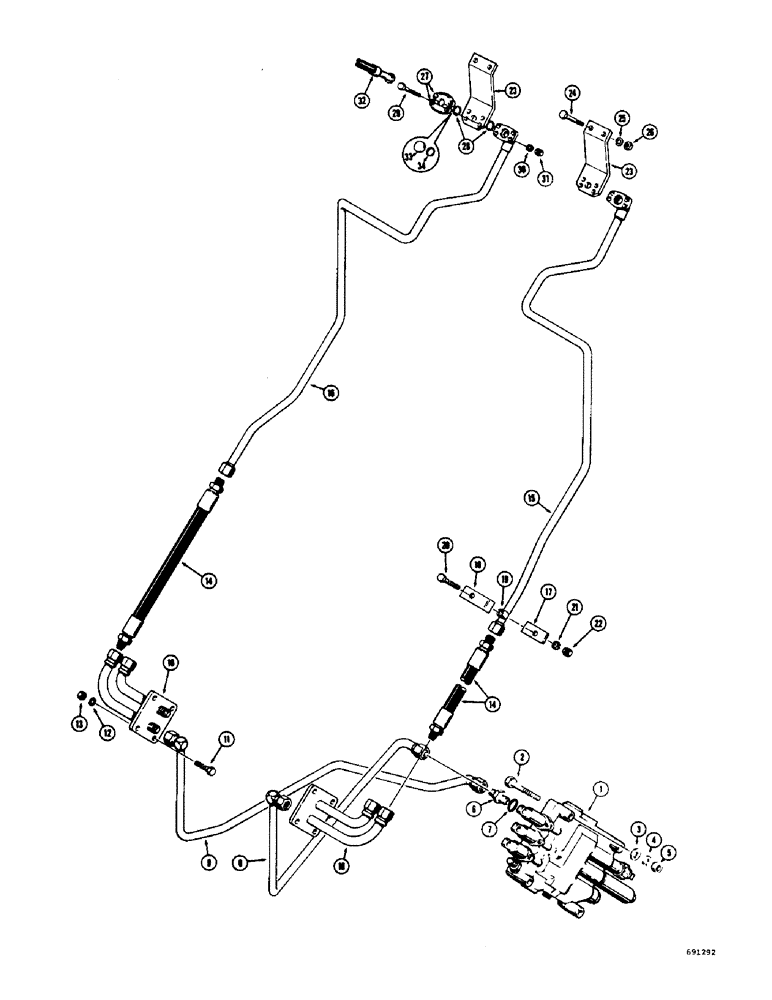

Запчасти Case W7 (261A) - DROTT 4-IN-1 BUCKET HYDRAULICS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE - hydraulic, loader control (3 spool) Parts list figure 270
1шт.
2
13-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
3шт.
3
195-33
WASHER,1/2"
- plain () 1/2"
3шт.
4
92-8
LOCK WASHER,1/2"
3шт.
5
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
3шт.
6
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR - male, straight, Incl. Ref. 7
2шт.
7
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
8
A18478
TUBE - valve to side plate connector, R.H.
1шт.
9
A18479
TUBE - valve to side plate connector, L.H.
1шт.
10
A18481
TUBE - special, side plate
2шт.
11
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
8шт.
12
92-8
LOCK WASHER,1/2"
8шт.
13
25-148
JAM NUT,Jam, 1/2"-13, G5
- hex (1/2"-13 NC)
8шт.
14
A17639
HOSE
- connector to intermediate tube (24-1/2" long)
2шт.
15
A18476
TUBE - intermediate, valve to clam cylinder (R.H.)
1шт.
16
A18477
TUBE - intermediate, valve to clam cylinder (L.H.)
1шт.
17
A18475
BRACKET - mounting, clamp
2шт.
18
A16956
CLAMP - tube
2шт.
19
A16957
SPACER - clamp
2шт.
20
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
21
92-6
LOCK WASHER,3/8"
2шт.
22
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
23
A16959
BRACKET
- tube mounting
2шт.
24
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
Includes: Ref. 25 Hex, 1/2"-13 x 2", G5
4шт.
25
92-8
LOCK WASHER,1/2"
4шт.
26
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
4шт.
27
A16961
FLANGE
- split, Serial Range: hose-bracket
8шт.
29
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- 3/8" - 16 NC x 2"
8шт.
30
92-6
LOCK WASHER,3/8"
8шт.
31
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
8шт.
33
A18342
PLUG
- cylinder tube (Used when Drott bucket is removed)
2шт.
Выбрано товаров: 34
