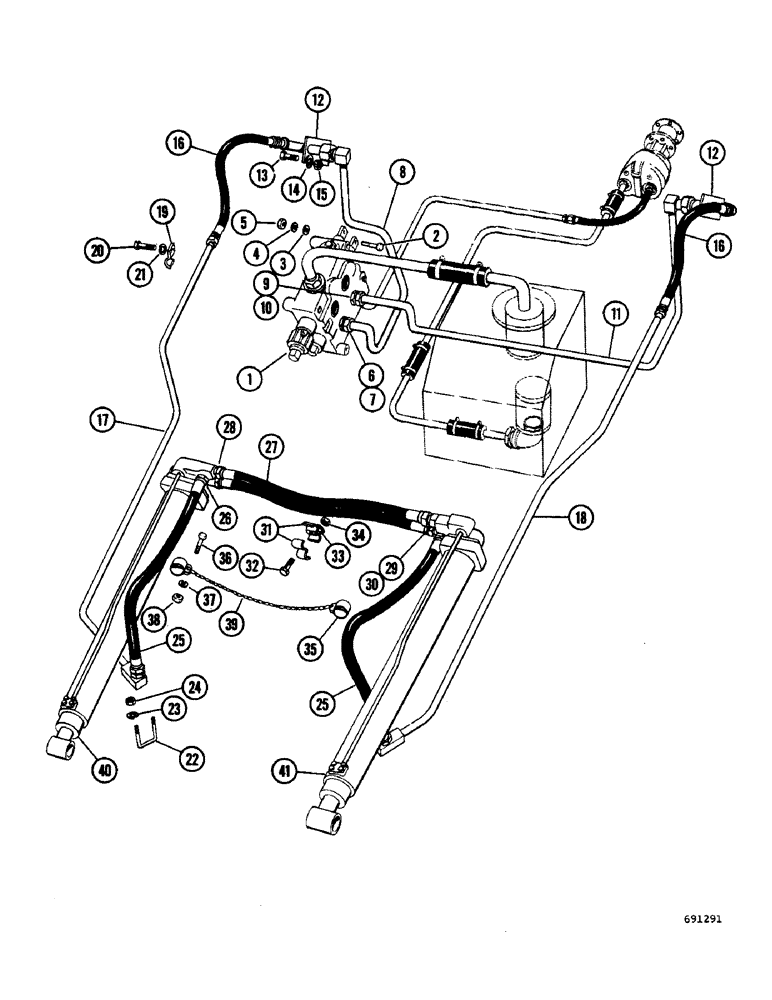

Запчасти Case W7 (260) - LOADER HYDRAULICS, TILT CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figures 268 and 270 for proper valve)

1шт.

2

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

195-33

WASHER,1/2"

- plain () 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

6

A17646

CONNECTOR, ELEC

CONNECTOR - male, straight (Short), Includes: Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

8

A17640

TUBE

- valve to connector, R.H.

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

11

A17641

TUBE

- valve to connector, L.H.

1шт.

12

A17642

CONNECTOR, ELEC

TUBE - special, side plate

2шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

14

92-8

LOCK WASHER,1/2"

8шт.

15

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex (1/2"-13 NC)

8шт.

16

A17639

HOSE

- connector to intermediate tubes (24-1/4" long)

2шт.

17

A17634

TUBE

- valve to tilt cylinders, rod end

1шт.

18

A17635

TUBE

- valve to tilt cylinder closd end

1шт.

19

A12308

CLAMP

- tubes to lift arm

2шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

A17633

CLAMP - tube to tilt cylinder

2шт.

23

92-5

LOCK WASHER,5/16"

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

4шт.

25

A17632

HYDRAULIC HOSE,1.00" ID x 42.00", SAE 100R2 Type AT

- Intermediate tubes to tilt cylinder, Includes Ref. 26 1.00" ID x 42.00", SAE 100R2 Type AT

2шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

27

A17645

HOSE ASSY.

HOSE - tilt cylinder to tilt cylinder, Includes: Ref. 28

2шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

29

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - hose to tilt cylinder, Incl. Ref. 30

2шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

31

A12332

CLAMP

- tilt cylinder hoses

2шт.

32

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

- hex. 3/8" - 16 NC

1шт.

35

A17647

CLAMP

- A17632 hoses

2шт.

36

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

39

A17649

CHAIN

- tie A17632 hose

1шт.

40

A17346

CYLINDER - tilt, R.H. (Parts list figure 276)

1шт.

41

A17347

CYLINDER - tilt, L.H. (Parts list figure 276)

1шт.
