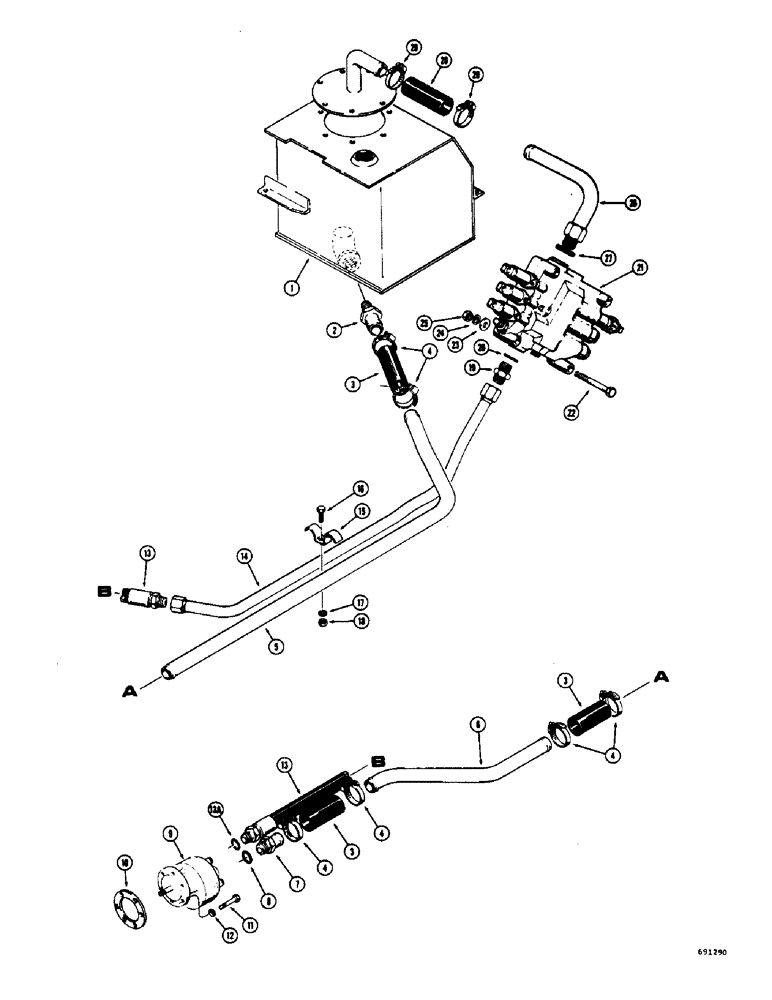

Запчасти Case W7 (256) - LOADER HYDRAULICS, PUMP SUCTION AND PRESSURE LINE (08) - HYDRAULICS

1

A17404

TANK

- hydraulic oil (See figure 262 for related parts)

1шт.

2

A17612

X

CONNECTOR - tank to suction hose

1шт.

3

L19644

HOSE

- suction, low pressure

3шт.

4

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

6шт.

5

A17614

TUBE

- suction, at tank

1шт.

6

A17615

TUBE

- suction, at pump

1шт.

7

A17617

CONNECTOR - pump inlet

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

A17618

PUMP - hydraulic, 33 G.P.M. at 2150 R.P.M. (Parts list figure 272) When stock is exhausted, order 1 - L19456 pump, 1 - L19644 hose and 1 - L19643 hose for service

1шт.

9

L19456

PUMP

- hydraulic, 33 G.P.M. at 2150 R.P.M. (Commercial Shearing #C230-70) Parts list figure 273A

1шт.

10

A17619

GASKET

- pump

1шт.

11

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - 3/8" - 16 NC x 1-1/4"

6шт.

12

92-6

LOCK WASHER,3/8"

6шт.

13

L19643

HOSE ASSY.

HOSE - pump to control valve (15-9/16" long), Includes: Ref. 13A

1шт.

13a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

14

A17621

TUBE

- pump to control valve (2 spool valve only)

1шт.

A18480

TUBE - pump to control valve (3 spool valve only)

1шт.

15

A17616

CLAMP - tube

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

19

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 20

1шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

21

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figure 268 and 270 for proper valve)

1шт.

22

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

23

195-33

WASHER,1/2"

- plain () 1/2"

3шт.

24

92-8

LOCK WASHER,1/2"

3шт.

25

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

26

A17622

TUBE

- return, valve outlet to hydraulic tank, Includes: Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

28

A12299

HYDRAULIC HOSE,1.25" ID x 5.50", SAE20R1

1.25" ID x 5.50", SAE 20R1 - Return, Low pressure

1шт.

29

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.
