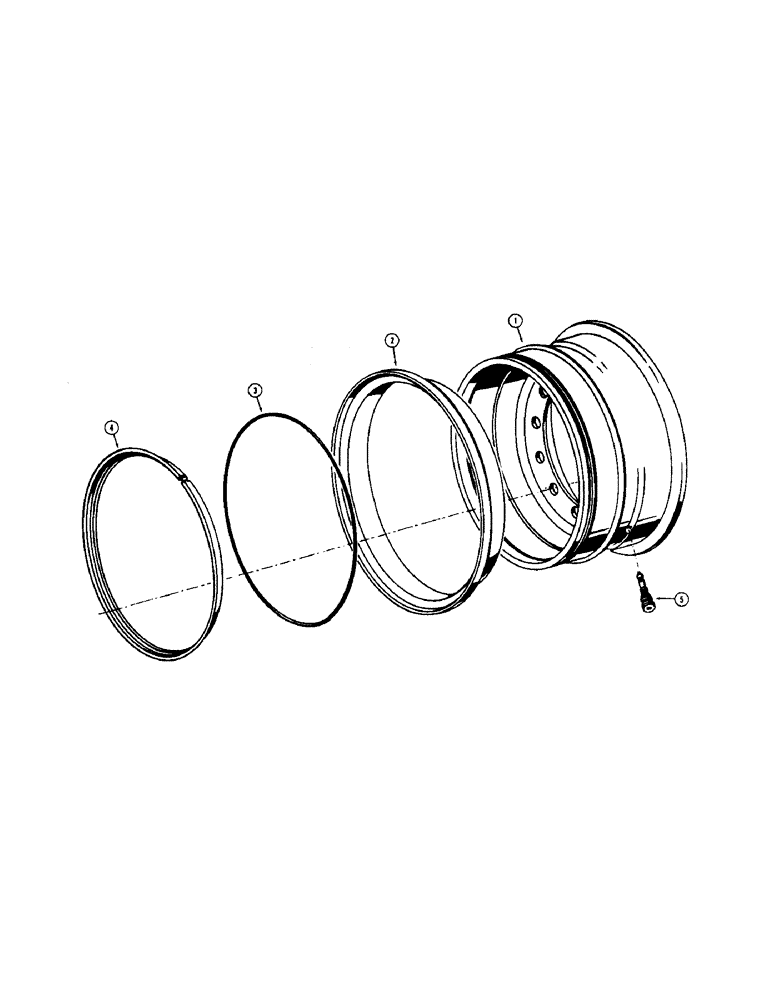

Запчасти Case W7 (242) - DRIVE WHEEL, BRAKE DRUM ASSEMBLY, A12985 BRAKE WHEEL CYLINDER (07) - BRAKES

1

A17307

WHEEL (STEERING)

WHEEL - drive, 12.00 x 24 and 13.00 x 24 tires, Includes: Ref. 2 - 4

4шт.

2

A13097

RING

- side, wheel rim

1шт.

3

A13099

O-RING,22 1" ID x 0.25"

SEAL - "O" ring, side ring

1шт.

4

A13098

RING

LOCK - side ring

1шт.

1

A19121

WHEEL - drive, 15.5 x 25 tires (8, 10, and 12 ply tires), Includes: Ref. 2 - 4

4шт.

2

A19122

RING

- side, wheel rim

1шт.

3

A19101

O-RING,6.6mm Thk x 590.55mm ID

SEAL - "O" ring, side ring

1шт.

DOWEL PINS USED A18271-SHORT AND A18272 LONG.

1шт.

4

A19123

RING

LOCK - side ring

1шт.

5

A20058

VALVE STEM

- Tire (Used with A17307 drive wheels)

4шт.

5

L11405

VALVE

- tire (Used with A19121 drive wheel)

4шт.

6

L11406

ADAPTER

- tire valve (Used with L11405 tire valve) Not illustrated

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - front rigid, complete

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear steering, complete

1шт.
