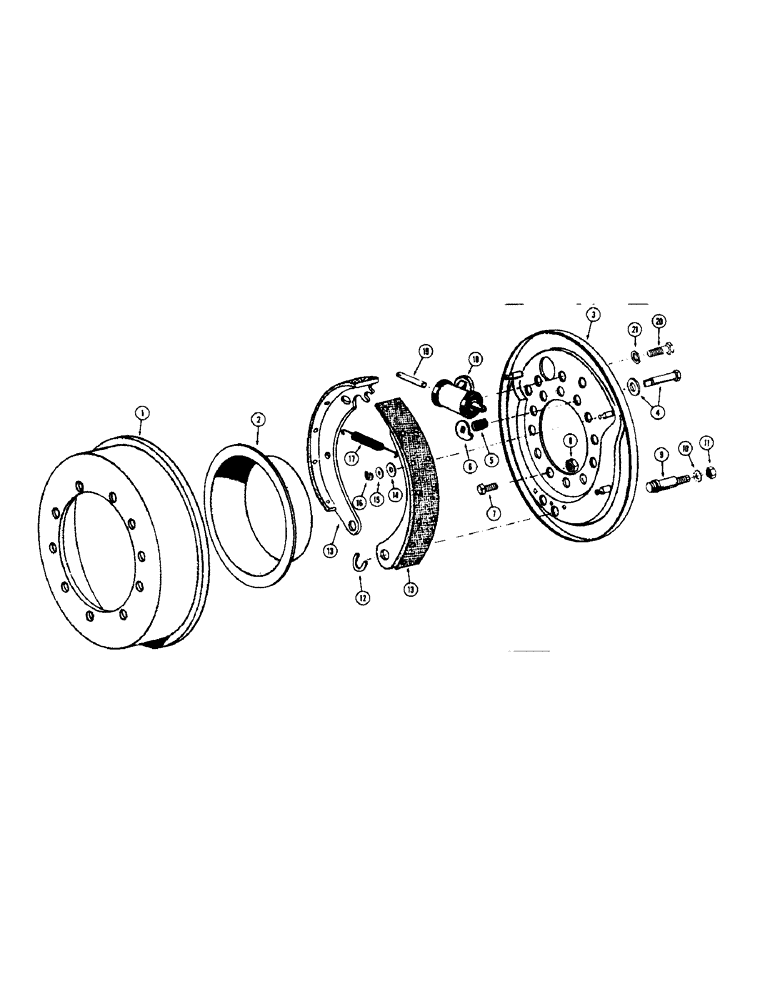

Запчасти Case W7 (242[1]) - BRAKE DRUM ASSEMBLY (07) - BRAKES

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - front, rigid, complete, Includes: Ref. 1 - 21, brake drum

1шт.

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - rear steering, complete, Includes: Ref. 1 - 21, brake drum

1шт.

1

A18256

DRUM - brake, assembly

2шт.

2

A18266

DEFLECTOR

- oil, wheel bearing, brake drum assembly

2шт.

A18269

PLATE ASSY.

BACKING PLATE ASSEMBLY - brake, Includes: Ref. 3 - 6, drum assembly

2шт.

3

NSS

NOT SOLD SEPARAT

BACKING PLATE - brake, drum assembly

1шт.

DOWEL PINS USED A18271-SHORT AND A18272 LONG.

1шт.

4

A12997

CAPTIVE WASHER SCREW

BOLT AND WASHER - cam actuating, brake drum assembly

2шт.

5

A13023

SPRING

- cam, brake drum assembly

2шт.

6

A13201

SHOE

CAM - brake shoe adjusting, drum assembly

2шт.

7

114-500

SCREW

BOLT - backing plate to axle housing (Front brake only),drum assembly

24шт.

7

A18220

SCREW

BOLT - backing plate to steering housing (Rear brake only), brake drum assembly

24шт.

8

131-11

NUT,9/16"-18, GB

LOCK, (Front brake only) drum assembly 9/16"-18, GB

24шт.

9

A13024

PIN,29.39mm OD x 68.25mm L

- anchor, brake, drum assembly

4шт.

10

193-15

LOCK WASHER,Ext Tooth, 3/4"

NUT - special, anchor pin, brake drum assembly

4шт.

12

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

CLIP - anchor pin, brake drum assembly

4шт.

13

A12998

X

SHOE ASSEMBLY - brake (Includes linings), drum assembly

4шт.

A13000

KIT

- lining, brake shoe (Includes 4 linings and rivets), drum assembly

1шт.

14

A13128

WASHER

- guide pin (Large), brake drum assembly

8шт.

15

A13129

WASHER

- guide pin (Small), brake drum assembly

8шт.

16

A13127

WASHER

CLIP - guide pin, brake drum assembly

8шт.

17

A13002

SPRING

- return, brake shoe, drum assembly

2шт.

18

A12985

CYLINDER

- brake, wheel (Parts list figure 242), drum assembly

2шт.

19

A12983

ROD

PUSH ROD - wheel cylinder, brake drum assembly

4шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Brake drum assembly Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

21

92-6

LOCK WASHER,3/8"

brake drum assembly 3/8"

4шт.

A12985

CYLINDER

- brake, wheel, drum assembly

4шт.
