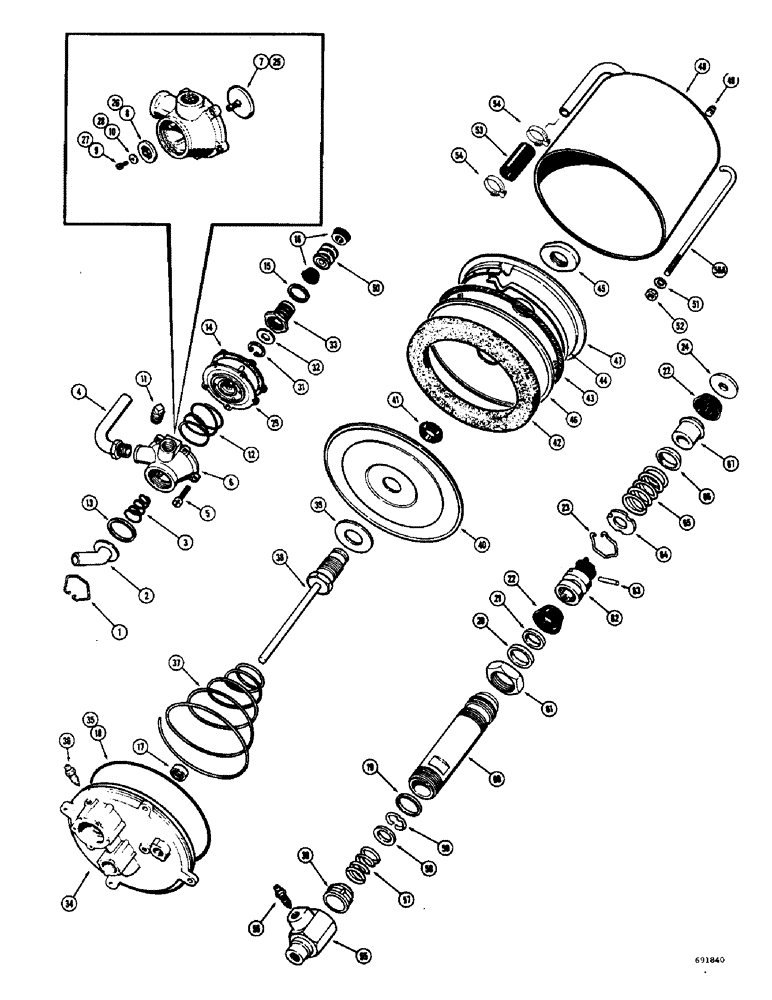

Запчасти Case W7 (174) - HYDROVAC CYLINDER (07) - BRAKES

A18520

FILTER ASSY

CYLINDER ASSEMBLY - Hydrovac, brake, Includes: Ref. 1 - 67

1шт.

1

A19664

SNAP RING - tube retaining

1шт.

2

A19665

TUBE AND COVER - valve

1шт.

3

A19667

SPRING

- poppet

1шт.

4

A19668

TUBE - relief valve

1шт.

5

A19669

SCREW

- special, valve body

5шт.

6

A19670

BODY

VALVE ASSEMBLY - relief, Includes: Ref. 7 - 10

1шт.

A19742

REPAIR KIT

KIT - repair, valve

1шт.

7

A19737

SEAL ASSEMBLY - valve

1шт.

8

A19739

SEAL - valve

1шт.

9

A19740

SCREW - valve seal

1шт.

10

A19741

WASHER - valve seal

1шт.

11

221-1003

PLUG - pipe, square head (3/8" NPT)

1шт.

12

A19671

SPRING - valve seat

1шт.

A19734

KIT

- repair, major

1шт.

A19736

KIT

- repair, minor, Includes: Ref. 13 - 30

1шт.

13

A19666

RING

GASKET - cover

1шт.

14

A19673

GASKET - valve body

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - fitting, valve

1шт.

16

NSS

NOT SOLD SEPARAT

CUP - hydraulic piston

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL - push rod

1шт.

18

A19695

SEAL

- "O" ring, cylinder

1шт.

19

A19703

GASKET

- end cap

1шт.

20

A19706

SEAL

- slave tube

1шт.

21

A19707

SEAL

- slave tube

1шт.

22

NSS

NOT SOLD SEPARAT

CUP - hydraulic piston

2шт.

23

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - push rod

1шт.

25

A19737

SEAL ASSEMBLY - valve (Includes in A19734 kit only)

1шт.

26

A19739

SEAL - valve (Included in A19734 kit only)

1шт.

27

A19740

SCREW - valve seal (Included in A19734 kit only)

1шт.

28

A19741

WASHER - valve seal (Included in A19734 kit only)

1шт.

29

A19738

DIAPHRAGM

AND PLATE ASSEMBLY - cylinder (Included in A19734 kit only)

1шт.

30

A19699

VALVE

ASSEMBLY - Hydrovac cylinder (Included in A19734 kit only)

1шт.

31

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

32

A19675

WASHER - piston stop

1шт.

33

A19676

FITTING - valve

1шт.

34

A19697

END PLATE ASSEMBLY - cylinder, Includes: Ref. 35

1шт.

35

A19695

SEAL

- "O" ring, cylinder

1шт.

36

A19696

SCREW

- bleeder

1шт.

37

A19693

VALVE SPRING

SPRING - piston return

1шт.

38

A19692

PISTON AND PUSH ROD - cylinder

1шт.

39

A19691

WASHER

- piston plate

1шт.

40

A19690

PLATE - piston, front

1шт.

A19735

KIT

- piston packing, Includes: Ref. 41 - 45

1шт.

41

A19689

REPAIR KIT

SEAL - piston rod

1шт.

42

NSS

NOT SOLD SEPARAT

PACKING - piston

1шт.

43

A19686

GASKET

FELT - piston

1шт.

44

A19685

RING

- packing

1шт.

45

A19683

NUT - piston retainer

1шт.

46

A19687

PLATE - piston, rear

1шт.

47

A19684

RETAINER - piston

1шт.

48

A19718

SHELL

HOUSING - cylinder

1шт.

49

A19680

PLUG

- filler

1шт.

50

A19679

PISTON ASSY.

PISTON - relay valve

1шт.

50a

A19682

BOLT

BOLT - retainer

4шт.

51

92-6

LOCK WASHER,3/8"

4шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

53

A19681

HOSE - vacuum tube

1шт.

54

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

55

A19698

CAP - end

1шт.

56

A19696

SCREW

- bleeder

1шт.

57

A19700

VALVE SPRING

SPRING - valve retainer

1шт.

58

A19701

WASHER - plug

1шт.

59

A19702

RING, SNAP

RING - snap

1шт.

60

A19704

TUBE

- slave cylinder

1шт.

61

A19705

NUT - slave tube

1шт.

62

A19709

PISTON ASSY.

PISTON ASSEMBLY - hydraulic

1шт.

63

A19710

AXLE PIN

PIN - valve plunger

1шт.

64

A19712

WASHER

- piston stop

1шт.

65

A19713

VALVE SPRING

SPRING - piston return

1шт.

66

A19714

SLEEVE - piston

1шт.

67

A19715

RETAINER

- seal

1шт.
