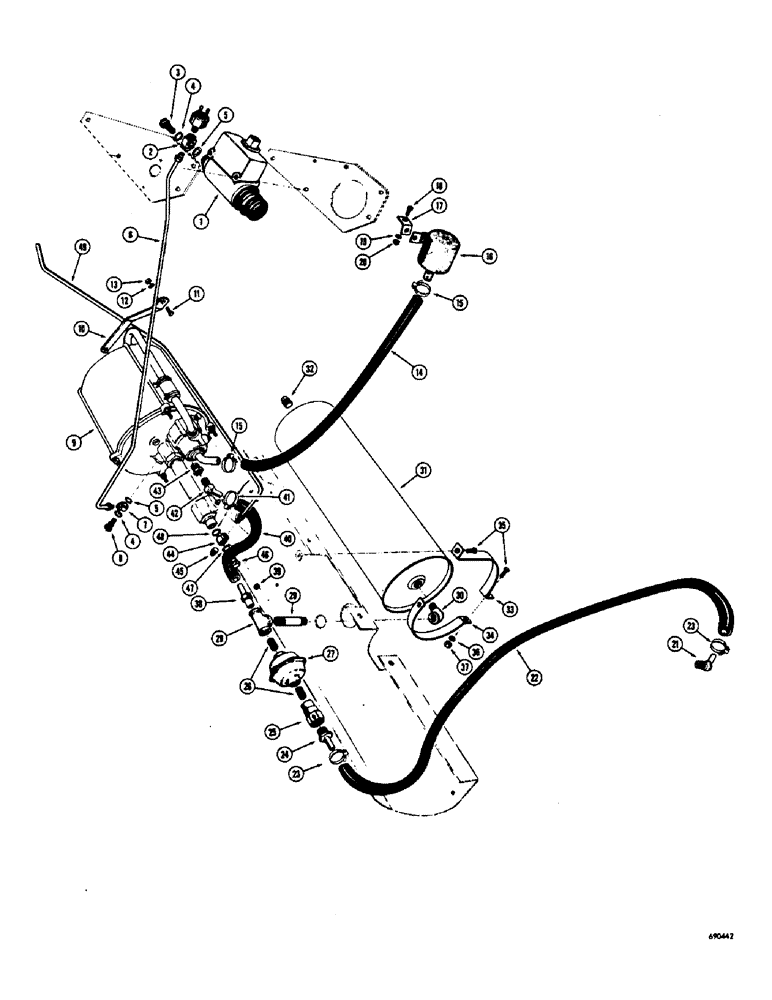

Запчасти Case W7 (172) - HYDROVAC BRAKE SYSTEM, GASOLINE ENGINE, HYDROVAC CYLINDER, RESERVE TANK & FILTERS (07) - BRAKES

1

A18525

CYLINDER

- master, brake (See figure 164 for related parts)

1шт.

2

A17386

FITTING

CONNECTOR - master cylinder to brake line

1шт.

3

A12864

BOLT

- special, Serial Range: connector-cylinder

1шт.

4

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connector to bolt (Small)

2шт.

5

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- connector to cylinder (Large)

2шт.

6

A19318

TUBE

- master cylinder to Hydrovac cylinder

1шт.

7

A18531

FITTING

CONNECTOR - tube to Hydrovac cylinder

1шт.

8

A12864

BOLT

- special, connector to Hydrovac cylinder

1шт.

9

A18520

FILTER ASSY

CYLINDER ASSEMBLY - Hydrovac (Parts list figure 174)

1шт.

10

A19323

BRACKET - mounting, Hydrovac cylinder

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

14

A19325

INTAKE AIR HOSE,19.00 mm ID x 559.00 mm, SAE 20R1

- Hydrovac to air cleaner 19.00 mm ID x 559.00 mm, SAE 20R1

1шт.

15

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

16

A18529

AIR CLEANER - Hydrovac (Parts list figure 178)

1шт.

17

A17325

BRACKET - mounting, air cleaner

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

25-104

NUT,1/4"-20, G5

2шт.

21

A27489

ELBOW UNION

ELBOW -, Serial Range: manifold-hose

1шт.

22

A19328

HOSE - elbow to check valve

1шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

24

A18512

FLOAT

NIPPLE - hose to check valve

1шт.

25

A18513

LOCK VALVE

VALVE ASSEMBLY - check (Parts list figure 178)

1шт.

26

221-1185

FITTING

NIPPLE - pipe (1/2" NPT)

2шт.

27

A18532

CLEANER

FILTER - vacuum pump (Parts list figure 178)

1шт.

28

221-1424

TEE,Pipe, 1/2" NPT

- pipe (1/2" NPT)

1шт.

29

221-1198

SUN VISOR

NIPPLE - pipe (1/2" NPT)

1шт.

30

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 90 degrees (1/2" NPT)

1шт.

31

A18514

TANK

- reserve, vacuum

1шт.

32

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

1шт.

33

A19326

SUPPORT

STRAP - mounting, upper

2шт.

34

A19327

SUPPORT

STRAP - mounting, lower

2шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

38

A18515

SUN VISOR

NIPPLE -, Serial Range: tee-hose

1шт.

39

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

40

A18551

HOSE,0.50" ID x 14.00", SAE 40R3A

0.50" ID x 14.00", SAE 40R3H - Reserve tank to Hydrovac

1шт.

41

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

42

A18509

FITTING

ELBOW - inlet, 45 degrees (Special)

1шт.

43

221-1056

BUSHING

- reducer

1шт.

44

A12863

SUN VISOR

CONNECTOR - cylinder outlet to brake tube

1шт.

45

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

46

A12864

BOLT

-, Serial Range: connector-cylinder

1шт.

47

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET -, Serial Range: connector-bolt

1шт.

48

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

-, Serial Range: connector-cylinder

1шт.

49

A19324

TUBE

- Hydrovac cylinder to brake line tee

1шт.
