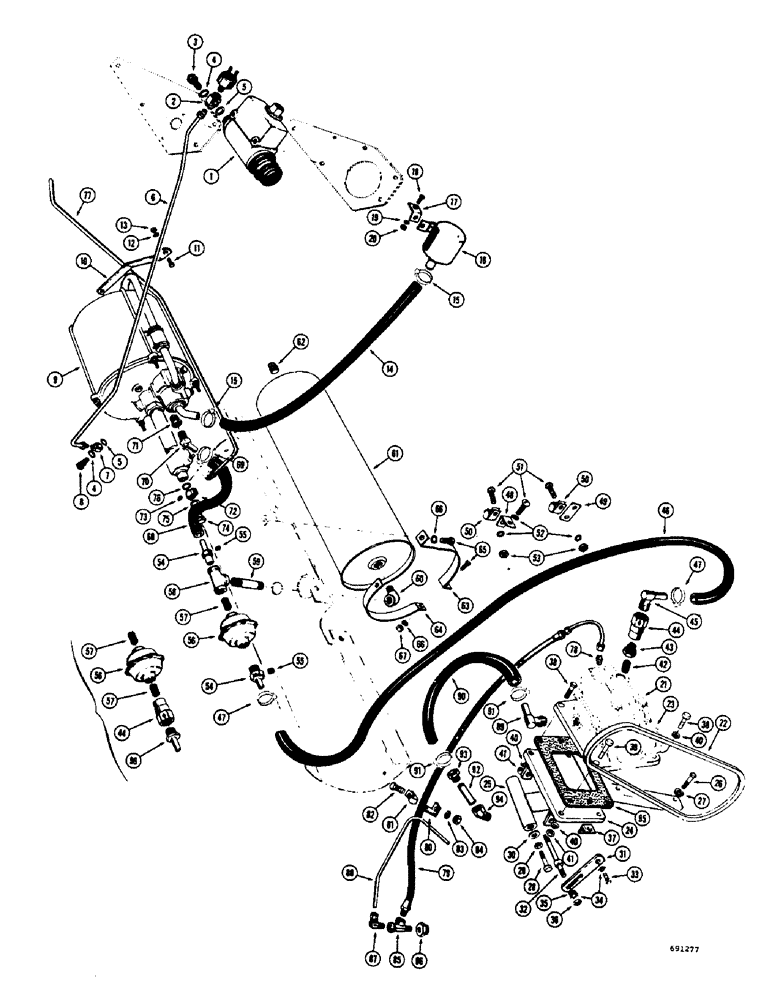

Запчасти Case W7 (168) - HYDROVAC BRAKE SYSTEM, DIESEL ENGINE, HYDROVAC PUMP, CYLINDERS, RESERVE TANK & FILTERS (07) - BRAKES

1

A18525

CYLINDER

- master, brake (See figure 164 for related parts)

1шт.

2

A17386

FITTING

CONNECTOR - master cylinder to brake line

1шт.

3

A12864

BOLT

- special, Serial Range: connector-cylinder

1шт.

4

33260

GASKET

- connector to bolt (Small)

2шт.

5

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- connector to cylinder (Large)

2шт.

6

A19318

TUBE

- master cylinder to Hydrovac cylinder

1шт.

7

A18531

FITTING

CONNECTOR - tube to Hydrovac cylinder

1шт.

8

A12864

BOLT

- special, connector to Hydrovac cylinder

1шт.

9

A18520

FILTER ASSY

CYLINDER ASSEMBLY - Hydrovac (Parts list figure 174)

1шт.

10

A19323

BRACKET - mounting, Hydrovac cylinder

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

14

A19325

INTAKE AIR HOSE,19.00 mm ID x 559.00 mm, SAE 20R1

- Hydrovac to air cleaner 19.00 mm ID x 559.00 mm, SAE 20R1

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

16

A18529

AIR CLEANER - Hydrovac (Parts list figure 178)

1шт.

17

A17325

BRACKET - mounting, air cleaner

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

25-104

NUT,1/4"-20, G5

2шт.

21

A18534

PUMP

VACUUM PUMP - Hydrovac (Parts list figure 178)

1шт.

22

L11403

BELT,36.50" L

Vacuum pump drive 36.50" L

1шт.

23

A18536

PULLEY

- drive, vacuum pump

1шт.

24

A19580

BASE - pump mounting (Late production)

1шт.

24

A18538

BASE - pump mounting (Early production)

1шт.

25

A18542

BRACKET - pump mounting

1шт.

26

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-7

LOCK WASHER,7/16"

2шт.

28

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

31

A18545

STRAP - pump adjustment

1шт.

32

A18546

BOLT (SPREADER)

BOLT - adjustment strap

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

37

A19497

ANGLE - mounting

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Late production)

3шт.

39

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Late production) Hex, 3/8"-16 x 1 3/4", G5

1шт.

39

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

(Early production) Hex, 7/16"-14 x 1 3/4", G5

4шт.

40

92-6

LOCK WASHER,3/8"

late production 3/8"

4шт.

40

92-7

LOCK WASHER,7/16"

early production 7/16"

4шт.

41

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) Late production

3шт.

41

25-107

NUT,7/16"-14, G5

- hex. 7/16" - 14 NC

4шт.

42

221-1185

FITTING

NIPPLE - pipe (1/2" NPT)

1шт.

43

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer

1шт.

44

A18513

LOCK VALVE

VALVE ASSEMBLY - check (Parts list figure 178)

1шт.

45

A17852

ELBOW - outlet, vacuum pump

1шт.

46

A18533

HOSE

-, Serial Range: pump-Hydrovac

1шт.

47

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

48

A17325

BRACKET - hose support

1шт.

49

A19330

STRAP - hose support

1шт.

50

A27256

CLAMP

-, Serial Range: hose-support

2шт.

51

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

52

92-6

LOCK WASHER,3/8"

3шт.

53

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

54

A18515

SUN VISOR

NIPPLE -, Serial Range: hose-filter

2шт.

55

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

2шт.

56

A18532

CLEANER

FILTER - vacuum pump (Parts list figure 178)

1шт.

57

221-1185

FITTING

NIPPLE - pipe (1/2" NPT)

1-2шт.

58

221-1424

TEE,Pipe, 1/2" NPT

- pipe (1/2" NPT)

1шт.

59

221-1198

SUN VISOR

NIPPLE - pipe (1/2" NPT)

1шт.

60

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street (1/2" NPT)

1шт.

61

A18514

TANK

- reserve, vacuum

1шт.

62

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

1шт.

63

A19326

SUPPORT

STRAP - mounting, upper

2шт.

64

A19327

SUPPORT

STRAP - mounting, lower

2шт.

65

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

66

92-6

LOCK WASHER,3/8"

4шт.

67

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

68

A18551

HOSE,0.50" ID x 14.00", SAE 40R3A

0.50" ID x 14.00", SAE 40R3H - Reserve tank to Hydrovac

1шт.

69

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

70

A18509

FITTING

ELBOW - inlet, 45 degrees (Special)

1шт.

71

221-1056

BUSHING

- reducer

1шт.

72

A12863

SUN VISOR

CONNECTOR - cylinder outlet to brake tube

1шт.

73

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

74

A12864

BOLT

-, Serial Range: connector-cylinder

1шт.

75

NLS

NO LONGER SERVICED

-, Serial Range: connector-bolt

1шт.

76

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

-, Serial Range: connector-cylinder

1шт.

77

A19324

TUBE

- Hydrovac cylinder to brake line tee

1шт.

78

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - straight, flex tube (Includes sleeve and nut)

1шт.

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting (1/4" tube O.D.)

1шт.

222-102

SLEEVE,1/4" Tube

1шт.

79

A18547

HOSE

- lubrication, vacuum pump (27" long)

1шт.

80

L12266

BRACKET

- lubrication hose

1шт.

81

49774

CLAMP

- hose

1шт.

82

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

83

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, Shakeproof (1/4")

1шт.

84

25-104

NUT,1/4"-20, G5

1шт.

85

A19332

TEE

- special (1/4" NPT)

1шт.

86

221-1053

BUSHING

- reducer

1шт.

87

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- 90 degrees, flex tube (Include sleeve and nut)

1шт.

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting (1/4" tube O.D.)

1шт.

222-102

SLEEVE,1/4" Tube

1шт.

88

A19331

TUBE - lubrication, injector pump

1шт.

89

A27489

ELBOW UNION

ELBOW -, Serial Range: pump-hose

1шт.

90

L11662

HOSE

- oil return, Serial Range: pump-engine

1шт.

91

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

92

L10265

TUBE - connector, hose to elbow 0.5 mm OD x 2 mm L

1шт.

93

222-1005

NUT - tube (1/2")

1шт.

94

222-1035

ELBOW - male, 45 degrees

1шт.

95

A18535

GASKET

- vacuum pump mounting

1шт.

96

A18512

FLOAT

NIPPLE - hose, early production

1шт.
