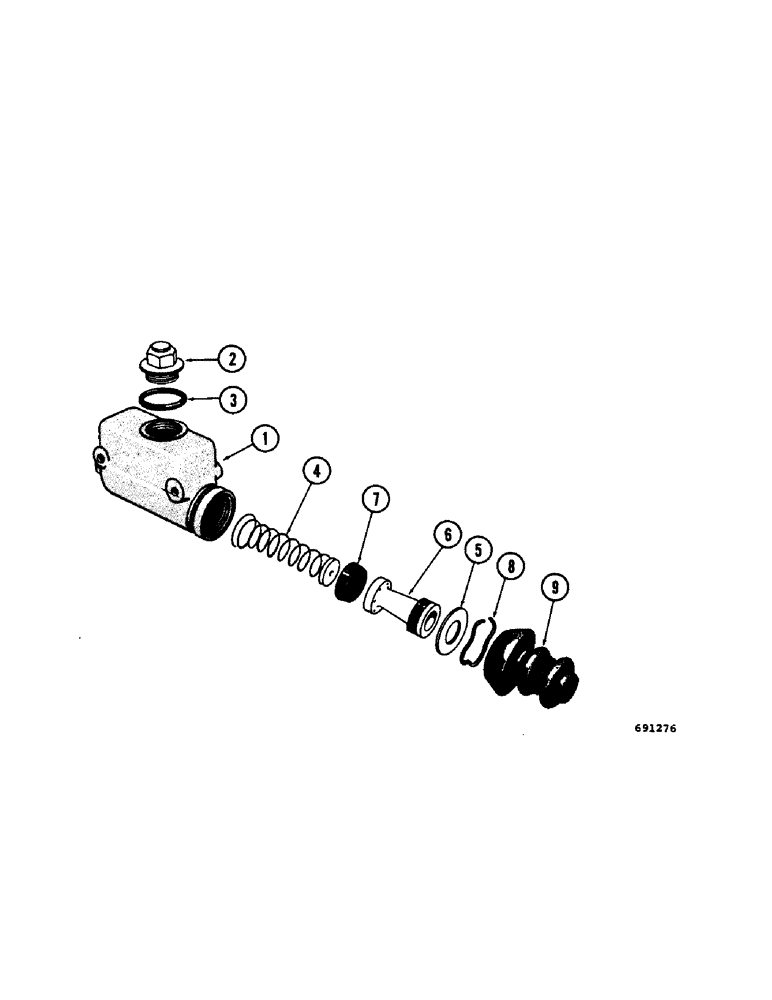

Запчасти Case W7 (164[1]) - A18525 MASTER CYLINDER HYDROVAC BRAKE (07) - BRAKES

A18525

CYLINDER

- brake master, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

2

A19754

X

CAP - filler

1шт.

3

A19755

GASKET

- filler cap

1шт.

4

A19756

VALVE SPRING

SPRING - piston return

1шт.

5

A19759

PLATE

- stop

1шт.

A19762

KIT

- cylinder repair, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

CUP - piston

1шт.

8

NSS

NOT SOLD SEPARAT

LOCK WIRE - stop plate

1шт.

9

A18527

BELLOWS

BOOT - protective

1шт.
