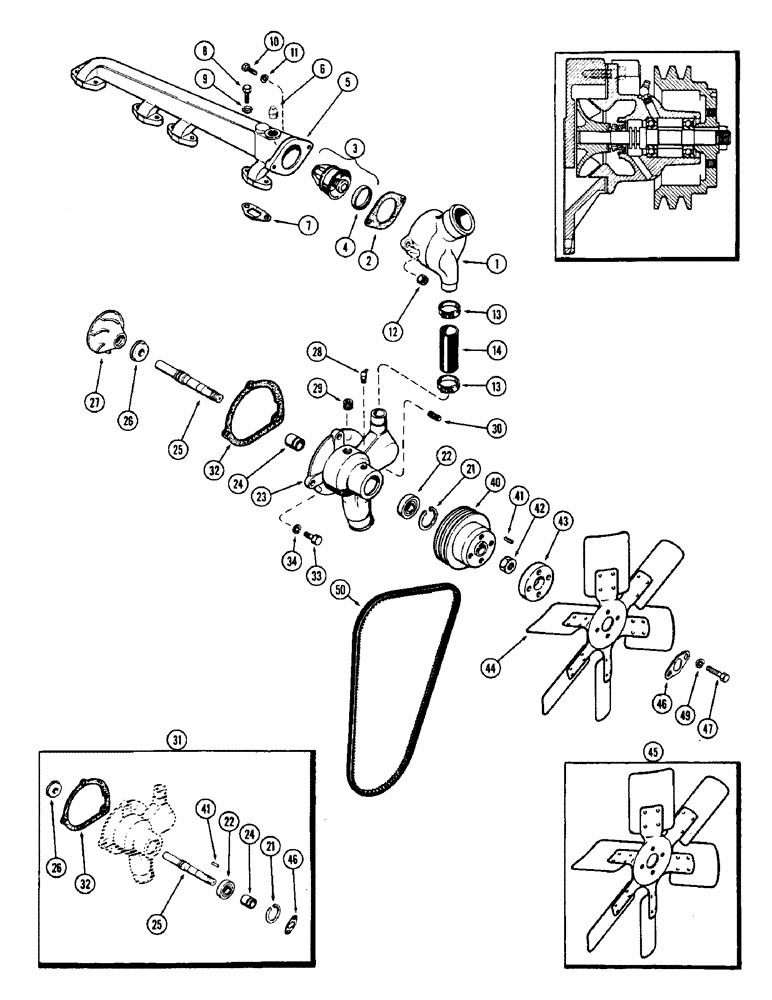

Запчасти Case W7 (006) - WATER PUMP AND ATTACHING PARTS, 301 DIESEL AND 284 SPARK IGNITION ENG. (02) - ENGINE

1

A20374

HOUSING

- thermostat

1шт.

2

A28113

GASKET

- thermostat housing

1шт.

3

A28114

THERMOSTAT

ASSY. - 180 degrees, Includes: Ref. 4

1шт.

4

A30954

GASKET

- thermostat

1шт.

5

A26332

MANIFOLD

- water

1шт.

6

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - 3/8" P.T., sq. hd.

1шт.

7

A27905

GASKET

- water manifold

4шт.

8

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

8шт.

10

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.F. hex.

2шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

14

A28115

HOSE

- water by-pass (1-1/4" I.D. x 3-3/4")

1шт.

A21459

PUMP

ASSY. - water, engine (Not illust.), Includes: Ref. 21 - 30

1шт.

21

A27150

RING

- snap, bearing retainer

1шт.

22

A27152

BALL BEARING,19.99mm ID x 52mm OD x 19mm W

BEARING - water pump shaft

1шт.

23

A11496

BODY

- water pump

1шт.

24

A27900

BUSHING

- water pump body

1шт.

25

A23636

SHAFT

- water pump

1шт.

26

A24995

SEAL

- water pump

1шт.

27

A26334

IMPELLER

- water pump

1шт.

28

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - safety vent lube, 1/8" P.T. x 67-1/2 degrees

1шт.

29

221-1843

PLUG

- 3/8" P.T. sckt. hd.

1шт.

30

A7391

STUD

- generator adjusting strap

1шт.

31

A24181

KIT, FIRST AID

KIT - water pump repair

1шт.

32

A57596

GASKET

- water pump body

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

34

92-6

LOCK WASHER,3/8"

3шт.

40

A21460

PULLEY

- fan & water pump

1шт.

41

A21075

KEY

-, Serial Range: pulley-shaft

1шт.

42

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex., jam (Used w/generator)

1шт.

42

A14888

NUT

- fan spacer (Used w/alternator) (5/8" N.F. hex., spec.)

1шт.

43

A14887

SPACER - fan (Used w/alternator)

1шт.

44

A17509

FAN

ASSY. - pusher type

1шт.

45

L13551

FAN

ASSY. - suction type

1шт.

46

A26707

LOCK

- water pump shaft nut

1шт.

47

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

47

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. (Used w/A14887 spacer)

4шт.

49

92-6

LOCK WASHER,3/8"

4шт.

50

A17490

BELT

- drive (Set of 2) (Used w/generator)

1шт.

50

A22608

SET OF BELTS,52.00" L

SET OF 2 BELTS , Drive (Used w/alt.) (Gas only) 52.00" L

1шт.

50

A21457

SET OF BELTS,50.50" L

SET OF 2 BELTS , Drive (Used w/alt.) (Diesel only) 50.50" L

1шт.
