Запчасти Case W7 (162) - PARKING BRAKE LEVER AND LINKAGE, CLUTCH CONTROL VALVE (07) - BRAKES

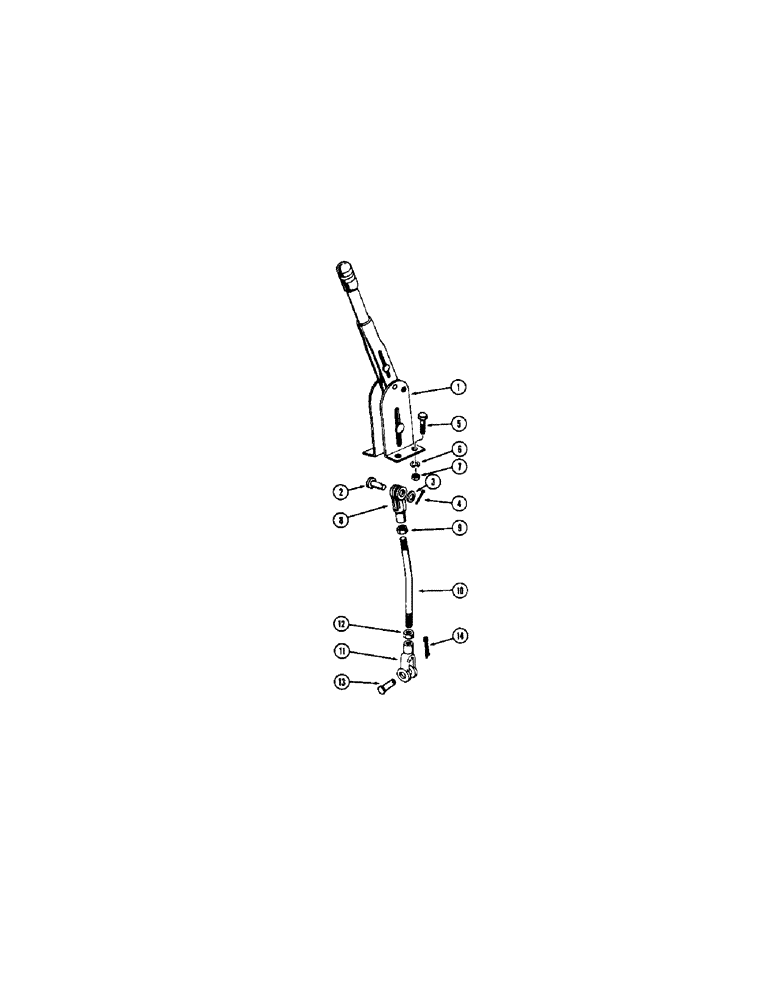

Схема запчастей Case W7 - (162) - PARKING BRAKE LEVER AND LINKAGE, CLUTCH CONTROL VALVE (07) - BRAKES

Артикул

Название

Примечание

Количество

A17214

LEVER

ASSEMBLY - hand brake, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - hand brake

1шт.

2

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - clevis

1шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

4

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

8

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjusting, rod to lever

1шт.

9

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

10

A18763

ROD

- hand brake lever

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjusting, rod to brake arm

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

14

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

A18891

LOCK VALVE

VALVE ASSEMBLY - clutch control

1шт.

Выбрано товаров: 16
