Запчасти Case W7 (162[1]) - CLUTCH CONTROL VALVE (07) - BRAKES

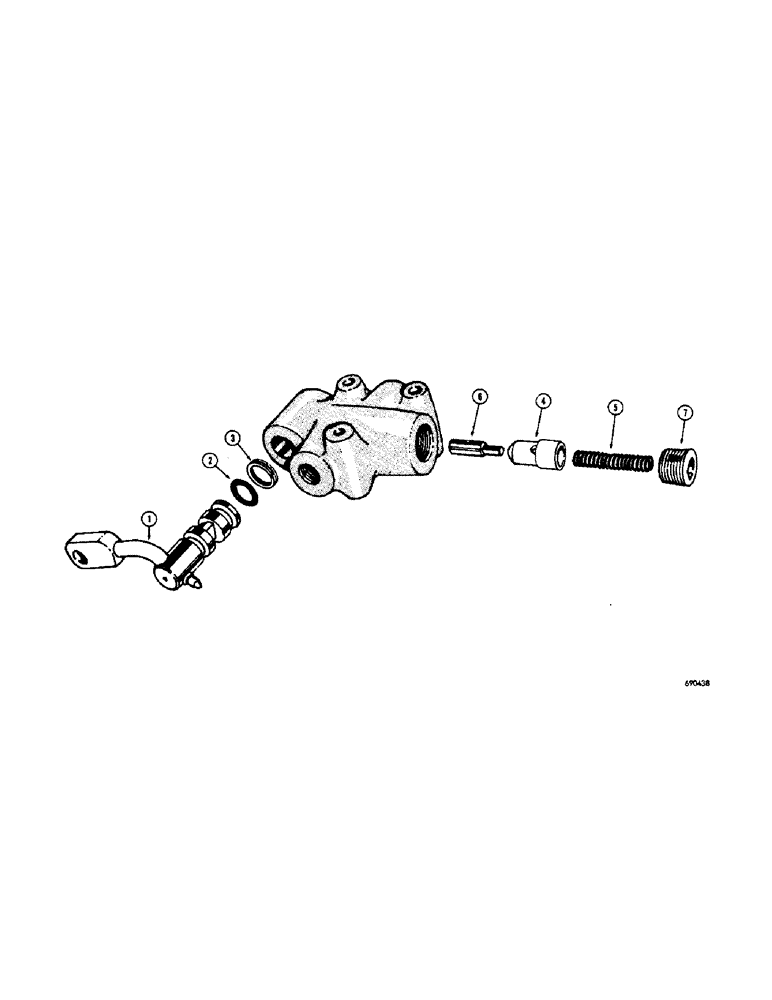

Схема запчастей Case W7 - (162[1]) - CLUTCH CONTROL VALVE (07) - BRAKES

Артикул

Название

Примечание

Количество

A18891

LOCK VALVE

VALVE ASSEMBLY - clutch control

1шт.

1

A19487

LEVER

HANDLE AND CAM - control valve

1шт.

L30994

KIT

- repair, control valve, Includes: Ref. 2 - 5

1шт.

2

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, cam

2шт.

3

A19485

RING

WASHER - back-up, seal

2шт.

4

A19483

VALVE

POPPET - check valve

1шт.

5

L30995

VALVE SPRING

SPRING - check valve poppet

1шт.

6

A19486

TAPPET

FOLLOWER - cam

1шт.

7

A19488

PLUG

- pipe, special

1шт.

Выбрано товаров: 9
