Запчасти Case W7 (156) - HYDRAULIC BRAKE SYSTEM, BRAKE PEDALS AND CLUTCH CONTROL EARLY PRODUCTION (07) - BRAKES

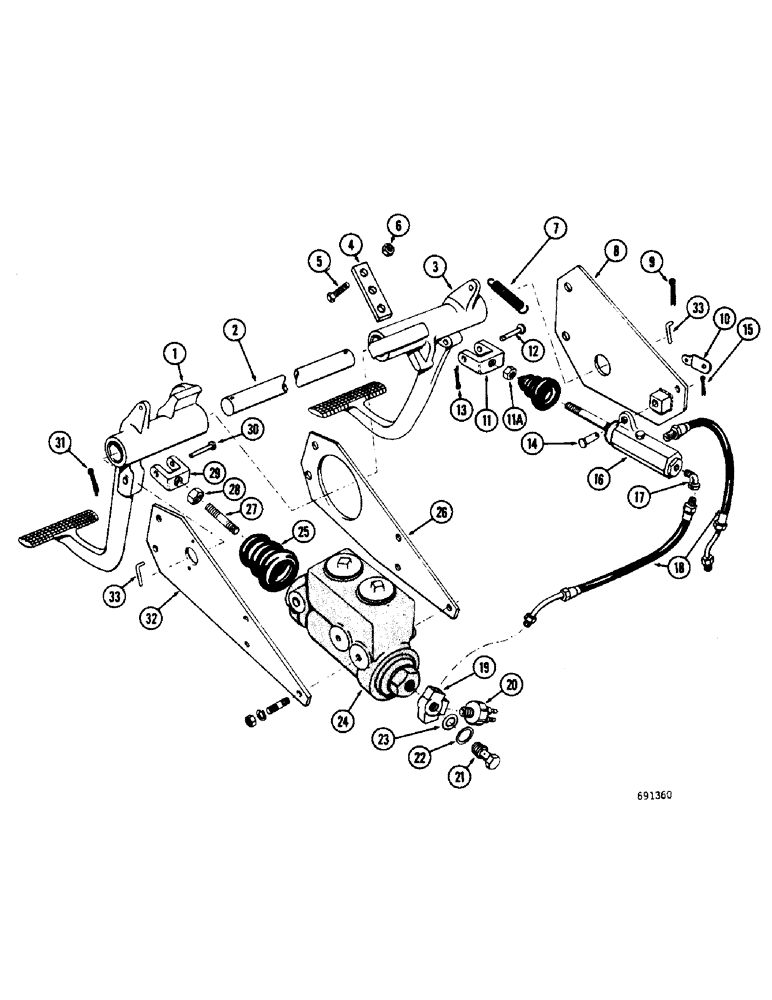

Схема запчастей Case W7 - (156) - HYDRAULIC BRAKE SYSTEM, BRAKE PEDALS AND CLUTCH CONTROL EARLY PRODUCTION (07) - BRAKES

Артикул

Название

Примечание

Количество

1

A17382

MUFFLER

PEDAL - R.H. brake

1шт.

A30845

BUSHING

- pedal

1шт.

2

A17384

SHAFT - cross, brake pedal

1шт.

3

A17383

PEDAL - L.H. brake

1шт.

A30845

BUSHING

- pedal

1шт.

17-828

BOLT - square head (1/2" - 20 NC x 1-3/4")

1шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex (1/2"-13 NC)

1шт.

4

A17402

BRACKET - stop, brake pedal

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

7

A10436

VALVE SPRING

SPRING - return, brake pedal

2шт.

8

A17375

PLATE - mounting, brake pedal and clutch control valve

1шт.

9

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), , Cross shaft 3/16" x 1 1/4"

1шт.

10

A26953

CLIP

- pedal return spring

2шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

92-5

LOCK WASHER,5/16"

2шт.

11

A12442

YOKE - clutch control valve

1шт.

11a

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex., (7/16" - 20 NF)

1шт.

12

A27094

PIN

- yoke

1шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

14

A17387

PIN - mounting, clutch control valve

1шт.

15

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - clutch control (Order A19337 attachment)

1шт.

17

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

18

A17401

HOSE - master cylinder and clutch control valve

2шт.

19

A17386

FITTING

- outlet, master cylinder

1шт.

20

A12491

SWITCH

ASSY - brake, stop light

1шт.

21

A12864

BOLT

- fitting, master cylinder

1шт.

22

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - small, outlet fitting bolt

1шт.

23

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- large, outlet fitting bolt

1шт.

24

A13205

CYLINDER

ASSEMBLY - master (See parts list figure 164)

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

1шт.

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

92-6

LOCK WASHER,3/8"

3шт.

25

A12434

BOOT

- master cylinder rod

1шт.

26

A17378

PLATE - mounting, master cylinder

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

92-8

LOCK WASHER,1/2"

6шт.

27

A12438

ROD - master cylinder

1шт.

28

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex. (7/16" - 20 NF)

1шт.

29

A12442

YOKE - master cylinder

1шт.

30

A27094

PIN

- yoke

1шт.

31

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

32

A17379

PLATE - mounting, master cylinder and brake pedal

1шт.

33

A27275

PIN - lock, cross shaft

1шт.

Выбрано товаров: 48
