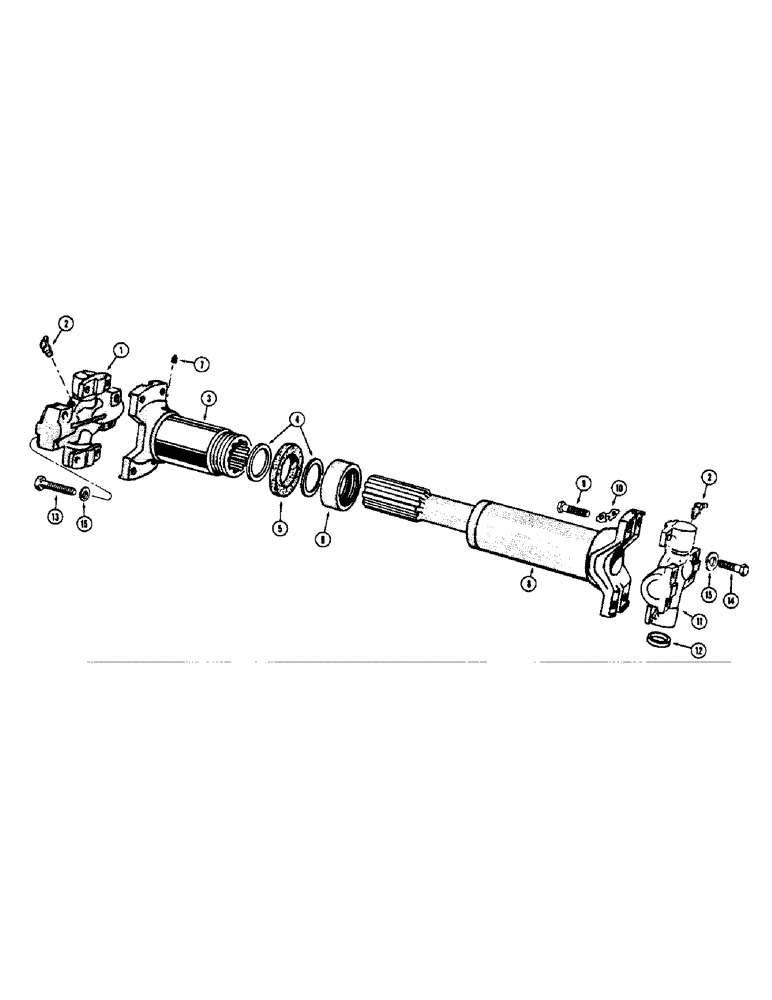

Запчасти Case W7 (244) - A17301 REAR AXLE DRIVE SHAFT, A17300 FRONT AXLE DRIVE SHAFT, A17296 TRANS. DRIVE SHAFT (06) - POWER TRAIN

A17301

DRIVE SHAFT - rear axle, Includes: Ref. 1 - 12

1шт.

1

A18382

SPIDER

KIT - repair, spider and bearing (Transmission end)

1шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degrees (1/4" - 28 NF taper)

2шт.

3

A18381

YOKE

- shaft, transmission end

1шт.

4

A18387

WASHER

- seal retainer

2шт.

5

A18390

WASHER

SEAL - dust, felt

1шт.

6

A18388

CAP

- dust seal

1шт.

7

A18392

PLUG - pipe (Special)

1шт.

8

A18386

SHAFT

TUBE AND YOKE - shaft, differential end

1шт.

9

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT -, Serial Range: spider-shaft

8шт.

10

A17297

PLATE

- bolt lock

4шт.

11

A18383

KIT

- repair, spider and bearing (Differential end)

1шт.

12

A18389

WASHER

- cork, spider

8шт.

13

A17298

BOLT,Hex, 3/8" x 1 11/16"

- spider to transmission yoke (Long)

4шт.

14

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - spider to differential yoke (Short)

4шт.

15

92-6

LOCK WASHER,3/8"

8шт.

A17300

SHAFT

DRIVE SHAFT - front axle

1шт.
