Запчасти Case W7 (244[1]) - A17300 FRONT AXLE DRIVE SHAFT (06) - POWER TRAIN

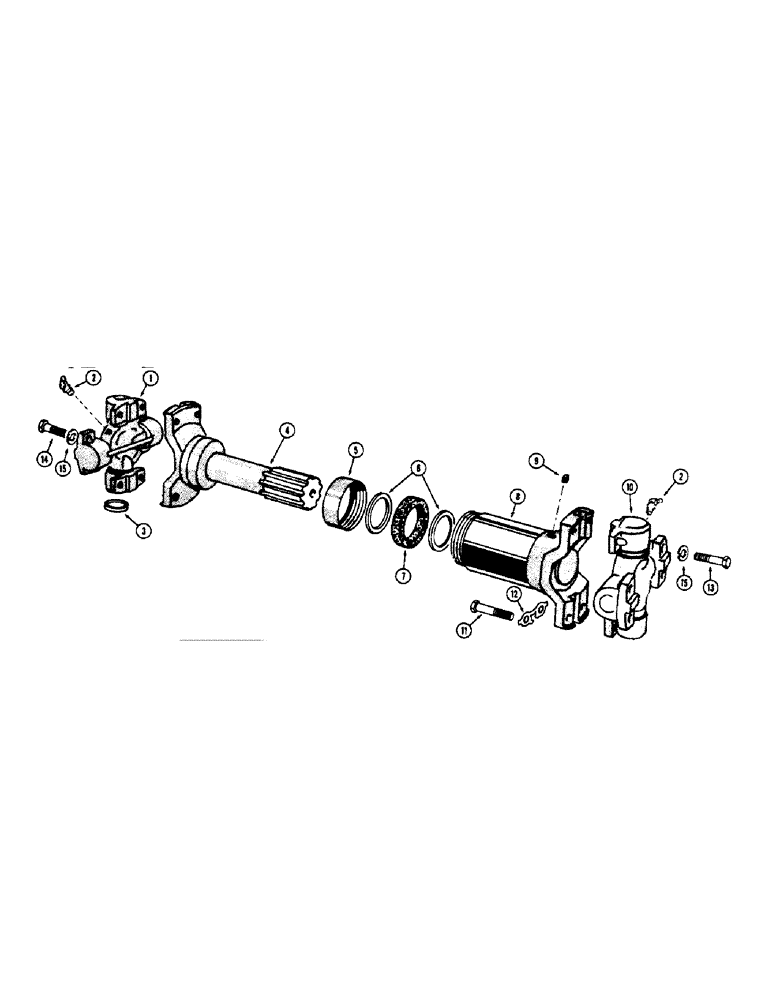

Схема запчастей Case W7 - (244[1]) - A17300 FRONT AXLE DRIVE SHAFT (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A17300

SHAFT

DRIVE SHAFT - front axle, Includes: Ref. 1 - 12

1шт.

1

A18383

KIT

- repair, spider and bearing (Differential end), front axle drive shaft

1шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degrees (1/4" - 28 NF taper), front axle drive shaft

2шт.

3

A18389

WASHER

- cork, spider, front axle drive shaft

8шт.

4

A18385

TUBE

AND YOKE - shaft, differential end, front axle drive shaft

1шт.

5

A18388

CAP

- dust seal, front axle drive shaft

1шт.

6

A18387

WASHER

- seal retainer, front axle drive shaft

2шт.

7

A18390

WASHER

SEAL - dust, felt, front axle drive shaft

1шт.

8

A18381

YOKE

- shaft, transmission end, front axle drive shaft

1шт.

9

A18392

PLUG - pipe (Special), front axle drive shaft

1шт.

10

A18382

SPIDER

KIT - repair, spider and bearing (Transmission end), front axle drive shaft

1шт.

11

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - spider to shaft, front axle drive shaft

8шт.

12

A17297

PLATE

- bolt lock, front axle drive shaft

4шт.

13

A17298

BOLT,Hex, 3/8" x 1 11/16"

- spider to transmission yoke (Long), front axle drive shaft

4шт.

14

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - spider to differential yoke (Short), front axle drive shaft

4шт.

15

92-6

LOCK WASHER,3/8"

front axle drive shaft 3/8"

8шт.

Выбрано товаров: 16
