Запчасти Case W7 (238) - DIFFERENTIAL, LATE PRODUCTION (06) - POWER TRAIN

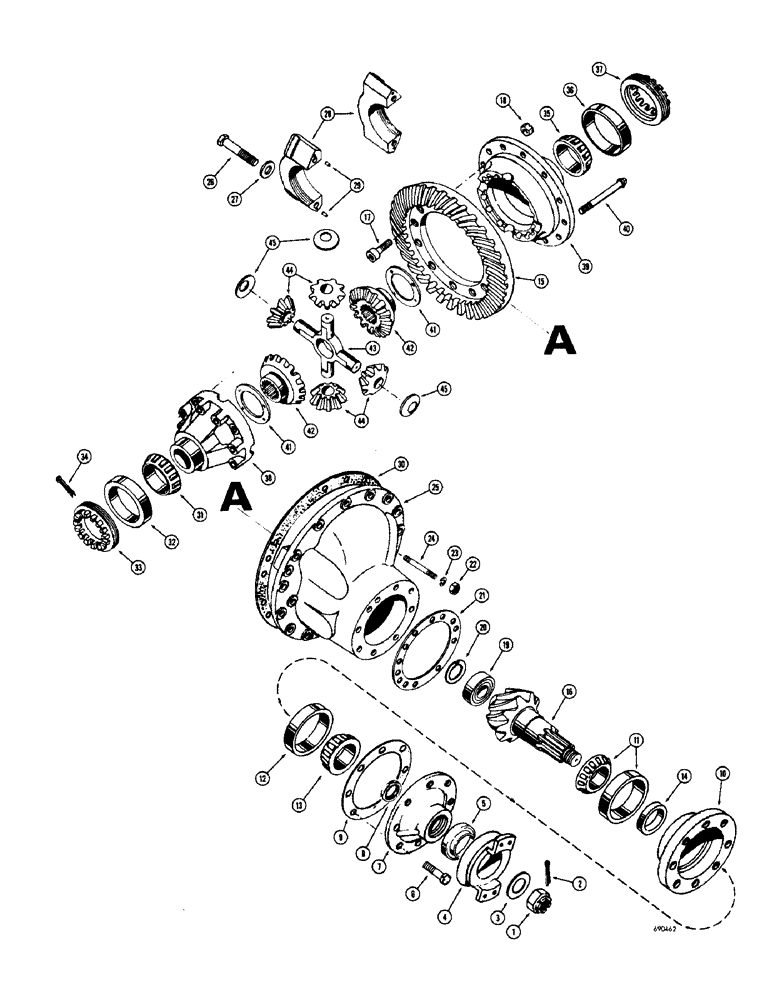

Схема запчастей Case W7 - (238) - DIFFERENTIAL, LATE PRODUCTION (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L11614

AXLE

ASSEMBLY - front rigid, complete (PR - 60 HX - 10), Includes: Ref. 1 - 45

1шт.

L11613

AXLE

ASSEMBLY - rear steering, complete (PS - 50 HX - 21), Includes: Ref. 1 - 45

1шт.

1

L30731

SLOTTED NUT

- slotted hex., yoke to pinion shaft

1шт.

3

A13124

WASHER

- special

1шт.

A18187

YOKE

ASSEMBLY - drive shaft, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

A18189

SLINGER

- oil

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

A18184

COVER

ASSEMBLY - pinion shaft, max. O.D. 6.184", if O.D. of 6.75" use L35933, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

8

A18185

OIL SEAL

- oil, pinion shaft

1шт.

9

A18190

GASKET

-, Serial Range: cover-cage

1шт.

L30333

CAGE

ASSEMBLY - pinion shaft bearing, Includes: Ref. 10 - 14

1шт.

Another cage assy used (not a sub) L35925

1шт.

10

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing, Includes: Ref. 11 - 13

1шт.

11

L30395

BEARING

SET - inner cone and cup

1шт.

12

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, outer

1шт.

13

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, outer

1шт.

14

A18358

SPACER

- bearing, .172 thick

1шт.

14

A18359

SPACER

- bearing, .173" thick

1шт.

14

A18360

SPACER

- bearing, .174" thick

1шт.

14

A18361

SPACER

- bearing, .175" thick

1шт.

14

A18362

RING

SPACER - bearing, .176" thick

1шт.

14

A18363

SPACER

- bearing, .177" thick

1шт.

14

A18364

SPACER

- bearing, .188" thick

1шт.

14

A18365

SPACER

- bearing, .189" thick

1шт.

14

A18366

SPACER

- bearing, .195" thick

1шт.

14

A18367

SPACER

- bearing, .201" thick

1шт.

A18200

GEAR

SET - ring and pinion, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

A16437

BOLT

- ring, Serial Range: gear-differential

12шт.

18

129-282

SLOTTED NUT

- hex., slotted (1/2" - 20 NF)

12шт.

19

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - inner, drive pinion (Ball type)

1шт.

20

A18199

SNAP RING,#106, Ext

RING - snap, , bearing #106, Ext

1шт.

21

A18197

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

21

A18198

SHIM,.005" Thk

Bearing cage .005" Thk

1шт.

22

129-530

NUT,7/16"-20, G8

10шт.

23

92-7

LOCK WASHER,7/16"

10шт.

24

A18207

STUD

- carrier to axle housing

10шт.

A18168

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

26

A18171

CAP

BOLT - special

4шт.

27

L30737

WASHER

- special

4шт.

28

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

29

NSS

NOT SOLD SEPARAT

DOWEL - cap

4шт.

30

A18210

X

GASKET - carrier to axle housing

1шт.

31

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing, tapered roller type (R.H. rear - L.H. front)

1шт.

32

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, tapered roller type (R.H. rear - L.H. front)

1шт.

33

A18194

RING

- bearing adjusting (R.H. rear L.H. front)

1шт.

34

A18196

HARDWARE

PIN - cotter, special

2шт.

35

A18173

ROLLER BEARING

CONE - bearing, tapered roller type (L.H. rear - R.H. front)

1шт.

36

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, tapered roller type (L.H. rear - R.H. front)

1шт.

37

A18195

RING

- bearing adjusting (L.H. rear - R.H. front)

1шт.

L34022

TRANSMISSION

CASE AND GEAR ASSEMBLY - differential, Includes: Ref. 38 - 45

1шт.

38

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

39

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

40

L30668

SCREW

BOLT - special, case halves

8шт.

41

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear

2шт.

42

A18179

GEAR

- differential, side

2шт.

43

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

44

A18175

PINION

GEAR - differential, pinion

4шт.

45

A18176

DISC

WASHER - thrust

4шт.

2

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

Выбрано товаров: 64
