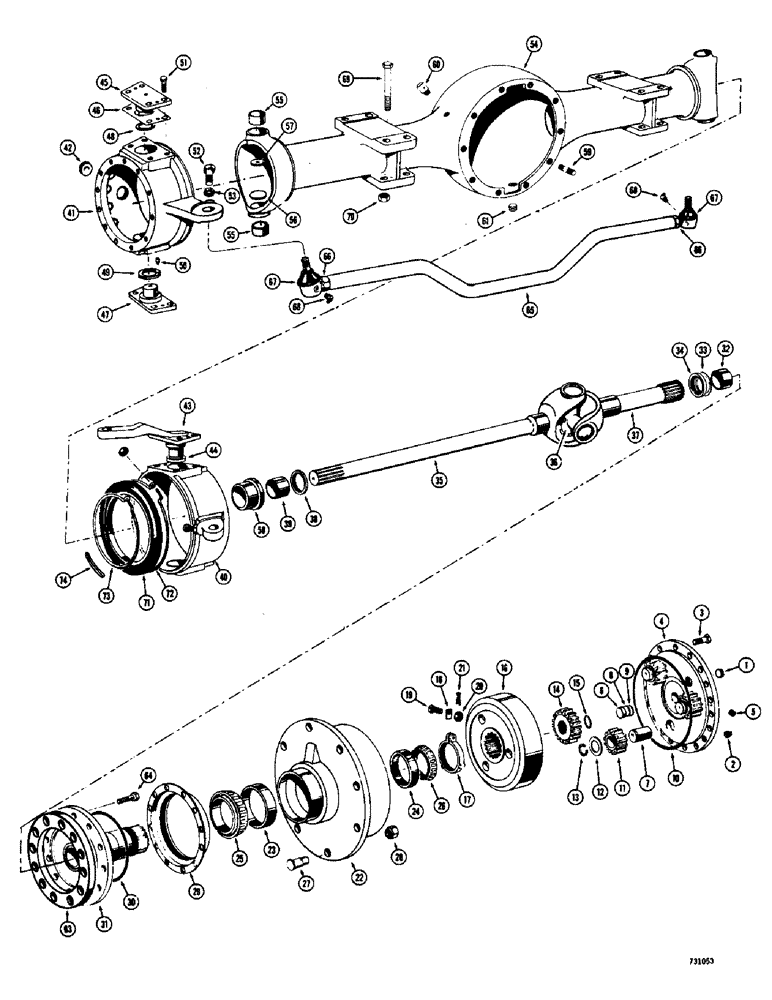

Запчасти Case W7 (226) - STEERING AXLE AND PLANETARY, EARLY PRODUCTION (06) - POWER TRAIN

A17305

AXLE ASSEMBLY - rear steering, complete (Order L11613 axle for service) Parts list figure 230, Includes: Ref. 1 - 68

1шт.

1

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- filler, square socket head (3/4" NPT)

2шт.

2

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

2шт.

3

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

-, Serial Range: planetary-hub

32шт.

A18244

COVER

SPIDER ASSEMBLY - planetary, Includes: Ref. 4 - 7

2шт.

4

NSS

NOT SOLD SEPARAT

SPIDER - planetary pinion

1шт.

5

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex. socket head (3/8" - 16 NC x 5/8")

3шт.

6

A18247

PIN

BUTTON - thrust, axle shaft

1шт.

7

A18246

SHAFT

- pinion

3шт.

8

L30663

SHIM - thrust button

1шт.

9

L30664

SHIM - thrust button

1шт.

10

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

SEAL - "O" ring, spider to wheel hub

2шт.

11

A18258

GEAR, PLANETARY

GEAR - pinion, planetary

6шт.

12

A18236

WASHER

- thrust, planetary pinion

6шт.

13

A18242

RING

SNAP RING - pinion, Serial Range: gear-shaft

6шт.

14

A18259

GEAR

- sun, planetary

2шт.

15

A18241

RING

SNAP RING - sun gear to axle shaft

2шт.

16

A18260

GEAR WHEEL

GEAR RING - planetary

2шт.

17

A18232

LOCK NUT

ADJUSTING NUT - hub bearing

2шт.

18

A18248

LOCK

- adjusting ring

2шт.

19

A18211

BOLT (SPREADER)

BOLT - adjusting ring

2шт.

20

29-136

SLOTTED NUT,3/8"-24, G5

NUT - hex., slotted (3/8" - 24 NF)

2шт.

21

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

A19789

HUB ASSY.

HUB ASSEMBLY - drive wheel, Includes: Ref. 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

23

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - bearing, inner

1шт.

24

F9803

BEARING CUP

CUP - bearing, outer

1шт.

25

L30658

ROLLER BEARING

CONE - bearing, inner hub

2шт.

26

F9842

BEARING CONE

CONE - bearing, outer hub

2шт.

27

A13112

STUD

STUD - wheel hub

16шт.

28

A12522

WHEEL NUT

- drive, Serial Range: wheel-hub

16шт.

29

L30659

OIL SEAL

AND RETAINER - bearing

2шт.

30

A18219

O-RING

SEAL - "O" ring, spindle

2шт.

L30656

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 31 - 34

2шт.

31

NSS

NOT SOLD SEPARAT

SPINDLE - wheel

1шт.

32

A18231

BUSHING

- spindle

1шт.

33

A18238

WASHER

- oil seal

1шт.

34

L34011

OIL SEAL

- oil, spindle

1шт.

A18255

JOINT

SHAFT ASSEMBLY - rear axle and universal, Includes: Ref. 35 - 37

2шт.

35

A18396

SHAFT

- axle, inner

1шт.

36

A18398

SPIDER ,U-JOINT

KIT - repair, universal joint

1шт.

37

A18397

SHAFT

- axle, outer

1шт.

38

L34011

OIL SEAL

- oil, axle shaft (Inner)

2шт.

39

A18209

BEARING

BUSHING - axle shaft

2шт.

40

A18262

HOUSING

- steering joint, L.H.

1шт.

41

A18263

HOUSING

- steering joint, R.H.

1шт.

42

221-28

PLUG,Sq Soc, 1 1/2"-11 1/2, NTPF

- pipe, square socket head (1/2" NPT)

2шт.

A18215

ARM

ASSEMBLY - steering, L.H., Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

ARM - steering

1шт.

44

A18217

SLEEVE

BUSHING - steering arm

1шт.

45

A18257

CAP

- steering housing, R.H. upper

1шт.

46

A18252

SHIM,.003" Thk

Steering cap and arm .003" Thk

1шт.

A18253

SHIM,.005" Thk

Steering cap and arm .005" Thk

1шт.

A18254

SHIM,.020" Thk

Steering cap and arm .020" Thk

1шт.

47

A18251

CAP

- steering housing, lower

2шт.

48

A18235

WASHER

- thrust, upper steering

2шт.

49

A18233

WASHER

- thrust, lower steering

2шт.

50

138-89

LOCK PIN,3/16" x 9/16", Slotted

PIN, 3/16" x 9/16", Slotted

2шт.

51

113-500

X

HHCS - 9/16" - 12 NC x 1-3/8"

16шт.

52

113-408

X

HHCS - 1/2" - 13 NC x 2" (Steering housing stop)

2шт.

53

A18222

NUT

- lock, housing stop bolt

2шт.

A18201

X

HOUSING ASSEMBLY - differential and axle (Order 1-L30660 axle housing and 2-L30662 mounting brackets for service, parts list figure 232), Includes: Ref. 54 - 59

1шт.

54

NSS

NOT SOLD SEPARAT

HOUSING - differential and axle

1шт.

55

A18205

BUSHING

- pivot, steering housing

4шт.

56

A18203

PLUG

- lower, steering bushing

2шт.

57

A18204

PLUG

- upper, steering bushing

2шт.

58

A18206

RETAINER

- oil seal, axle shaft

2шт.

59

A18207

STUD

-, Serial Range: differential-housing

10шт.

60

A12928

BREATHER

- air, axle housing

1шт.

61

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, square socket head (3/4" NPT)

1шт.

63

A19792

PLATE ASSY.

PLATE - spacer, Serial Range: spindle-housing

2шт.

64

A18220

SCREW

BOLT - spacer to steering housing

24шт.

65

A18212

ROD

TIE ROD - steering axle

1шт.

66

A18214

LOCK NUT

- lock, tie rod end

2шт.

67

L30543

BALL JOINT

BALL END - tie rod

2шт.

THE BOOT ON THE BALL END IS PART A31186.

1шт.

68

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

69

116-701

BOLT

HHCS - 3/4" - 16 NF x 8-1/2"

8шт.

70

131-186

LOCK NUT,3/4"-16, GB

NUT - hex., lock (3/4" - 16 NF)

8шт.

71

A18261

BOOT

- steering housing

2шт.

72

A18264

CLAMP

- inner, boot

2шт.

73

A18265

CLAMP

- outer, boot

2шт.

74

A18243

SLEEVE

- boot clamp

4шт.
