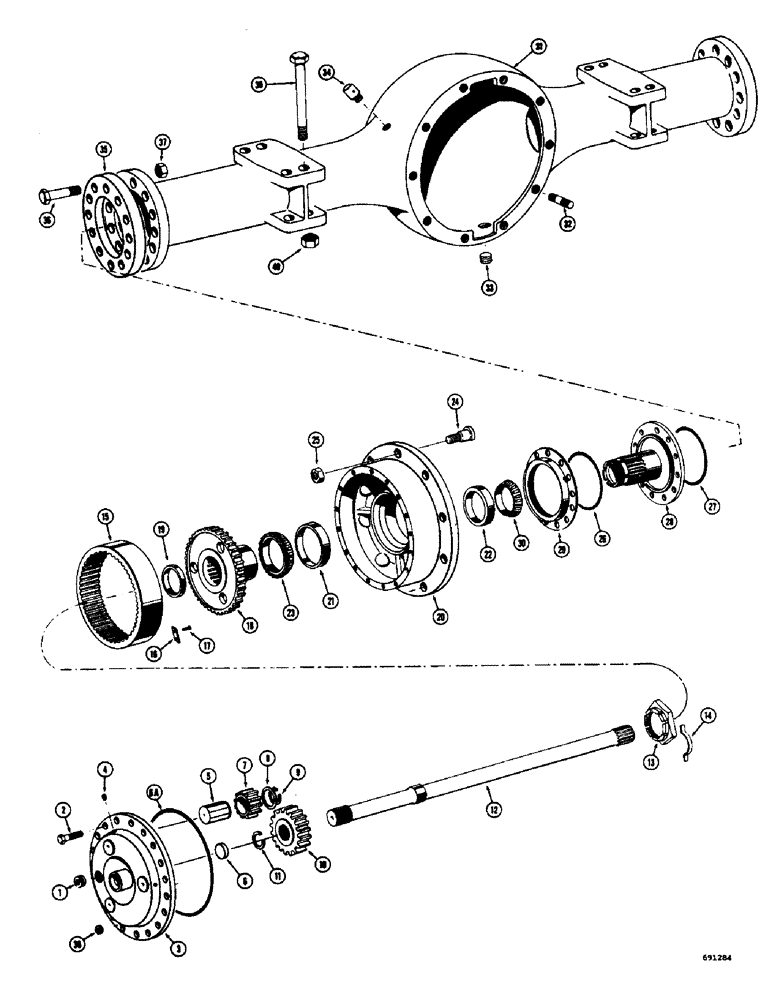

Запчасти Case W7 (222) - RIGID AXLE AND PLANETARY, EARLY PRODUCTION (06) - POWER TRAIN

A17304

AXLE ASSEMBLY - front rigid, complete (PR 60-HX2 or PR 60-HX4) Order L11614 for service, parts list figure 224, Includes: Ref. 1 - 38

1шт.

1

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- filler, square socket head (3/4" NPT)

2шт.

2

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

-, Serial Range: planetary-hub

32шт.

A18244

COVER

SPIDER ASSEMBLY - planetary pinion, Includes: Ref. 3 - 6

2шт.

3

NSS

NOT SOLD SEPARAT

SPIDER - planetary pinion

1шт.

4

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex. socket head (3/8" - 16 NC x 5/8")

3шт.

5

A18246

SHAFT

- pinion

3шт.

6

A18247

PIN

PLATE - thrust, axle shaft

1шт.

6a

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

SEAL - "O" ring, spider to hub

2шт.

7

A18258

GEAR, PLANETARY

GEAR - pinion, planetary

6шт.

8

A18236

WASHER

- thrust, planetary pinion

6шт.

9

A18242

RING

SNAP RING - pinion, Serial Range: gear-shaft

6шт.

10

A18259

GEAR

- sun, planetary

2шт.

11

A18241

RING

SNAP RING - sun gear to axle shaft

2шт.

12

A18289

SHAFT - axle

2шт.

13

A18284

NUT

- adjusting, hub bearing

2шт.

14

A18288

RETAINER

LOCK - adjusting nut

4шт.

15

A18290

GEAR

- ring, planetary

2шт.

16

A18282

PAWL

LOCK - ring, Serial Range: gear-hub

8шт.

17

G49000

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Drilled

- lock, special

16шт.

A18285

HUB

ASSEMBLY - ring gear, Includes: Ref. 18 and 19

2шт.

18

NSS

NOT SOLD SEPARAT

HUB - ring gear

1шт.

19

A18287

SLEEVE

- ring gear hub

1шт.

A19787

HUB ASSEMBLY - wheel, Includes: Ref. 20 - 22

2шт.

20

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

21

A28184

BEARING CUP

CUP - bearing, outer

1шт.

22

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - bearing, inner

1шт.

23

A18281

ROLLER BEARING

CONE - bearing, outer hub

2шт.

24

A13112

STUD

STUD - wheel hub

16шт.

25

A12522

WHEEL NUT

- drive, Serial Range: wheel-hub

16шт.

26

A18219

O-RING

SEAL - "O" ring, spindle (Outer)

2шт.

27

A18280

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

SEAL - "O" ring, spindle (Inner)

2шт.

L30734

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 28 - 30

2шт.

28

NSS

NOT SOLD SEPARAT

SPINDLE - wheel

1шт.

REF#28 THERE IS A OIL SEAL THAT COMES WITH SPINDLE- WHEEL,SEAL IS PART L34011.

1шт.

29

A18230

SEAL RETAINER

OIL SEAL - hub bearing (For PR 60-HX2 axle)

1шт.

29

L30659

OIL SEAL

OIL SEAL - hub bearing (For PR 60-HX4 axle)

1шт.

30

L30658

ROLLER BEARING

CONE - bearing, inner hub

1шт.

A18275

X

HOUSING ASSEMBLY - rigid axle (Order 1-L30736 axle housing and 2-L30662 mounting brackets for service, parts list figure 224), Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

32

A18207

STUD

-, Serial Range: differential-housing

10шт.

33

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, square socket head (3/4" NPT)

1шт.

34

A12928

BREATHER

- air, housing

1шт.

35

A19792

PLATE ASSY.

PLATE - spacer, Serial Range: spindle-housing

2шт.

36

114-500

SCREW

BOLT - special, spindle to housing

24шт.

37

131-11

NUT,9/16"-18, GB

LOCK, 9/16"-18, GB

24шт.

38

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

2шт.

39

116-701

BOLT

HHCS - 3/4" - 16 NF x 8-1/2"

8шт.

40

131-186

LOCK NUT,3/4"-16, GB

NUT - hex., lock (3/4" - 16 NF)

8шт.
