Запчасти Case W7 (220) - TORQUE CONVRTR REGLTING VLV,CONVERTER SN. 84700E & AFT, CONVERTER SN 6744C-84700E, PRIOR TO SN 6744C (06) - POWER TRAIN

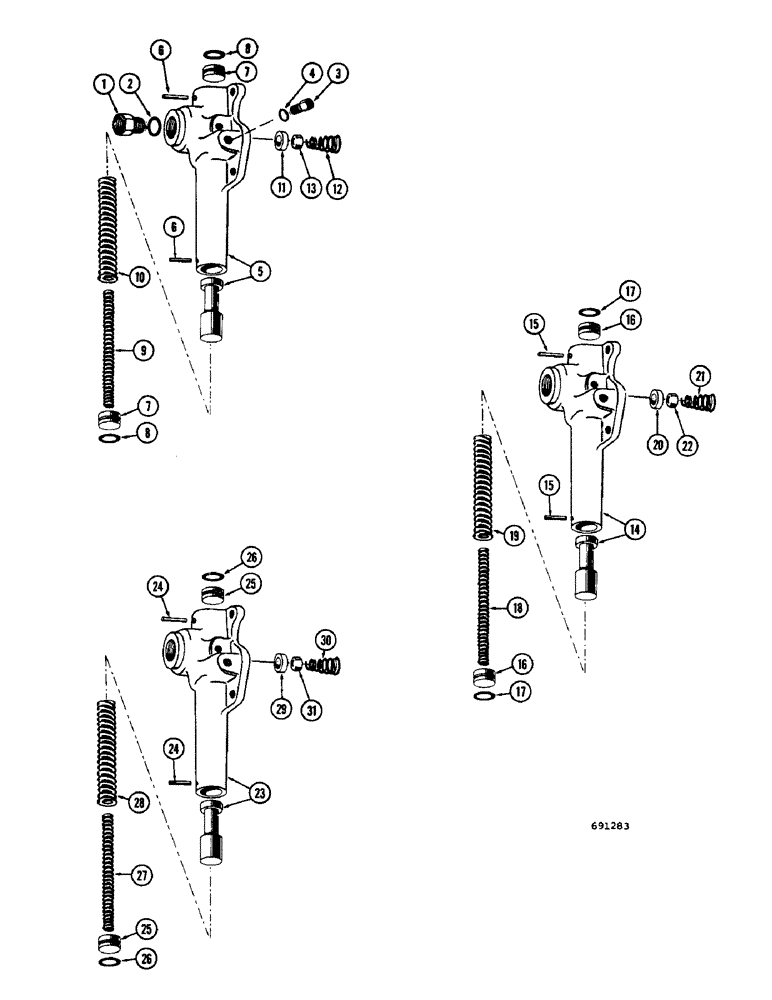

Схема запчастей Case W7 - (220) - TORQUE CONVRTR REGLTING VLV,CONVERTER SN. 84700E & AFT, CONVERTER SN 6744C-84700E, PRIOR TO SN 6744C (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L30323

KIT

VALVE ASSEMBLY - pressure regulating, converter, Includes: Ref. 1 - 13

1шт.

1

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - 3/4" "O" ring to 3/4" NPT, Includes: Ref. 2

1шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

3

218-5093

ADAPTER,#8 MALE ORB (ORING) TO # 6 FEMALE NPT (PIPE)

ADAPTER - 1/2" "O" ring to 3/8" NPT, Includes: Ref. 4

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

NSS

NOT SOLD SEPARAT

VALVE - pressure regulating, converter, Includes: Ref. 5 - 13

1шт.

5

NSS

NOT SOLD SEPARAT

BODY AND PISTON - valve

1шт.

6

A18037

ROLL PIN

PIN - roll, valve stop

2шт.

7

A18038

STOP

- valve

2шт.

8

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

SEAL - "O" ring, valve stop

2шт.

9

L30048

VALVE SPRING

SPRING - regulating valve, inner

1шт.

10

L30049

VALVE SPRING

SPRING - regulating valve, outer

1шт.

11

A18002

SEAT

- safety valve

1шт.

12

A18004

SPRING

- safety valve

1шт.

13

A18003

PLUNGER

- safety valve

1шт.

L30050

VALVE

ASSEMBLY - pressure regulating, converter serial no., (Order L30323 valve assembly for service), Includes: Ref. 14 - 22, Serial Range: 6744C-84700E

1шт.

14

NSS

NOT SOLD SEPARAT

BODY AND PISTON - valve, converter serial no., Serial Range: 6744C-84700E

1шт.

15

A18037

ROLL PIN

PIN - roll, valve stop, converter serial no., Serial Range: 6744C-84700E

2шт.

16

A18038

STOP

- valve, converter serial no., Serial Range: 6744C-84700E

2шт.

17

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

SEAL - "O" ring, valve stop, converter serial no., Serial Range: 6744C-84700E

2шт.

18

L30048

VALVE SPRING

SPRING - regulating valve, inner, converter serial no. 6, Serial Range: 6744C-84700E

1шт.

19

L30049

VALVE SPRING

SPRING - regulating valve, outer, converter serial no., Serial Range: 6744C-84700E

1шт.

20

A18002

SEAT

- safety valve, converter serial no., Serial Range: 6744C-84700E

1шт.

21

A18004

SPRING

- safety valve, converter serial no., Serial Range: 6744C-84700E

1шт.

22

A18003

PLUNGER

- safety valve, converter serial no., Serial Range: 6744C-84700E

1шт.

A18005

VALVE

ASSEMBLY - pressure regulating, converter (Order L30323 valve assembly for service), Includes: Ref. 23 - 31, Serial Range: -6744C

1шт.

23

NSS

NOT SOLD SEPARAT

BODY AND PISTON - valve, Serial Range: -6744C

1шт.

24

A18037

ROLL PIN

PIN - roll, valve stop, Serial Range: -6744C

2шт.

25

A18038

STOP

- valve, Serial Range: -6744C

2шт.

26

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

SEAL - "O" ring, valve stop, Serial Range: -6744C

2шт.

27

A18040

VALVE SPRING

SPRING - regulating valve, inner, Serial Range: -6744C

1шт.

28

A18041

VALVE SPRING

SPRING - regulating valve, Serial Range: -6744C

1шт.

29

A18002

SEAT

- safety valve, Serial Range: -6744C

1шт.

30

A18004

SPRING

- safety valve, Serial Range: -6744C

1шт.

31

A18003

PLUNGER

- safety valve, Serial Range: -6744C

1шт.

Выбрано товаров: 35
