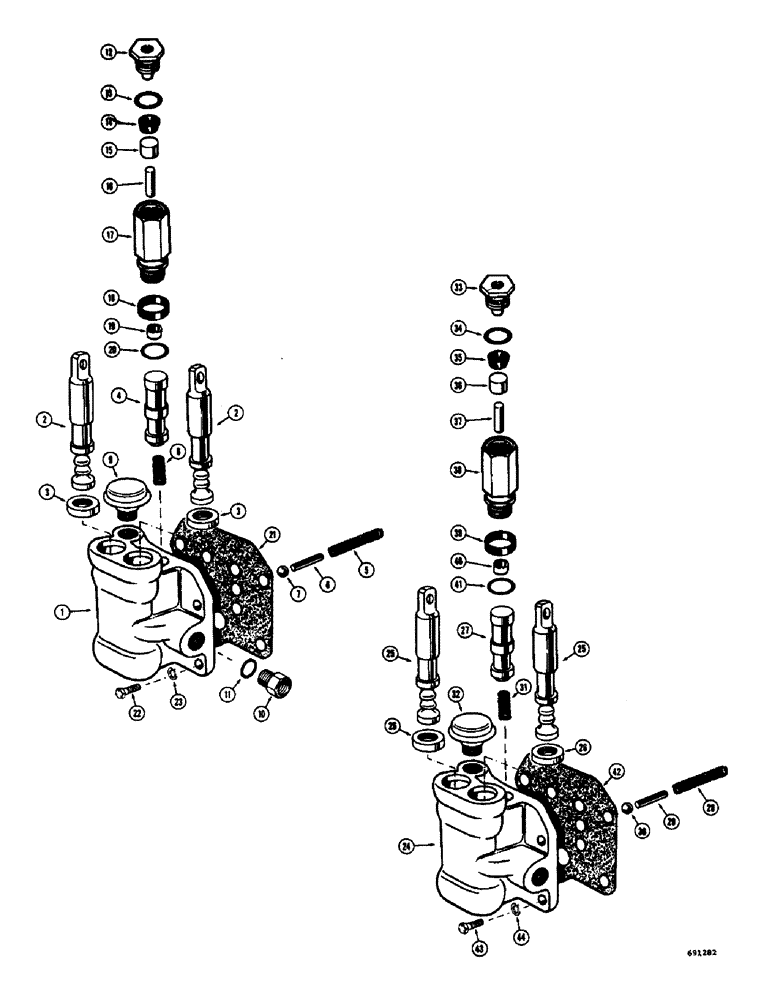

Запчасти Case W7 (212) - TRANSMISSN,L30322 TRANS CONTRL VLV,TRANS SN 84857E & AFT,L30040 TRANS CONTRL VLV,BEF TRANS SN 84857E (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - complete (See figure 204), Includes: Ref. 1 - 23

1шт.

L30322

REPAIR KIT

VALVE - transmission control, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

A40203

SPOOL - valve, manual control

2шт.

3

A17949

OIL SEAL

- wiper, valve spool

2шт.

4

A40204

SPOOL

- valve, slave

1шт.

5

A17954

VALVE SPRING

SPRING - detent

2шт.

6

A17959

AXLE PIN

PIN - detent stop

2шт.

7

211-11

BALL,3/8" Dia

- detent, . steel 3/8" Dia

2шт.

8

A17946

VALVE SPRING

SPRING - control valve

1шт.

9

A17947

BREATHER

- air, transmission

1шт.

10

218-5093

ADAPTER,#8 MALE ORB (ORING) TO # 6 FEMALE NPT (PIPE)

ADAPTER - tube to valve, Includes: Ref. 11

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

L30041

PISTON ASSY.

CYLINDER ASSEMBLY - slave piston, Includes: Ref. 13 - 20

1шт.

12

A17944

PLUG

- stop

1шт.

13

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring, stop plug

1шт.

14

A17942

CUP

- piston

1шт.

15

A17941

SPACER

- piston cup

1шт.

16

A17940

AXLE PIN

PIN - push, piston

1шт.

17

A17943

HOUSING

- piston

1шт.

18

L30394

SEAL,23.02mm ID x 27mm OD x 6.35mm Thk

- piston

1шт.

19

A17945

GASKET

SEAL - oil, push pin

1шт.

20

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, piston housing

1шт.

21

A17951

GASKET

- mounting, valve

1шт.

22

13-718

SCREW,Hex, 7/16" - 14 x 1 1/8", Gr 5

BOLT, Hex, 7/16"-14 x 1 1/8", G5, Full Thd

4шт.

23

92-7

LOCK WASHER,7/16"

4шт.

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - complete (See figure 204), Includes: Ref. 24 - 44, Serial Range: -84857E

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - valve, L30040 transmission control valve, Serial Range: -84857E

1шт.

L30040

VALVE - transmission control, Includes: Ref. 24 - 30, Serial Range: -84857E

1шт.

25

A40203

SPOOL - valve, manual control, L30040 transmission control valve, Serial Range: -84857E

2шт.

26

A17949

OIL SEAL

- wiper, valve spool, L30040 transmission control valve, Serial Range: -84857E

2шт.

27

A40204

SPOOL

- valve, slave, L30040 transmission control valve, Serial Range: -84857E

1шт.

28

A17954

VALVE SPRING

SPRING - detent, L30040 transmission control valve, Serial Range: -84857E

2шт.

29

A17959

AXLE PIN

PIN - detent stop, L30040 transmission control valve, Serial Range: -84857E

2шт.

30

211-11

BALL,3/8" Dia

- detent, . steel, L30040 transmission control valve 3/8" Dia, Serial Range: -84857E

2шт.

31

A17946

VALVE SPRING

SPRING - control valve, L30040 transmission control valve, Serial Range: -84857E

1шт.

32

A17947

BREATHER

- air, transmission, L30040 transmission control valve, Serial Range: -84857E

1шт.

L30041

PISTON ASSY.

CYLINDER ASSEMBLY - slave piston, L30040 transmission control valve, Includes: Ref. 33 - 41, Serial Range: -84857E

1шт.

33

A17944

PLUG

- stop, L30040 transmission control valve, Serial Range: -84857E

1шт.

34

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring, stop plug, L30040 transmission control valve, Serial Range: -84857E

1шт.

35

A17942

CUP

- piston, L30040 transmission control valve, Serial Range: -84857E

1шт.

36

A17941

SPACER

- piston cup, L30040 transmission control valve, Serial Range: -84857E

1шт.

37

A17940

AXLE PIN

PIN - push, piston, L30040 transmission control valve, Serial Range: -84857E

1шт.

38

A17943

HOUSING

- piston, L30040 transmission control valve, Serial Range: -84857E

1шт.

39

L30394

SEAL,23.02mm ID x 27mm OD x 6.35mm Thk

- piston, L30040 transmission control valve, Serial Range: -84857E

1шт.

40

A17945

GASKET

SEAL - oil, push pin, L30040 transmission control valve, Serial Range: -84857E

1шт.

41

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, piston housing, L30040 transmission control valve, Serial Range: -84857E

1шт.

42

A17951

GASKET

- mounting, valve, L30040 transmission control valve, Serial Range: -84857E

1шт.

43

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

HHCS - 7/16" - 14 NC x 1-1/8", L30040 transmission control valve, Serial Range: -84857E

4шт.

44

92-7

LOCK WASHER,7/16"

L30040 transmission control valve 7/16", Serial Range: -84857E

4шт.
