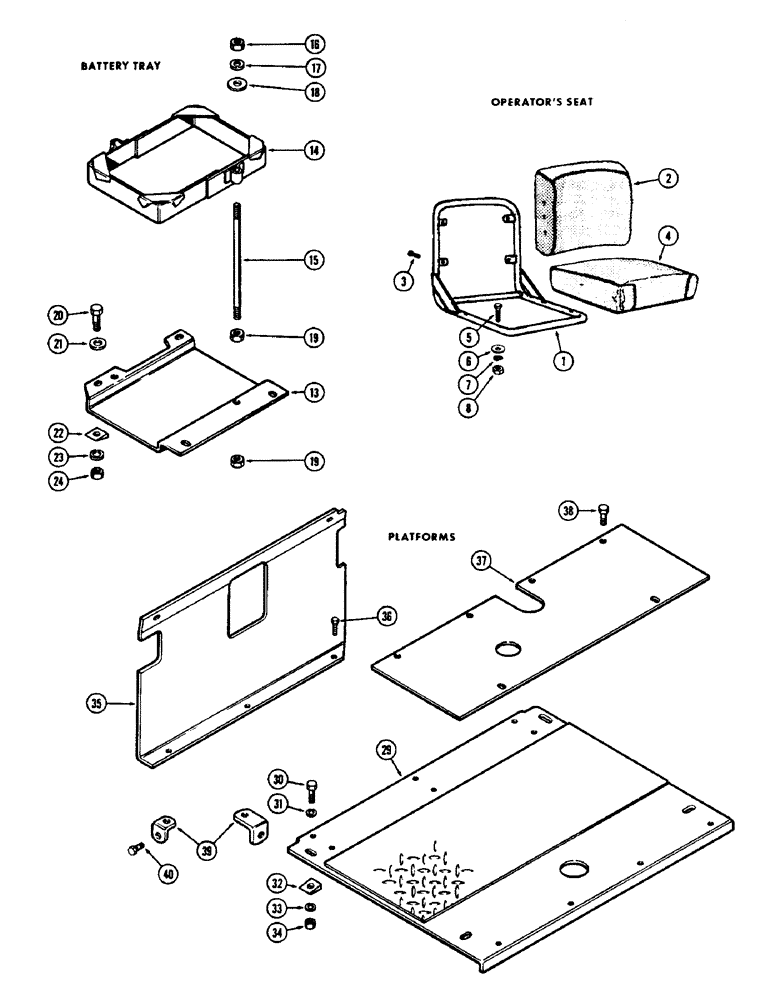

Запчасти Case W5A (150) - SEAT (09) - CHASSIS

A13441

SEAT ASSY. - operators, Includes: Ref. 2 - 4

1шт.

1

A13910

FRAME - seat

1шт.

2

A13095

CUSHION

- back rest

1шт.

3

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - stove, 1/4 x 3/4" N.C., rd. hd.

4шт.

4

A13909

CUSHION

-seat

1шт.

5

73-528

SCREW,Slotted Flat Hd, 5/16"-18 x 1 3/4"

- mach., 5/16 x 1-3/4" N.C. flat hd.

4шт.

6

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

13

A13528

PLATE - battery support, batery tray

1шт.

14

A13424

FRAME - hold-down, battery tray

1шт.

15

A13429

BOLT - hold-down frame, battery tray

2шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., battery tray

2шт.

17

92-6

LOCK WASHER,3/8"

battery tray 3/8"

2шт.

18

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", battery tray

2шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex., battery tray

4шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Battery tray Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

20

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex., battery tray

2шт.

21

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", battery tray

4шт.

22

A13436

WASHER - bevel, battery tray

2шт.

23

92-6

LOCK WASHER,3/8"

battery tray 3/8"

4шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex., battery tray

2шт.

29

A16827

PLATFORM - cockpit, Start Serial: 8193446

1шт.

29

A13417

PLATFORM - cockpit, Serial Range: -8193446

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Platforms Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

30

14-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.F. hex., platforms

2шт.

31

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", platforms

2шт.

32

A13436

WASHER - bevel, platforms

2шт.

33

92-6

LOCK WASHER,3/8"

platforms 3/8"

2шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex., platforms

2шт.

35

A13438

SHIELD - dust, battery, platforms

1шт.

36

187-1009

BOLT

SCREW - 1/4 x 3/8" hex., washer hd., platforms

3шт.

37

A16829

PLATE - platform, front, platforms, Start Serial: 8193446

1шт.

37

A13439

PLATE - platform, front, platforms, Serial Range: -8193446

1шт.

38

187-1009

BOLT

SCREW - 1/4 x 3/8" hex., washer hd., platforms

4шт.

39

A16828

SUPPORT

- platform, platforms, Start Serial: 8193446

2шт.

40

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- 1/2 x 2-1/4" N.F. hex., platforms

2шт.
