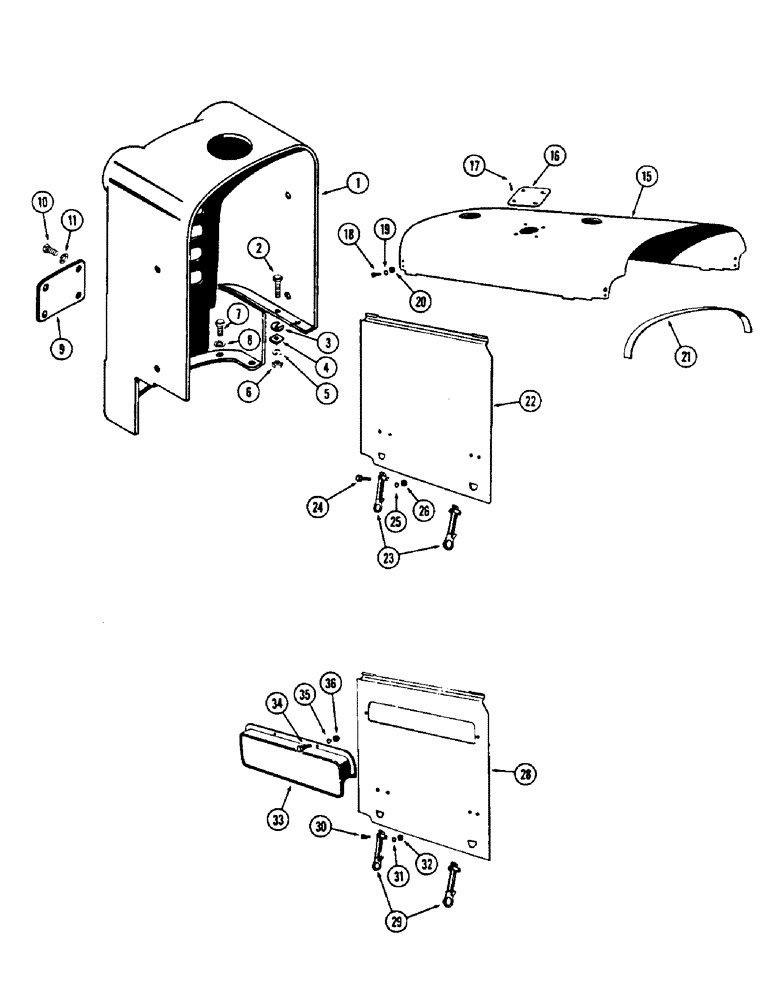

Запчасти Case W5A (148) - GRILLE - HOOD AND SIDE PANELS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
A13504
GRILLE - radiator housing, Includes: Ref. 2 - 4
1шт.
2
14-832
BOLT,Hex, 1/2" - 20 x 2", Gr 5
- 1/2 x 2" N.F. hex.
4шт.
3
A22164
SHIM - spacer
1шт.
4
A13404
WASHER - bevel
4шт.
5
92-8
LOCK WASHER,1/2"
4шт.
6
25-118
NUT,1/2"-20, G5
- 1/2" N.F. hex.
4шт.
7
14-828
BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5
- 1/2 x 1-3/4" N.F. hex.
2шт.
8
92-8
LOCK WASHER,1/2"
2шт.
9
A13505
PLATE - name, "Case"
1шт.
10
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4шт.
11
92-8
LOCK WASHER,1/2"
4шт.
15
A16931
HOOD ASSY. - engine (Diesel) (Used w/dry & oil bath air cleaner)
1шт.
15
A15646
HOOD ASSY. - engine (Gasoline) (Used w/dry & oil bath air cleaners)
1шт.
16
A19587
PLATE - cover, head (Used w/oil bath air cleaners)
1шт.
17
173-95
SCREW,Sl Rnd Hd, #10 - 24 x 3/8"
- mach., #10-24 x 3/8" rd. hd.
4шт.
18
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
8шт.
19
95-6
WASHER,3/8"
- 7/16 x 1 x 5/64"
8шт.
20
92-6
LOCK WASHER,3/8"
8шт.
21
A13372
MOULDING - head, anti-squeak (29")
1шт.
22
A16472
PANEL - side, hood, R.H. (W/out plate)
1шт.
22
A16473
PANEL - side, hood, L.H. (W/out plate)
1шт.
23
A12514
LATCH
- panel lock
2шт.
24
173-118
SCREW,Sl Rnd Hd, #12 - 24 x 5/8"
- mach., #12 x 5/8" rd. hd.
4шт.
25
492-11012
LOCK WASHER,#12
WASHER, LOCK, #12
4шт.
26
225-14112
NUT,#12-24
- #12 N.C. hex.
4шт.
A19590
MOULDING - side panel (Rubber) (Used w/oil bath air cleaner) (Not illustrated)
1шт.
28
A15650
PANEL - side, hood, R.H. (W/plate)
1шт.
28
A15651
PANEL - side, hood, L.H. (W/plate)
1шт.
29
A12514
LATCH
- panel lock
2шт.
30
173-118
SCREW,Sl Rnd Hd, #12 - 24 x 5/8"
- mach., #12 x 5/8" rd. hd.
4шт.
31
492-11012
LOCK WASHER,#12
WASHER, LOCK, #12
4шт.
32
225-14112
NUT,#12-24
- #12 N.C. hex.
4шт.
33
A12474
PLATE - hood side
2шт.
34
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
8шт.
35
92-5
LOCK WASHER,5/16"
8шт.
36
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex.
8шт.
Выбрано товаров: 36
