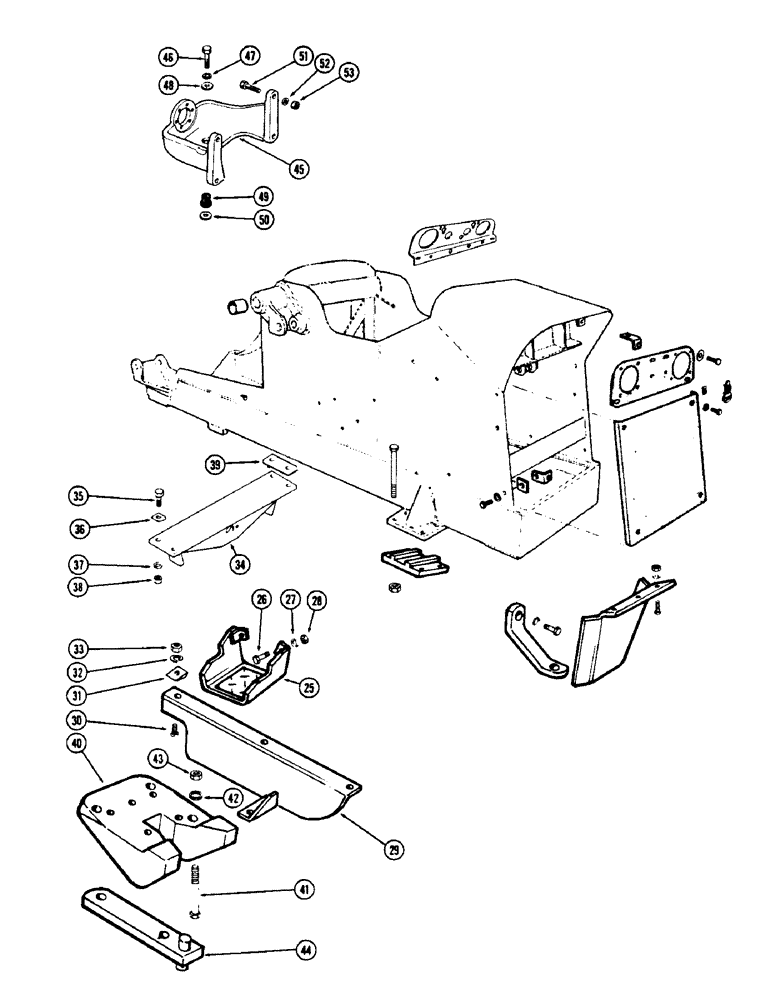

Запчасти Case W5A (144) - CHASSIS AND ATTACHING PARTS (09) - CHASSIS

25

A13414

STEP - loader

2шт.

26

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex.

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 3/8" N.F. hex.

4шт.

29

A13408

SHEET - side, lower, R.H.

1шт.

29

A13409

SHEET - side, lower, L.H.

1шт.

30

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex.

8шт.

31

A13436

WASHER - bevel, 3/8"

7шт.

32

92-6

LOCK WASHER,3/8"

8шт.

33

9635082

NUT,5/16" - 18, Gr 5

- 3/8" N.F. hex.

8шт.

34

A13395

BRACKET - pivot mounting, rear axle

1шт.

35

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

4шт.

36

A13404

WASHER - bevel, 5/8"

4шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

38

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

39

A15522

SPACER - axle mounting bracket

2шт.

40

A13499

COUNTERWEIGHT - loader

1шт.

41

15-12184

BOLT - 3/4 x 11-1/2" N.C. hex.

3шт.

41

15-12224

BOLT - 3/4 x 14" N.C. hex.

2шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

5шт.

43

25-1112

NUT,3/4"-16, G5

- 3/4" N.C. hex.

5шт.

44

A13501

PIN

DRAWBAR - towing

1шт.

45

A15827

SUPPORT - rear engine and pump mounting

1шт.

46

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.F. hex.

1шт.

47

92-8

LOCK WASHER,1/2"

1шт.

48

A16406

WASHER - engine mount

5шт.

49

A16404

MOUNTING PARTS

MOUNT - engine, front and rear

5шт.

50

A16405

SPACER - engine mount

1шт.

51

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- 5/8 x 2-3/4" N.C. hex.

2шт.

51

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

52

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

53

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.
