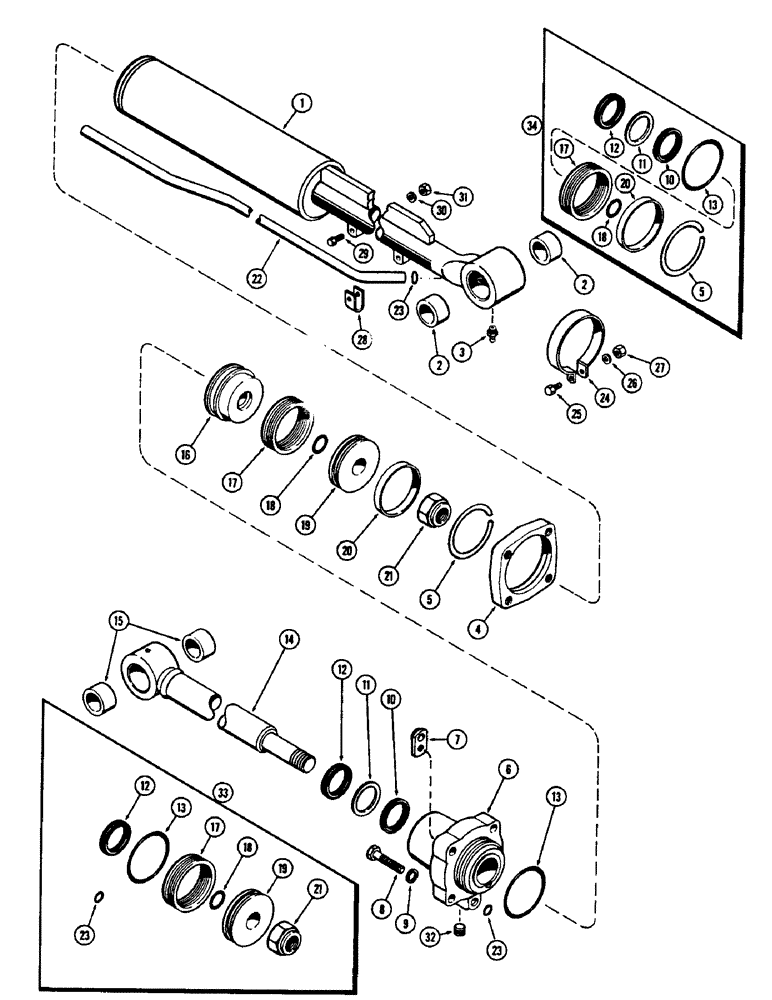

Запчасти Case W5A (172) - TILT CYLINDERS (08) - HYDRAULICS

A17888

CYLINDER ASSY. - tilt, R.H., Includes: Ref. 1 - 32

1шт.

A15098

CYLINDER ASSY. - tilt, R.H. (Order A17888), Includes: Ref. 1 - 32

1шт.

A17889

CYLINDER ASSY. - tilt, L.H., Includes: Ref. 1 - 32

1шт.

A15099

CYLINDER ASSY. - tilt, L.H. (Order A17889), Includes: Ref. 1 - 32

1шт.

1

A15094

BODY & END ASSY. - R.H. (Incl. ref. 2)

1шт.

1

A15095

CYLINDER

BODY & END ASSY. - L.H. (Incl. ref. 2)

1шт.

2

A13386

BUSHING

- end

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

4

A12544

CLAMP

- head to cylinder body

1шт.

5

A12545

RING, SNAP

RING - snap, clamp retaining (See Ref. 34)

1шт.

6

A13488

HEAD - tilt cylinder

1шт.

7

A13921

CLIP - head (Right hand cylinder only)

2шт.

8

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- head, 1/2 x 2 x 1/4" N.F. hex. (3 used R.H. cylinder) (4 used L.H. cylinder)

1шт.

8

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- head, 1/2 x 2-1/2" N.F. hex. (R.H. cyl. only)

1шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

A13892

RING

WIPER - piston rod (See Ref. 34)

1шт.

11

A13901

WASHER

- back-up ring (Leather) (See Ref. 34)

1шт.

12

A14246

RING

QUAD RING - head (See Ref. 33 & 34)

1шт.

13

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - head, 3-1/4 x 3-1/2 x 1/8" (See Ref. 33 & 34)

1шт.

14

A13486

ROD ASSY. - piston

1шт.

15

A13487

BUSHING

- piston rod

2шт.

16

A17809

PISTON ASSY.

PISTON - cylinder (Used w/A17888 & A17889)

1шт.

16

A13489

PISTON - cylinder (Used w/A15098 & A15099)

1шт.

17

A13491

PACKING

- piston, "V" rings, (See Ref. 33 & 34)

1шт.

18

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - piston, 1-1/16 x 1-5/16 x 1/8" (See Ref. 33 & 34)

1шт.

19

A17890

PLATE - piston follower (Used w/A17888 & A17889)

1шт.

19

A13492

PLATE - piston follower (Used w/A15098 & A15099)

1шт.

20

A17811

RING

- wear, piston & plate (Used w/A17888 & A17889) (See Ref. 34)

1шт.

20

A13490

RING

- wear, piston & plate (Used w/A15098 & A15099)

1шт.

21

R12336

LOCK NUT

- piston rod (See Ref. 33)

1шт.

22

A13494

HOSE

TUBE - port, right hand cylinder

1шт.

22

A13495

TUBE

- port, left hand cylinder

1шт.

23

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - port tube, 5/8 x 13/16 x 3/32" (See Ref. 33)

2шт.

24

A16373

CLAMP - port tube

1шт.

25

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Clamp Hex, 5/16"-24 x 1 3/4", G5

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

27

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

28

A13493

HOSE

HANGER - port tube

2шт.

29

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Hanger Hex, 5/16"-24 x 1 1/4", G5

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

32

221-1843

PLUG

- head, 3/8" P.T. sckt. hd.

1шт.

33

A17733

ASSEMBLY

KIT - cylinder repair (Used w/A15098 & A15099) (Incl. Ref. 12, 13, 17 thru 19, 21, & 23)

1шт.

34

L30682

KIT

- cylinder repair (Used w/A17888 & A17889) (Incl. Ref. 5, 10 thru 13, 17, 18, and 20)

1шт.
