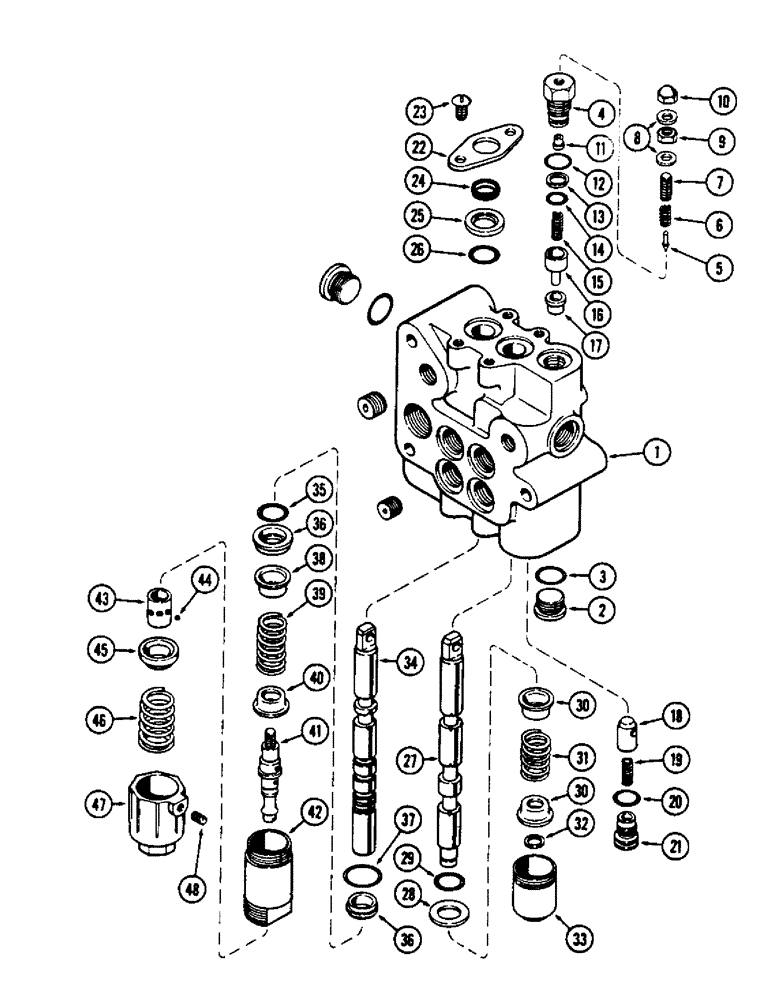

Запчасти Case W5A (170) - A16873 VALVE (08) - HYDRAULICS

A16873

VALVE ASSY. - control (Order A56146), Includes: Ref. 1 - 48

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A561460

1шт.

2

86625138

PLUG,7/18" - 14

Assy, Body, 5/8" N.F. thread, Includes Ref. 3 Hex Soc, 7/8"-14 ORB

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING, 3/4 x 15/16 x 3/32"

1шт.

4

D26262

CAP

- relief valve

1шт.

5

D26267

PLUNGER

- pilot

1шт.

6

D26268

SPRING

- plunger

1шт.

7

82-514

SET SCREW

SCREW - set, 5/16 x 7/8" N.F. sltd. hdless., cup pt.

1шт.

8

D26270

WASHER, SEALING

SEAL - nut

2шт.

9

25-155

JAM NUT,Jam, 5/16"-24, G5

- lock, adj. screw, 5/16" N.F. half hex

1шт.

10

129-514

CROWN NUT,Low, 5/16" - 24

- acorn

1шт.

11

D26266

SEAT

- pilot plunger

1шт.

12

A16890

X

"O" RING - cap

1шт.

13

D26264

X

RING - back-up

1шт.

14

A16891

X

"O" RING - back-up ring

1шт.

15

D26261

VALVE SPRING

SPRING - plunger

1шт.

16

A16888

VALVE POPPET

PLUNGER - relief valve

1шт.

17

D26259

SEAT

- plunger

1шт.

18

A16886

VALVE POPPET

POPPET - check valve

1шт.

19

A14520

VALVE SPRING

SPRING - check valve

1шт.

20

A14567

JAM NUT

"O" RING - check valve

1шт.

21

A14532

CAP

- check valve

1шт.

22

A14531

PLATE ASSY.

PLATE - retainer, spool

2шт.

23

D20771

SCREW - plate retaining

4шт.

24

A14527

SCRAPER

WIPER - spool

2шт.

25

A14526

RETAINER

- "O" ring

2шт.

D26244

SPOOL

ASSY. - tilt (Not illust.), Includes: Ref. 26 - 32

1шт.

26

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool

2шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - tilt (Order D26244)

1шт.

28

A14535

RETAINER

- "O" ring

1шт.

29

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool

1шт.

30

A14533

BRONZE BUSHING

SPACER - centering

2шт.

31

A14534

SPRING

- centering

1шт.

32

A13190

X

RING - snap

1шт.

33

A14529

CAP

- spool

1шт.

A16875

SPOOL

ASSY. - float (Not illust.), Includes: Ref. 34 - 48

1шт.

34

NSS

NOT SOLD SEPARAT

SPOOL - float (Order A16875)

1шт.

35

A16877

SEAL

"O" RING - retainer, outer

1шт.

36

A14537

RETAINER - "O" ring

1шт.

37

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - retainer, inner

1шт.

38

A16879

SPACER

- centering, inner

1шт.

39

A16882

SPRING

- centering

1шт.

40

A16881

SEAT

SPACER - centering, outer

1шт.

41

A16848

SLEEVE CYLINDER

BARREL - detent

1шт.

42

A16885

X

CAP - inner

1шт.

43

A16883

SLEEVE - detent

1шт.

44

A16851

X

BALL - detent

6шт.

45

A16852

RETAINER

- detend ball

1шт.

46

A16853

VALVE SPRING

SPRING - outer cap

1шт.

47

A16884

CYLINDER END CAP

CAP - outer

1шт.

48

A16855

SCREW

- set, outer cap

1шт.
