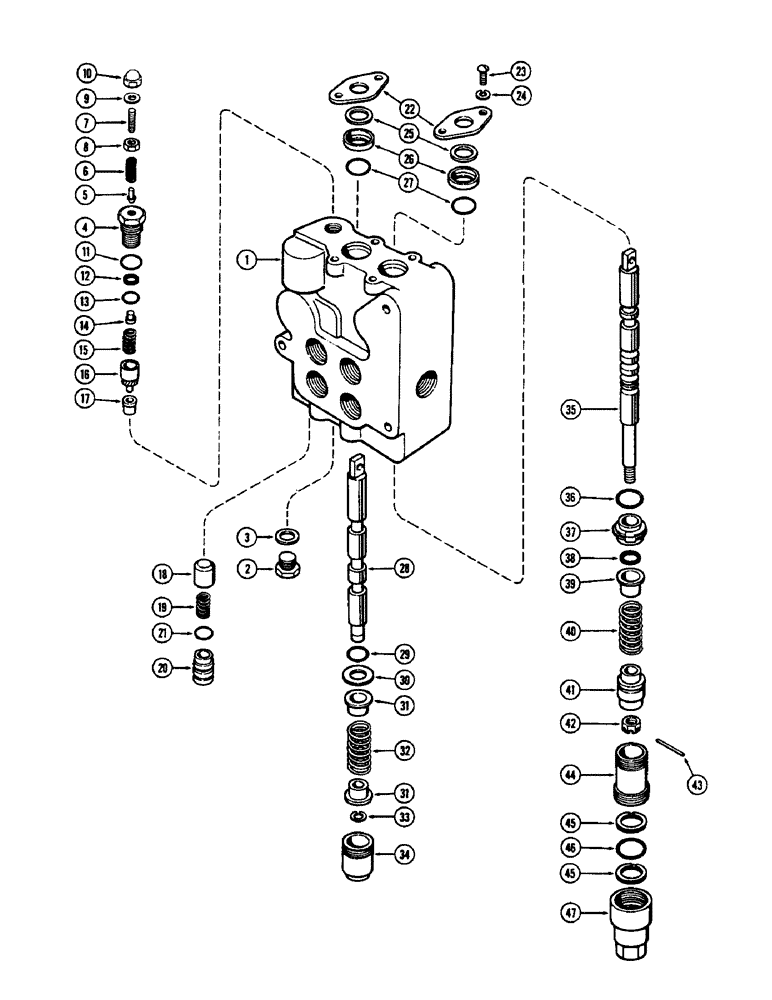

Запчасти Case W5A (168) - A15870 VALVE (08) - HYDRAULICS

A15870

VALVE ASSY. - control (Order A56146), Includes: Ref. 1 - 47

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A561460

1шт.

2

86625138

PLUG,7/18" - 14

Assy, Body, 5/8" N.F. thread, Includes Ref. 3 Hex Soc, 7/8"-14 ORB

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

4

D26262

CAP

- relief valve

1шт.

5

D26267

PLUNGER

- pilot

1шт.

6

D26268

SPRING

- pilot plunger

1шт.

7

82-514

SET SCREW

SCREW - set, 5/16 x 7/8" N.F. sltd. hd. less, cup pt.

1шт.

8

25-155

JAM NUT,Jam, 5/16"-24, G5

- lock, adj. screw, 5/16" N.F. half hex

1шт.

9

D26270

WASHER, SEALING

SEAL - relief valve

1шт.

10

A13189

NUT - cap, relief valve, 5/16" N.F. acorn

1шт.

12

D26264

X

RING - back-up

1шт.

13

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" RING - valve

1шт.

14

D26266

SEAT

- pilot

1шт.

15

D26261

VALVE SPRING

SPRING - pilot

1шт.

16

D26260

VALVE POPPET

PLUNGER - pilot

1шт.

17

D26259

SEAT

- valve

1шт.

18

A14528

POPPET - check valve

2шт.

19

A14520

VALVE SPRING

SPRING - check valve

2шт.

20

A14532

CAP

- check valve

2шт.

21

A14546

O-RING

"O" RING - cap

2шт.

22

A14531

PLATE ASSY.

PLATE - retainer, spool

2шт.

23

76-610

SCREW - 3/8 x 5/8" N.C. rd. hd. mach.

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

A14527

SCRAPER

WIPER - spool

2шт.

26

A14526

RETAINER

- "O" ring

2шт.

27

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool

2шт.

D26244

SPOOL

TILT CONTROL (Not illust.), Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - tilt (Order D26244)

1шт.

29

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool

1шт.

30

A14535

RETAINER

- "O" ring

1шт.

31

A14533

BRONZE BUSHING

SPACER - spool centering

2шт.

32

A14534

SPRING

- spool centering

1шт.

33

A13190

X

RING - snap, spacer

1шт.

34

A14529

CAP

- end

1шт.

A16875

SPOOL

ASSY. - float (Not illust.), Includes: Ref. 35 - 47

1шт.

35

NSS

NOT SOLD SEPARAT

SPOOL - float (Order A16875)

1шт.

36

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - spool

1шт.

37

A14537

RETAINER - "O" ring

1шт.

38

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool

1шт.

39

A14538

SPACER - spool centering

1шт.

40

A14534

SPRING

- spool centering

1шт.

41

A14539

BARREL - spool detent

1шт.

42

A14544

NUT - slotted, spool

1шт.

43

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

44

D26271

CAP - spool, inner

1шт.

45

D26273

WASHER - wear, cap

2шт.

46

A14541

RING, SNAP

RING - snap, detent

1шт.

47

D26272

CAP - spool, outer

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - cap

1шт.
