Запчасти Case W5A (166) - A13675 VALVE (08) - HYDRAULICS

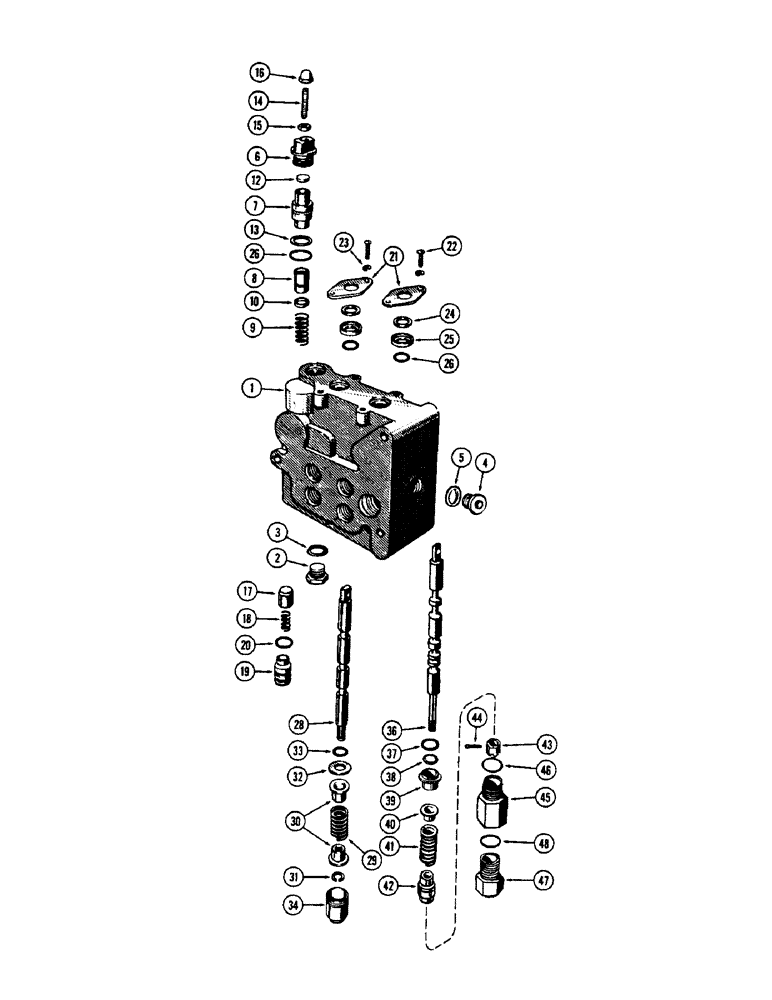

Схема запчастей Case W5A - (166) - A13675 VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

A13675

VALVE ASSY. - control (Not illust.) (Order A56146), Includes: Ref. 1 - 48

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A56146)

1шт.

2

86625138

PLUG,7/18" - 14

Assy, Body, 5/8" N.F., Includes Ref. 3 Hex Soc, 7/8"-14 ORB

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

4

9841223

PLUG,1-1/16" - 12 ORB

Assy, Body, 3/4" N.F. thread, Incl. Ref. 5 Hex Soc, 1 1/16"-12 ORB

1шт.

5

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - 7/8 x 1-1/8 x 1/8"

1шт.

6

A14523

CAP - relief valve body

1шт.

7

A14521

SEAT - relief valve plunger

1шт.

8

A14522

PLUNGER - relief valve

1шт.

9

A14524

SPRING - plunger

1шт.

10

A14536

RING

- seat

1шт.

12

A13163

INSERT - relief valve seat

1шт.

13

A14525

RING - back-up

1шт.

14

82-532

SCREW - set, 5/16" N.F. x 2" sltd. hd less., cup pt.

1шт.

15

25-155

JAM NUT,Jam, 5/16"-24, G5

- lock, adj. screw, 5/16" N.F. half hex.

1шт.

16

A13189

NUT - cap, relief valve, 5/16" N.F. acorn

1шт.

17

A14528

POPPET - check valve

1шт.

18

A14520

VALVE SPRING

SPRING - check valve, 3/8", 1-1/4" free length

1шт.

19

A14532

CAP

- check valve

1шт.

20

A14546

O-RING

"O" RING - check valve cap

1шт.

21

A14531

PLATE ASSY.

PLATE - spool retainer

2шт.

22

75-610

X

SCREW - plate, 3/8 x 5/8" N.C., rd. hd.

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

A14527

SCRAPER

WIPER - spool

2шт.

25

A14526

RETAINER

- "O" ring and wiper

1шт.

26

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool

2шт.

D26244

SPOOL

ASSY. - tilt (Not illust.)

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - tilt (Order D26244), Includes: Ref. 29 - 33

1шт.

29

A14534

SPRING

- tilt spool, 1-5/32", 1-27/32" free length

1шт.

30

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

31

A13190

X

RING - snap, spring retaining

1шт.

32

A14535

RETAINER

- "O" ring

1шт.

33

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - tilt spool

1шт.

34

A14529

CAP

- tilt spool end

1шт.

A16875

SPOOL

ASSY. - float (Not illust.), Includes: Ref. 36 - 48

1шт.

36

NSS

NOT SOLD SEPARAT

SPOOL - float (Order A16875)

1шт.

37

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - inner, 1 x 1-3/16 x 3/32"

1шт.

38

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool

1шт.

39

A14537

RETAINER - "O" ring

1шт.

40

A14538

SPACER - spool centering

1шт.

41

A14534

SPRING

- spool centering

1шт.

42

A14539

BARREL - spool detent

1шт.

43

A14544

NUT - slotted, spool

1шт.

44

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

45

A14540

CAP - spool, 3-1/8" long

1шт.

46

A14541

RING, SNAP

RING - snap, detent

1шт.

47

A14542

CAP - spool, 1-7/8" long

1шт.

48

A14541

RING, SNAP

RING - snap, detent

1шт.

Выбрано товаров: 48
