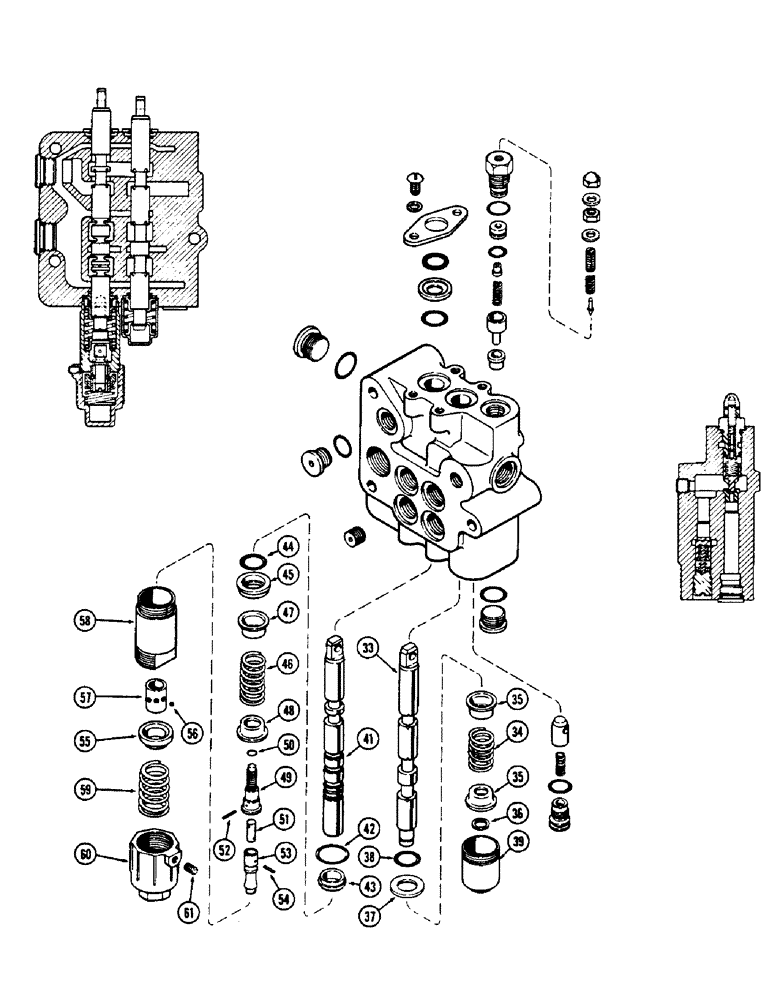

Запчасти Case W5A (164) - A56146 VALVE (08) - HYDRAULICS

A56146

VALVE ASSY. - control (Cont'd from Fig. 162), Includes: Ref. 33 - 61

1шт.

D26244

SPOOL

ASSY. - tilt (Not illust.), Includes: Ref. 33 - 38

1шт.

33

NSS

NOT SOLD SEPARAT

SPOOL - tilt (Order D26244)

1шт.

34

A14534

SPRING

- spool, 1-5/32", 1-27/32" free length

1шт.

35

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

36

A13190

X

RING - snap, spring retainer

1шт.

37

A14535

RETAINER

- "O" ring

1шт.

38

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool (In lower body)

1шт.

39

A14529

CAP

- tilt spool end

1шт.

A25563

SPOOL

ASSY. - float (Not illust.), Includes: Ref. 41 - 61

1шт.

41

NSS

NOT SOLD SEPARAT

SPOOL - float (Order A25563)

1шт.

42

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - inner, 23/64 x 1/4 x 5/64"

1шт.

43

A25565

X

RETAINER - inner "O" ring

1шт.

44

A16877

SEAL

"O" RING - outer

1шт.

45

A25566

X

RETAINER - outer "O" ring

1шт.

46

A16882

SPRING

- float spool, inner

1шт.

47

A16879

SPACER

RETAINER - inner spring, upper

1шт.

48

A16881

SEAT

RETAINER - inner spring, outer

1шт.

49

A25567

PLUG - valve

1шт.

50

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - plug, 23/64 x 1/4 x 5/64"

1шт.

51

A25568

X

LINK - plug and barrel

1шт.

52

A25571

X

PIN -, Serial Range: link-plug

1шт.

53

A25569

BARREL - detent ball

1шт.

54

A25570

X

PIN -, Serial Range: link-barrel

1шт.

55

A16848

SLEEVE CYLINDER

SLEEVE - detent

1шт.

56

A16851

X

BALL - detent

6шт.

57

A16852

RETAINER

- detent balls

1шт.

58

A16885

X

CAP - spool, bottom

1шт.

59

A16853

VALVE SPRING

SPRING - float spool, outer

1шт.

60

A16884

CYLINDER END CAP

CAP - top

1шт.

61

A16855

SCREW

- cap retaining

1шт.
