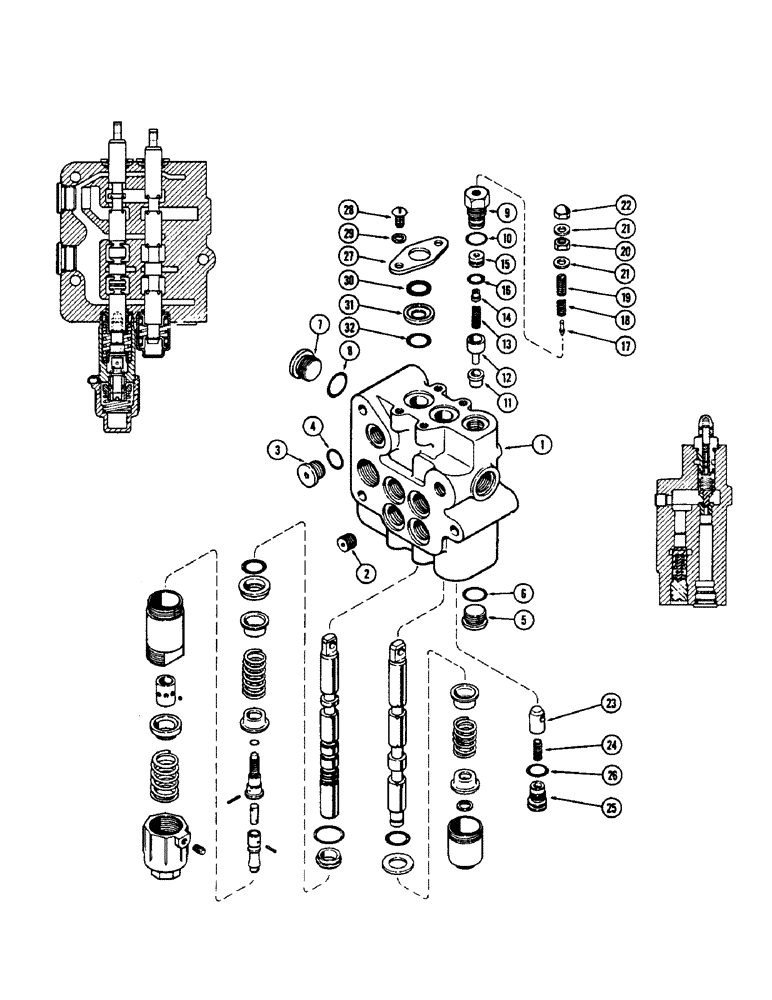

Запчасти Case W5A (162) - A56146 VALVE (08) - HYDRAULICS

A56146

VALVE ASSY. - control (Not illust.), Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A56146)

1шт.

2

221-841

PLUG

- body, 1/4" P.T., sckt. hd.

1шт.

3

9672438

PLUG,7/16" - 20 ORB

Assy, Body, Incl. Ref. 4 Hex Hd, 7/16"-20 ORB

1шт.

4

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - 23/64 x 1/4 x 5/64"

1шт.

5

86512512

PLUG,7/8" - 14 ORB

Body, Incl. Ref. 6 Hex Hd, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 5/8 x 3/32"

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSY. - body, 1-1/16" N.F. thread, Includes: Ref. 8

2шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 59/64 x 3/4 x 7/64"

1шт.

9

D26262

CAP

- relief valve body

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - cap, 41/64 x 1/2 x 3/32"

1шт.

11

D26259

SEAT

- relief valve plunger

1шт.

12

A16888

VALVE POPPET

PLUNGER - relief valve

1шт.

13

D26261

VALVE SPRING

SPRING - plunger, 7/16", 15/16" free length

1шт.

14

D26266

SEAT

- pilot plunger

1шт.

15

D26264

X

RING - seat guide

1шт.

16

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" RING - guide ring seal

1шт.

17

D26267

PLUNGER

- pilot, relief valve

1шт.

18

D26268

SPRING

- plunger, 1/4", 27/32 free length

1шт.

19

82-514

SET SCREW

SCREW - set, 5/16 x 7/8" N.F. sltd. hdless., cup pt.

1шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

- lock, adjusting screw, 5/16" N.F. half hex

1шт.

21

D26270

WASHER, SEALING

SEAL - lock and cap nuts

2шт.

22

129-514

CROWN NUT,Low, 5/16" - 24

- cap, relief valve, 5/16" N.F. acorn

1шт.

23

A16886

VALVE POPPET

POPPET - check valve

1шт.

24

A14520

VALVE SPRING

SPRING - check valve, 3/8", 1-1/4" free length

1шт.

25

A14532

CAP

- check valve

1шт.

26

A14546

O-RING

"O" RING - check valve cap

1шт.

27

A14531

PLATE ASSY.

PLATE - spool retainer

2шт.

28

75-610

X

SCREW - plate, 3/8 x 5/8" N.C., rd. hd.

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

A14527

SCRAPER

WIPER - spool

2шт.

31

A14526

RETAINER

- "O" ring and wiper

1шт.

32

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool (In upper body)

2шт.
