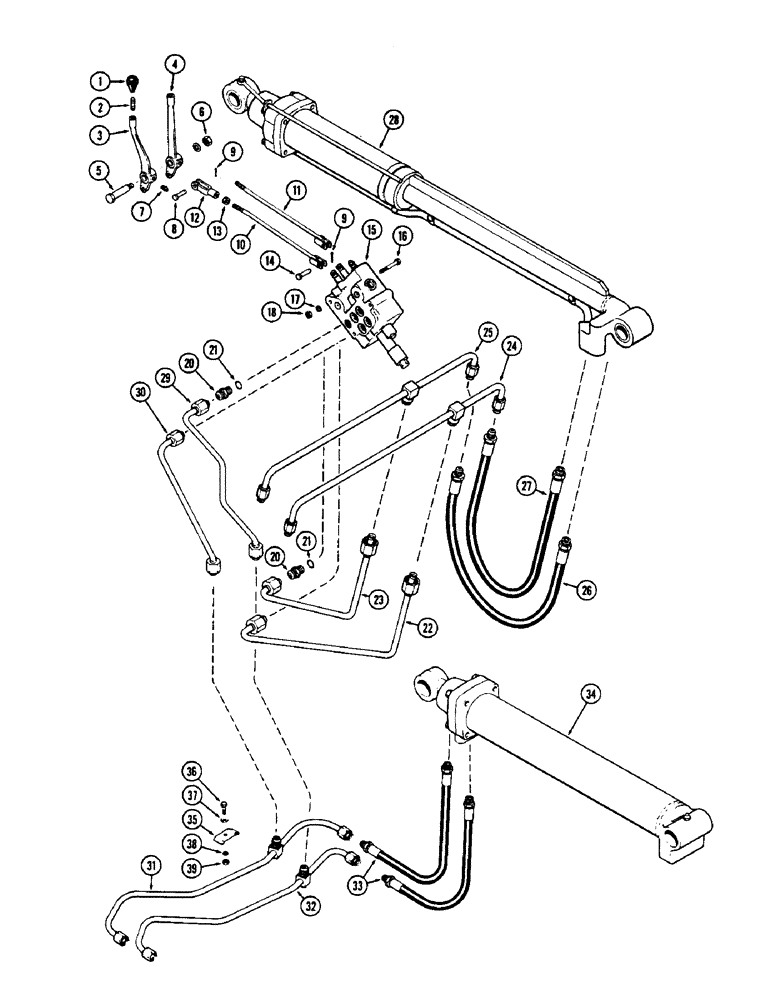

Запчасти Case W5A (156) - HYDRAULIC BUCKET CONTROLS AND CIRCUIT (08) - HYDRAULICS

1

A14051

GRIP

KNOB - hydraulic hand lever

2шт.

2

A16775

STUD

- knob to hand lever

2шт.

3

A13531

LEVER - hand, bucket tilt (Inner)

1шт.

4

A13535

LEVER - hand, bucket lift (Outer)

1шт.

5

A13538

STUD - pivot, hand lever

1шт.

6

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

8

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , End yoke, bucket control 3/8" x 1.060"

2шт.

9

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

10

A13532

ROD - control, bucket tilt

1шт.

11

A13536

ROD - control, bucket tilt

1шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, adjusting

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

14

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Control rod to valve 5/16" x .940"

2шт.

15

A56146

VALVE ASSY. - hydraulic control (Repairs, Figs. 162 & 164)

1шт.

16

16-668

BOLT - 3/8 x 4-1/4" N.C. hex.

3шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

20

118-5065

ADAPTER - straight, hydraulic, Includes: Ref. 21

4шт.

21

218-007

"O" RING - hydraulic adapter

1шт.

22

A13698

TUBE ASSY. - manifold, tilt cylinder (Dump)

1шт.

23

A13699

TUBE ASSY. - manifold, tilt cylinder (Tip-up)

1шт.

24

A13701

TUBE ASSY. - manifold, tilt cylinder (Dump)

1шт.

25

A13700

TUBE ASSY. - manifold, tilt cylinder (Tip up)

1шт.

26

A15101

FLEXIBLE HOSE

HOSE - hydraulic, tilt cylinder outside

2шт.

27

A15100

FLEXIBLE HOSE

HOSE - hydraulic, tilt cylinder inside

2шт.

28

A17888

CYLINDER ASSY. - hyd. tilt R.H. (Repairs, Fig. 172)

1шт.

28

A17889

CYLINDER ASSY. - hyd, tilt L.H. (Repairs, Fig. 172)

1шт.

29

A13690

TUBE ASSY. - manifold, lift cylinder (Lower)

1шт.

30

A13691

TUBE

ASSY. - manifold, lift cylinder (Raise)

1шт.

31

A13692

TUBE ASSY. - manifold, lift cylinder (Raise)

1шт.

32

A13693

TUBE ASSY. - manifold, lift cylinder (Lower)

1шт.

33

A13707

HOSE - hydraulic, lift cylinder

4шт.

34

A17886

CYLINDER ASSY.

- lift, R.H. (Repairs, Fig. 174)

1шт.

34

A17887

CYLINDER ASSY. - lift, L.H. (Repairs, Fig. 174)

1шт.

35

A13622

PLATE, LOCKING

CLAMP - manifold, hydraulic

4шт.

36

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex.

2шт.

36

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex.

2шт.

37

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16"

2шт.

38

92-5

LOCK WASHER,5/16"

2шт.

39

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.
