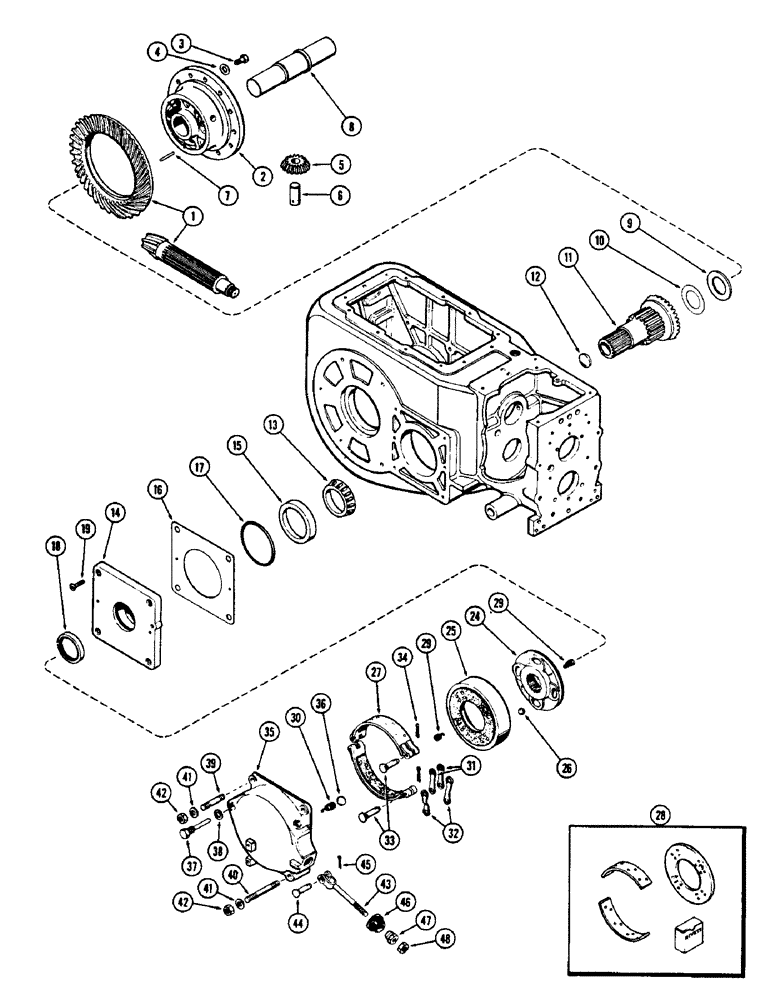

Запчасти Case W5A (130) - DIFFERENTIAL AND BRAKES, USED DIESEL SN. 8171216 & AFTER, USED SPARK INGINTION SN. 8171204 & AFTER (07) - BRAKES

1

G14420

GEAR

SET - ring gear and pinion

1шт.

2

A37134

X

WHEEL - center, differential ring gear

1шт.

2

G1701

X

WHEEL - center, differential ring gear (Use 1-G37134, 3-G37135, 3-138-141, 12-114-318, and 12-A30013)

1шт.

3

G49023

BOLT - ring gear, to center wheel

12шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- differential ring gear

12шт.

5

G17006

GEAR WHEEL

GEAR - pinion

3шт.

6

A37135

AXLE PIN

SHAFT - pinion gear

3шт.

7

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, , Pinion shaft 1/4" x 1 7/8", Slotted

3шт.

7

G17004

SHAFT - cross, differential

1шт.

9

G47000

WASHER - thrust, center wheel (.089")

1шт.

9

G47001

WASHER - thrust, center wheel (.094")

1шт.

9

G47002

WASHER - thrust, center wheel (.099")

1шт.

9

G47003

WASHER - thrust, center wheel (.104")

1шт.

9

G47004

WASHER - thrust, center wheel (.109")

1шт.

9

G47005

WASHER - thrust, center wheel (.119")

1шт.

10

G17007

SHIM - thrust washer (.010")

1шт.

11

G30597

GEAR ASSY. - side, Includes: Ref. 12

2шт.

12

A29902

PLUG

- side gear, 1-5/8" cup type

1шт.

13

A7891

ROLLER BEARING

CONE - bearing, side gear, R.H.

1шт.

13

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing, side gear, L.H.

1шт.

14

G30471

CARRIER ASSY. - side gear bearing, R.H., Includes: Ref. 15

1шт.

15

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, side gear, R.H.

1шт.

14

G30470

CARRIER

ASSY. - side gear bearing, L.H., Includes: Ref. 15

1шт.

15

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear, L.H.

1шт.

16

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

16

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

17

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing, carrier, 5 x 5-1/4 x 1/8"

2шт.

18

G13813

OIL SEAL

- oil, bearing carrier, 2-1/2 x 3-1/4 x 1/2"

2шт.

19

171-205

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 1"

- bearing carrier, 3/8 x 1" N.F. flat hd.

4шт.

24

NLS

NO LONGER SERVICED

ASSY. - brake w/lining (See item 28)

2шт.

25

G45361

DRUM

ASSY. - brake, w/lining (See Ref. 28)

2шт.

26

211-21

BALL

- brake drum (1" dia.)

8шт.

27

G45468

BRAKE LINING

BAND ASSY. - brake, w/lining (See Ref. 28)

4шт.

28

G45391

SET

LINING KIT - brake (For 1 wheel)

2шт.

29

G48508

SPRING

- disc return (Orange)

4шт.

30

G48507

SPRING

- band return (Black)

4шт.

31

G46345

LINK

- brake band (Straight)

4шт.

32

G46344

LINK

- brake band (Offset)

4шт.

33

G49082

PIN,14.22mm OD x 40.03mm L

-, Serial Range: links-band

4шт.

34

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

4шт.

35

G1386

COVER - brake, L.H.

1шт.

35

G1387

COVER - brake, R.H.

1шт.

36

41-13

GUARD,Exp, 13/16"

- cover, 13/16" expansion

4шт.

37

G15801

BOLT

- anchor, brake band

2шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

39

A29719

STUD - cover, 1/2" N.F. x 2-13/16"

6шт.

40

G15458

STUD

- cover, 1/2" N.F. x 4-1/2"

2шт.

41

92-8

LOCK WASHER,1/2"

8шт.

42

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

8шт.

43

G46359

ROD - brake control

2шт.

44

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - brake rod

2шт.

45

132-26

COTTER PIN

PIN- split (Cotter), 3/32" x 3/4"

2шт.

46

G10943

DUST CAP

CAP - dust, brake rod hole

2шт.

47

G10709

NUT

- adjusting, brake rod

2шт.

48

25-118

NUT,1/2"-20, G5

- lock, adjusting nut, 1/2" N.F. hex.

2шт.
