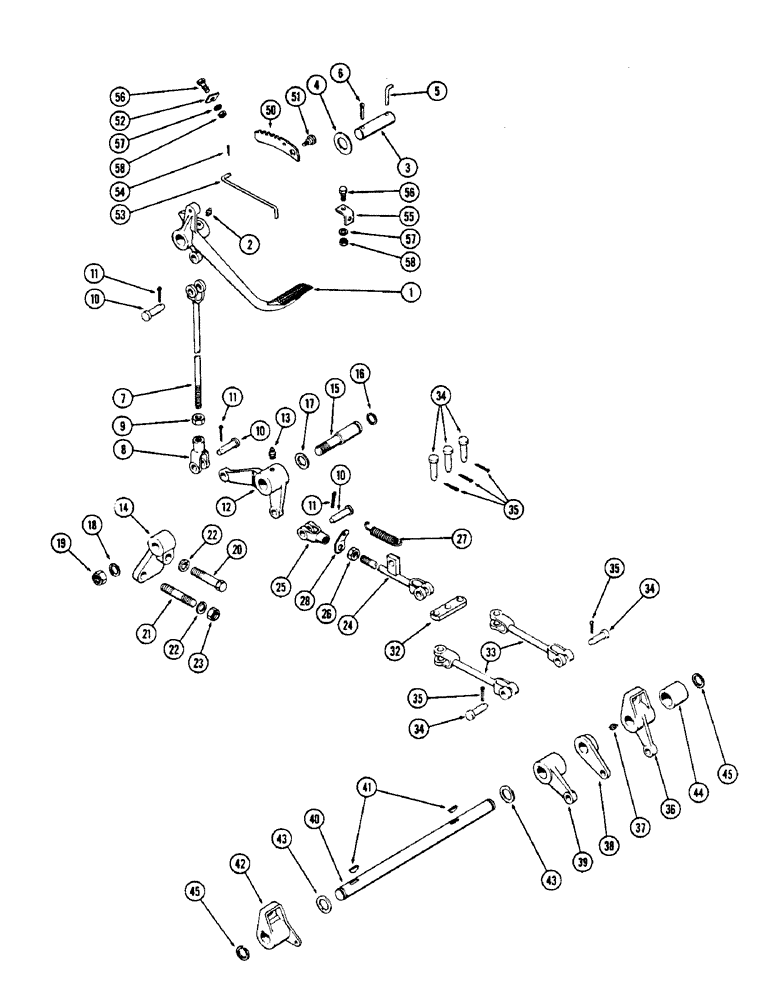

Запчасти Case W5A (128) - BRAKE CONTROLS (07) - BRAKES

1

A13600

PEDAL - brake

1шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

3

A12437

PIN - brake pedal pivot

1шт.

4

F62100

WASHER - pivot shaft, 1-3/32 x 1-7/8 x 10 Ga.

1шт.

5

A27275

LOCK - pivot pin

1шт.

6

135-342

GROOVED PIN,3/16" x 1 1/4", Type F

PIN - cotter, 3/16 x 1-1/4"

1шт.

7

A13601

ROD - brake, Serial Range: pedal-bellcrank

1шт.

8

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - brake rod end

1шт.

9

25-118

NUT,1/2"-20, G5

- yoke stop, 1/2" N.F. hex.

1шт.

10

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

3шт.

11

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Includes: Ref. 12 1/8" x 1"

3шт.

12

A13603

BELLCRANK - brake

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

14

A13602

BRACKET - bellcrank pivot pin, Includes: Ref. 15

1шт.

15

A13604

PIN - pivot, bellcrank

1шт.

16

A26949

RING, SNAP

RING - snap, bellcrank retaining

1шт.

17

F62102

WASHER - bellcrank, 1-3/32 x 1-1/2 x 16 Ga.

1шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

19

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

1шт.

20

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Bracket Hex, 5/8"-11 x 2", G5

1шт.

21

A29466

STUD - bracket, 5/8" N.C./N.F. x 3-1/2"

1шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

25-1010

NUT,5/8"-11, G5

1шт.

24

A13605

ROD - brake link

1шт.

25

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end

1шт.

26

25-118

NUT,1/2"-20, G5

- yoke stop, 1/2" N.F. half hex.

1шт.

27

A27688

VALVE SPRING

SPRING - brake pedal return

1шт.

28

A26656

CLIP - anchor, return spring

1шт.

32

A26710

BAR - brake equalizer

1шт.

33

A13608

LINK - brake shaft levers

2шт.

34

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

5шт.

35

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

5шт.

36

A13636

LEVER - brake, outer, R.H.

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

38

A13638

LEVER - clutch control, intermediate

1шт.

39

A13637

LEVER - brake, inner, R.H.

1шт.

40

A13631

SHAFT - brake

1шт.

41

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Brake shaft #15, 1/4" x 1"

2шт.

42

G1057

LEVER

- brake, L.H.

1шт.

43

B18145

WASHER

- brake shaft, 1-3/32 x 1-7/8 x 16 Ga.

2шт.

44

A13917

SPACER - brake shaft, 1-9/32 x 1-21/32 x 1-5/8"

1шт.

45

F62093

RING, SNAP

RING - snap, brake levers retaining

2шт.

50

A13433

RATCHET - parking brake

1шт.

51

A8018

STEP BOLT

STUD - ratchet pivot

1шт.

52

A13434

PAWL - parking brake

1шт.

53

A13432

ROD - ratchet link

1шт.

54

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

55

A13904

CLIP - rod anchor

1шт.

56

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Pawl and clip Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

57

92-5

LOCK WASHER,5/16"

2шт.

58

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.
