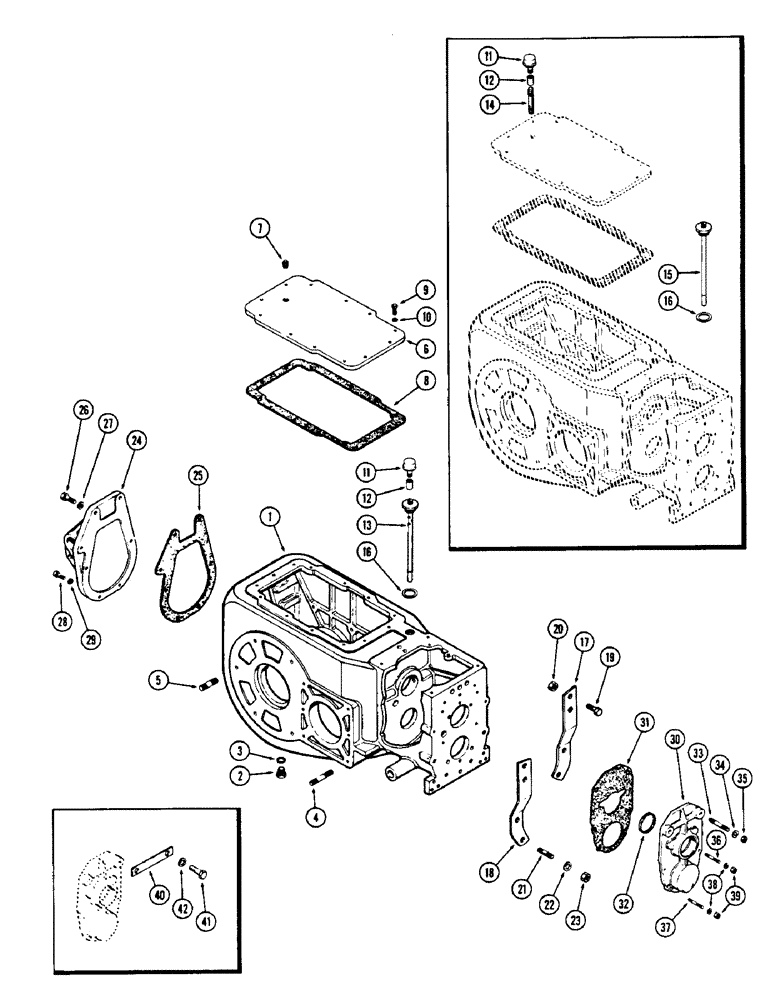

Запчасти Case W5A (124) - TRANSMISSION CASE AND COVERS (06) - POWER TRAIN

1

A37141

CASE

ASSY. - transmission

1шт.

2

A14280

PLUG

- drain

1шт.

3

A27927

OIL PAN GASKET SET

- drain plug

1шт.

4

A29719

STUD - brake cover, 1/2" N.C. x 2-13/16"

6шт.

5

A29715

STUD

- rear axle, 5/8" N.F. x 2-11/16"

10шт.

6

A13633

COVER - transmission case, top

1шт.

7

221-1002

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - cover, 1/4" P.T. sq. hd.

1шт.

8

G47006

GASKET

- cover

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

10

92-6

LOCK WASHER,3/8"

12шт.

11

A27173

BREATHER

- trans. case

1шт.

12

221-1327

X

CUOPLING - breather, 1/4" P.T.

1шт.

13

A19910

DIPSTICK

- oil gauge, w/breather

1шт.

14

221-1140

NIPPLE - 1/4 x 3-1/2" P.T. w/cover mtd. breather

1шт.

15

G10348

DIPSTICK

- oil level, w/cover mtd. breather

1шт.

16

G10351

GASKET

- dipstick, 1-1/4 x 1-1/2 x 3/32" copper asbestos

1шт.

17

A16524

TUBE

SUPPORT - rear, R.H.

1шт.

18

A16525

SUPPORT - rear, L.H.

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Supports Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

20

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

21

A27182

STUD

- mtg. supt., 1/2" N.C. x 2-1/16"

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

23

25-118

NUT,1/2"-20, G5

- 1/2" N.F., hex.

4шт.

24

A13634

COVER - transmission case, front

1шт.

25

G46850

GASKET - front cover

1шт.

26

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- front cover, 1/2 x 1-3/4" N.C. hex.

3шт.

27

92-8

LOCK WASHER,1/2"

3шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- front cover, 3/8 x 1-1/2" N.C. hex.

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

A13635

COVER ASSY

COVER - transmission case, rear

1шт.

31

G46849

GASKET

- cover

1шт.

32

G10311

COLLAR

- rear cover pilot

1шт.

33

A29466

STUD - rear cover, 5/8" N.F. x 2"

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

36

A29717

STUD

- rear cover, 3/8" N.F. x 1-1/2"

2шт.

37

G10710

STUD

- rear cover, 3/8" N.F. x 1-3/4"

2шт.

38

92-6

LOCK WASHER,3/8"

4шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

40

A14805

LOCKING STRAP - used w/bolts only

1шт.

41

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- rear cover, 1/2 x 1-3/4" N.C. hex, w/strap

2шт.

42

92-8

LOCK WASHER,1/2"

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8 x 45 degrees (In trans. case) (Not illust.)

2шт.
