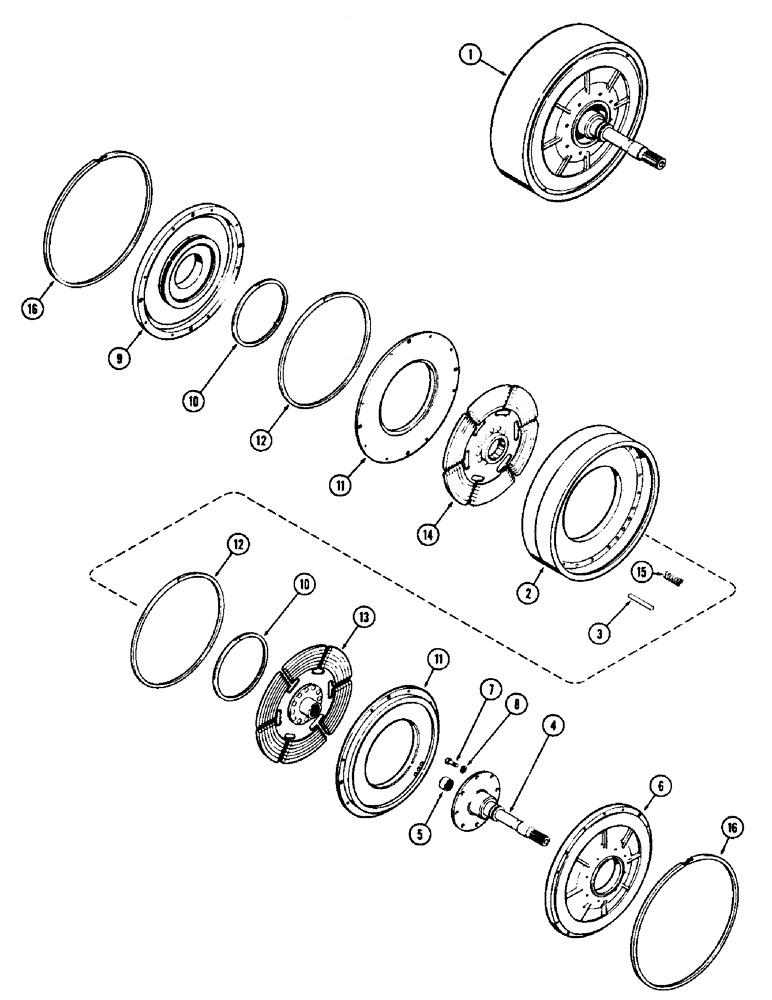

Запчасти Case W5A (118) - FORWARD AND REVERSE CLUTCH (06) - POWER TRAIN

1

A14818

CLUTCH ASSY. - forward & reverse, Includes: Ref. 2 - 16

1шт.

2

A14828

X

PLATE ASSY. - clutch pressure, Includes: Ref. 3

1шт.

3

A14829

AXLE PIN

PIN - drive, 3/8 x 2-3/8"

4шт.

4

A14819

SHAFT ASSY. - input, Includes: Ref. 5

1шт.

5

R831S

BEARING

BEARING - needle

1шт.

6

A14824

CYLINDER - clutch, front

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, , Input shaft Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

8

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

8шт.

9

A14825

SPARE PART CYLINDER - clutch-rear

1шт.

10

A14832

RING

RING - sealing, clutch cyl., 5-7/8" closed dia.

2шт.

11

A14830

PISTON ASSY.

PISTON - clutch

2шт.

12

A14831

RING

RING - sealing, piston, 10" closed dia.

2шт.

13

A14822

PLATE

PLATE ASSY. - forward clutch, w/facing

1шт.

13

A14822R

REMAN-CLUTCH PLATE

W5A Loader S/N 8174260 & Aft.

1шт.

13

A14822C

CORE-CLUTCH PLATE

Return Number

1шт.

14

A14823

PLATE

PLATE ASSY. - reverse clutch, w/facing

1шт.

15

A14827

VALVE SPRING

SPRING - clutch etractor, 1-7/8" free length

24шт.

16

A14826

X

RING - snap, cylinder retaining

2шт.
