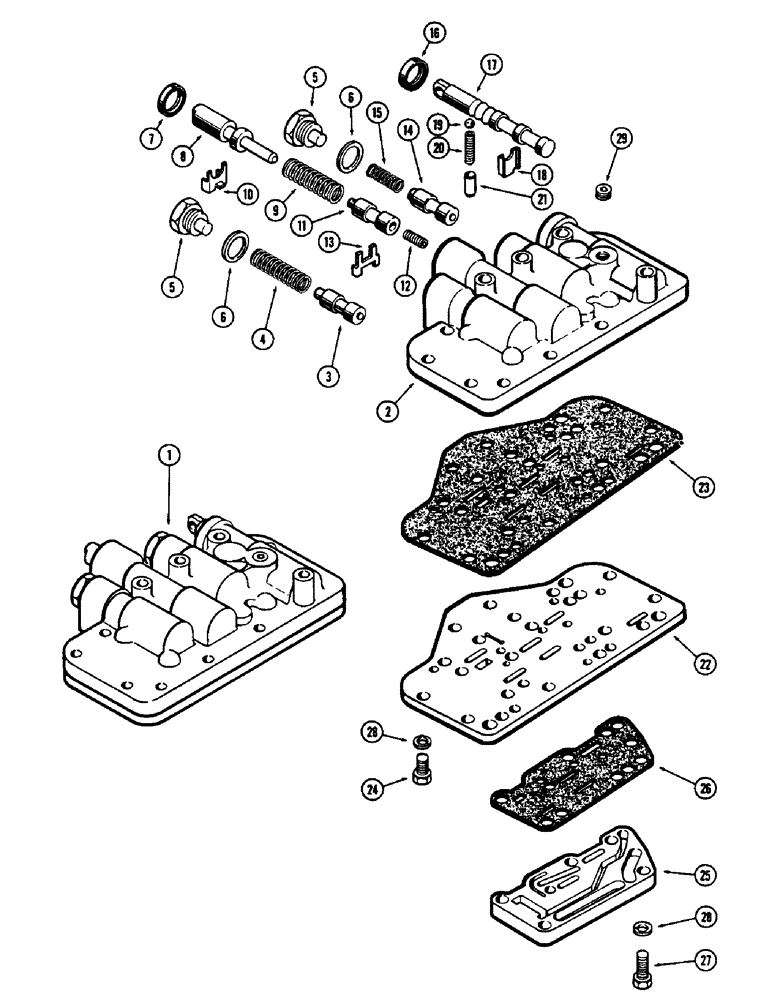

Запчасти Case W5A (116) - L30252 CONTROL VALVE (06) - POWER TRAIN

1

L30252

VALVE

ASSY. - control (Replaces A15104), Includes: Ref. 2 - 29

1шт.

1

A15104

VALVE

ASSY. - control (Can use L30252), Includes: Ref. 2 - 29

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order L30252)

1шт.

3

A14883

PLUNGER

VALVE - regulator

1шт.

4

A14885

VALVE SPRING

SPRING - regulator valve

1шт.

5

A14882

SCREW

- clutch supply valves

2шт.

6

G10964

WASHER

GASKET - valve retainer screw

2шт.

7

A14877

SEAL

- oil, inching valve

1шт.

8

A14873

PLUNGER

- inching valve

1шт.

9

A14874

VALVE SPRING

SPRING - outer inching valve

1шт.

10

A14876

STOP

- inching valve plunger

1шт.

11

A14878

PLUNGER

VALVE - inching

1шт.

12

A14879

VALVE SPRING

SPRING - inching valve locator

1шт.

13

A14880

STOP

- inching valve

1шт.

14

A14884

PLUNGER

VALVE - clutch supply regulator

1шт.

15

A14881

VALVE SPRING

SPRING - clutch supply valve

1шт.

16

A14863

OIL SEAL

SEAL - oil, selector valve

1шт.

17

L30255

SPOOL

VALVE - selector (For L30252 valve)

1шт.

17

A14872

X

VALVE - selector (For A15104 valve)

1шт.

18

A14866

STOP

- selector valve

1шт.

19

211-7

BALL,1/4" Dia

1шт.

20

A14865

SPRING

- detent plunger

1шт.

21

A14864

PLUNGER

- selector valve detent

1шт.

22

A14868

PLATE - valve body separator (Can use L30973)

1шт.

23

A14869

GASKET

- valve body separator plate (Can use L30974)

1шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

25

A14870

COVER - valve body

1шт.

26

A14871

GASKET

- valve body plate cover

1шт.

27

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

6шт.

28

92-5

LOCK WASHER,5/16"

8шт.

29

221-1661

PLUG

- pipe, 1/8" hex. (For L30252 valve)

2шт.

29

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. sckt. hd. (For A15104 valve)

2шт.
