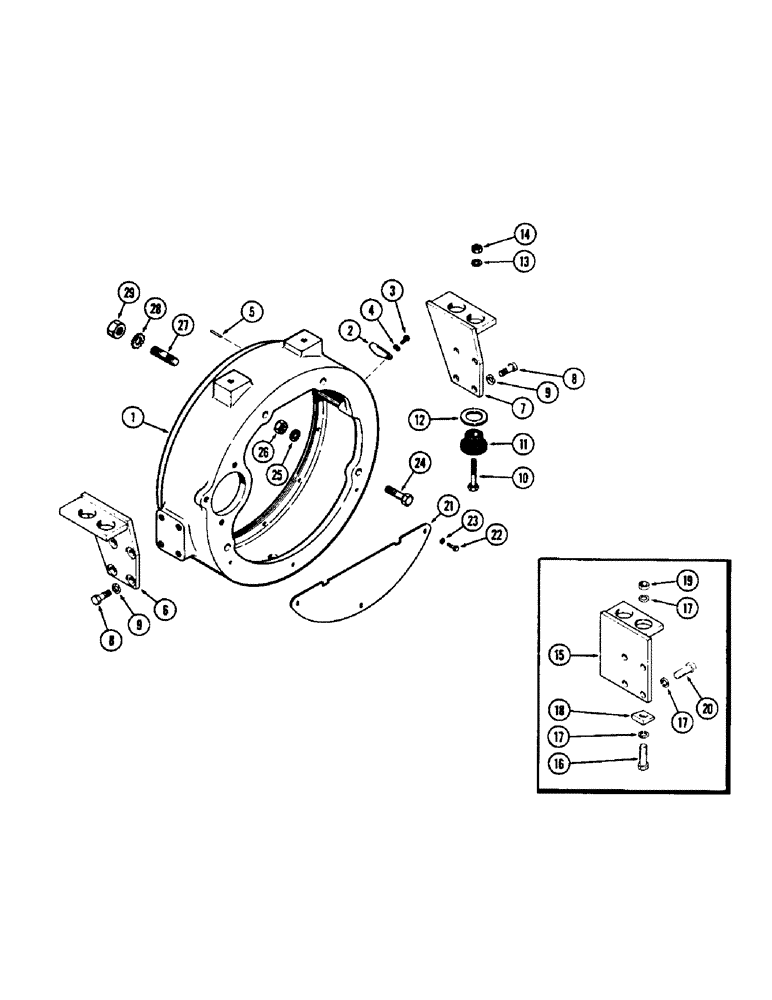

Запчасти Case W5A (108) - FLYWHEEL HOUSING (06) - POWER TRAIN

1

G1347

HOUSING

- flywheel

1шт.

2

A29068

COVER

- timing hole

1шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

6

A16409

SUPPORT - L.H., flywheel housing, Start Serial: 8165601

1шт.

7

A16408

SUPPORT - R.H., flywheel housing er), Start Serial: 8165601

1шт.

8

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

9

92-8

LOCK WASHER,1/2"

8шт.

10

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

- 1/2 x 3" N.F. hex.

4шт.

11

A16404

MOUNTING PARTS

MOUNT - rubber, engine, Start Serial: 8165601

4шт.

12

A16406

WASHER - engine mount, Start Serial: 8165601

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

15

A13664

SUPPORT - flywheel housing, L.H. & R.H., Serial Range: -80655601

2шт.

16

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex.

4шт.

17

92-8

LOCK WASHER,1/2"

12шт.

18

A10498

X

WASHER - bevel, flywheel housing support, Serial Range: -8165601

4шт.

19

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

21

G11716

COVER

- flywheel housing

1шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

- 1/4 x 1-3/4" N.C. hex.

3шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

24

A30135

BOLT

BOLT - engine to housing, 5/8 x 2-1/4" N.F. spec.

2шт.

25

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

26

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

27

A29333

STUD

- engine to housing, 5/8" N.F. x 2-1/4"

2шт.

28

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

29

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.
