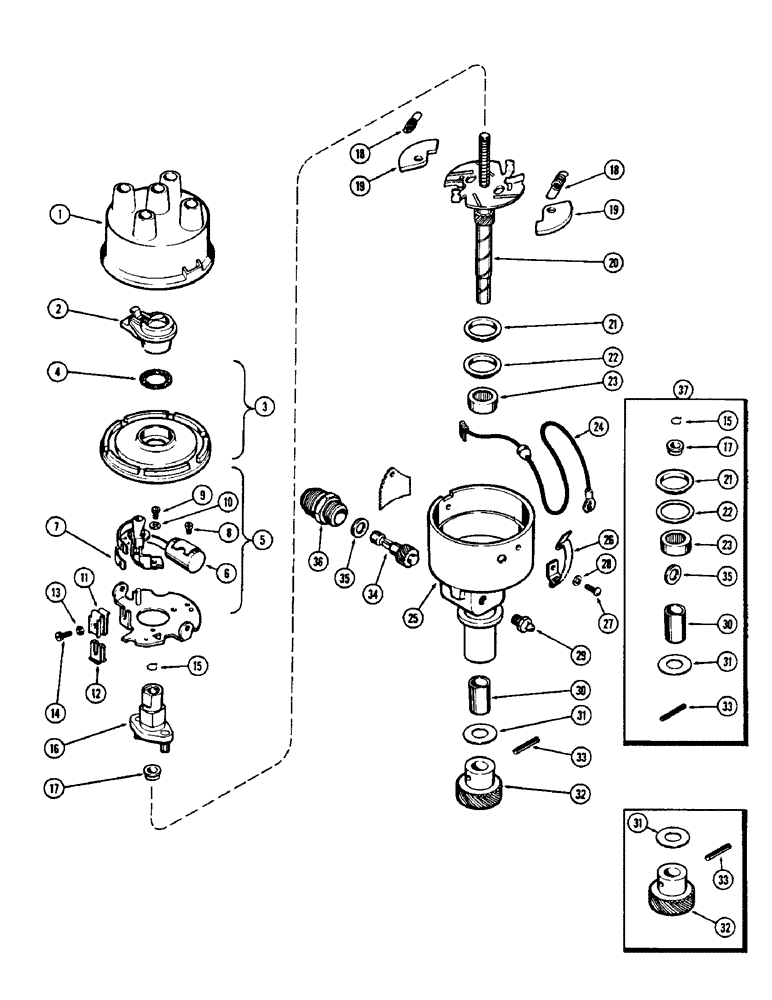

Запчасти Case W5A (104) - A18461 DISTRIBUTOR, (188) SPARK IGNITION ENGINE, USED W/ ALTERNATOR ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

A18461

DISTRIBUTOR

ASSY. - ignition (Eltra #IBT-4403A), Includes: Ref. 1 - 38

1шт.

1

A24564

CAP

ASSY. - distributor

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

ASSY. - seal, Includes: Ref. 4

1шт.

4

A24764

WASHER

- felt, plate

1шт.

5

A40330

PLATE

ASSY. - breaker plate, Includes: Ref. 6 - 14

1шт.

A40930

KIT

CONTACT KIT, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

CONDENSER - distributor

1шт.

7

NSS

NOT SOLD SEPARAT

BREAKER - contact

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - mounting, #6-32 x 5/32" fill hd.

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW - mounting, #8-32 x 3/16" fill hd.

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - plain, #8

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP - retaining, breaker

1шт.

12

NSS

NOT SOLD SEPARAT

INSULATOR - breaker clip

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - palin, #6

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - retainer, #6-32 x 3/8" hex.

1шт.

15

NSS

NOT SOLD SEPARAT

RING - snap-cam retaining (Order ref. 37)

1шт.

16

A24762

PLATE - cam and stop

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - cam (Order ref. 37)

1шт.

18

A24778

SPRING KIT

- governor (Set of 2)

1шт.

19

NSS

NOT SOLD SEPARAT

WEIGHT - governor

2шт.

20

A25979

SHAFT

- drive, distributor

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - thrust, inner upper

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - thrust, outer upper

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. 37)

1шт.

24

A25965

HARNESS

WIRE - lead, primary

1шт.

25

NSS

NOT SOLD SEPARAT

BASE ASSY. - distributor (Order A18461)

1шт.

26

A40329

SPRING

HINGE KIT - cap retainer (Set of 2)

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - mounting, #8-32 x 5/16" rd. hd.

2шт.

28

NSS

NOT SOLD SEPARAT

WASHER - lock, #8

2шт.

29

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 1/4"-28 x 90 degrees

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - bronze, shaft (Order ref. 37)

2шт.

31

NSS

NOT SOLD SEPARAT

WASHER - thrust lower (Order ref. 37 or 36)

1шт.

32

NSS

NOT SOLD SEPARAT

GEAR - drive (Order ref. 38)

1шт.

33

NSS

NOT SOLD SEPARAT

PIN - roll, drive gear (Order ref. 38)

1шт.

34

A24761

SHAFT

GEAR SHAFT - tachometer drive

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - thrust (Order ref. 37)

1шт.

36

A24781

HOUSING - tachometer drive gear

1шт.

37

A40326

PACKAGE, REPAIR

REPAIR KIT - drive shaft

1шт.

38

A40323

GEAR

REPAIR KIT - drive gear

1шт.
