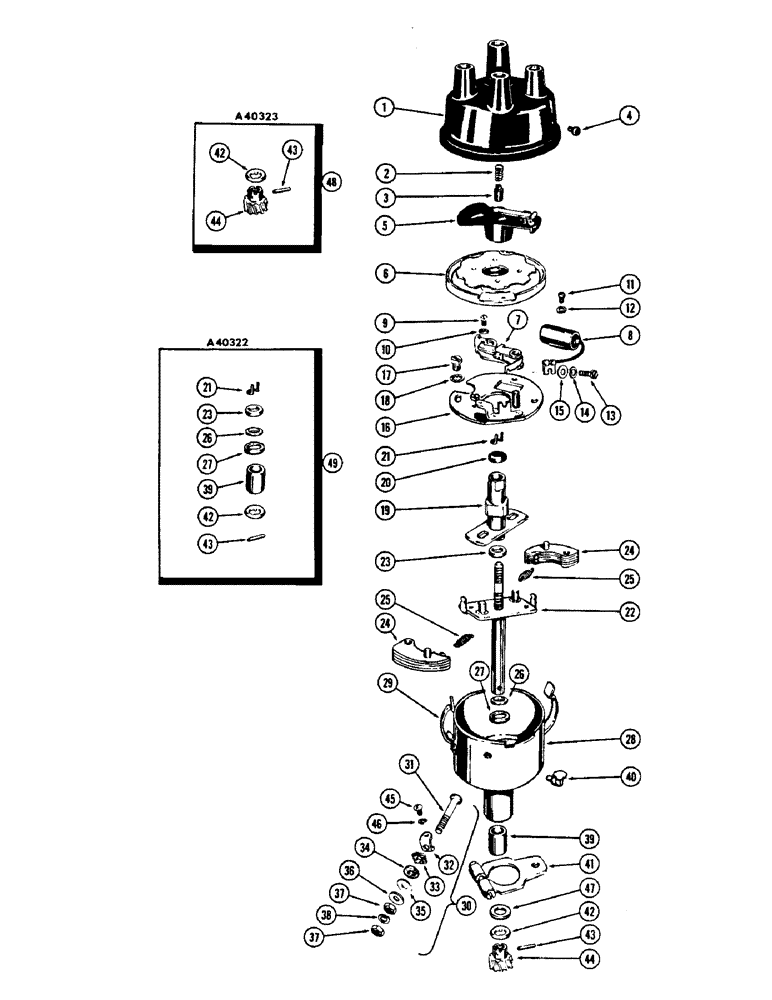

Запчасти Case W5A (102) - A30358 DISTRIBUTOR, (188) SPARK IGNITION ENGINE, USED W/ GENERATOR ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

A30358

DISTRIBUTOR

- ign. (Auto-Lite IAD-6003-2F), Includes: Ref. 1 - 47

1шт.

1

A8368

CAP

ASSY. - distributor, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - contact

1шт.

3

NSS

NOT SOLD SEPARAT

CONTACT - plunger

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - vent hole, cap (Rubber)

1шт.

5

A8369

ROTOR

- contact

1шт.

6

A25194

PLATE

COVER ASSY. - breaker plate

1шт.

A40929

KIT

CONTACT KIT, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

CONTACT ASSY. - (Point set)

1шт.

8

NSS

NOT SOLD SEPARAT

CONDENSER - distributor

1шт.

9

177-72

SCREW - #8-32 x 3/16" fill. sltd. hd.

1шт.

10

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

11

177-56

SCREW - #6-32 x 3/16" fill. sltd. hd.

1шт.

12

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

13

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- mach., #6-32 x 5/16" flat hd.

1шт.

14

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

15

195-6

WASHER,#6

- 5/32 x 5/16 x 3/64"

1шт.

16

A25196

PLATE

- breaker

1шт.

17

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- #10-32 x 5/16" fill. sltd. hd.

2шт.

18

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

19

A25193

CAM

ASSY. - distributor

1шт.

20

NSS

NOT SOLD SEPARAT

FELT - oil wick, cam sleeve

1шт.

21

A25180

RING, SNAP

RING - retaining, oil felt

1шт.

22

A25177

SHAFT

- drive

1шт.

23

A25197

SPACER

- cam

1шт.

24

NSS

NOT SOLD SEPARAT

WEIGHT - governor

2шт.

25

A25199

SPRING KIT

- governor weight (Set of 2)

1шт.

26

A24752

WASHER

- thrust, upper drive shaft

1шт.

27

A24753

WASHER

- thrust, lower drive shaft

1шт.

28

NSS

NOT SOLD SEPARAT

BASE ASSY. - distributor (Order A30358)

1шт.

29

NSS

NOT SOLD SEPARAT

CLAMP ASSY. - spring, Serial Range: cap-base

2шт.

30

A40321

KIT

STUD KIT - terminal, Includes: Ref. 31 - 35

1шт.

31

NSS

NOT SOLD SEPARAT

STUD - primary terminal

1шт.

32

NSS

NOT SOLD SEPARAT

CONNECTOR - terminal stud

1шт.

33

NSS

NOT SOLD SEPARAT

INSULATION - terminal stud

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - insulation, terminal stud

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - insulation, terminal stud

1шт.

36

195-12

WASHER,#10

- 7/32 x 7/16 x 1/16"

1шт.

37

129-27

NUT,Hex, #10 - 32

- hex. #10-32

2шт.

38

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

39

A24766

BUSHING

BEARING - drive shaft (Bronze)

2шт.

40

A24887

OILER - drive shaft

1шт.

41

A29989

ARM

ASSY. - distributor advance

1шт.

42

A25200

WASHER

- thrust, drive gear

1шт.

43

A25201

PIN

- retaining, drive gear

1шт.

44

G11714

GEAR

- drive, distributor

1шт.

45

175-56

SCREW - mach., #6-32 x 3/16" rd. hd. Slotted Truss Hd, #6-32 x 3/16"

1шт.

46

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

47

A30080

THRUST WASHER

- thrust, advance arm

1шт.

48

A40323

GEAR

KIT - distributor drive

1шт.

49

A40322

KIT

BEARING KIT - distributor

1шт.
