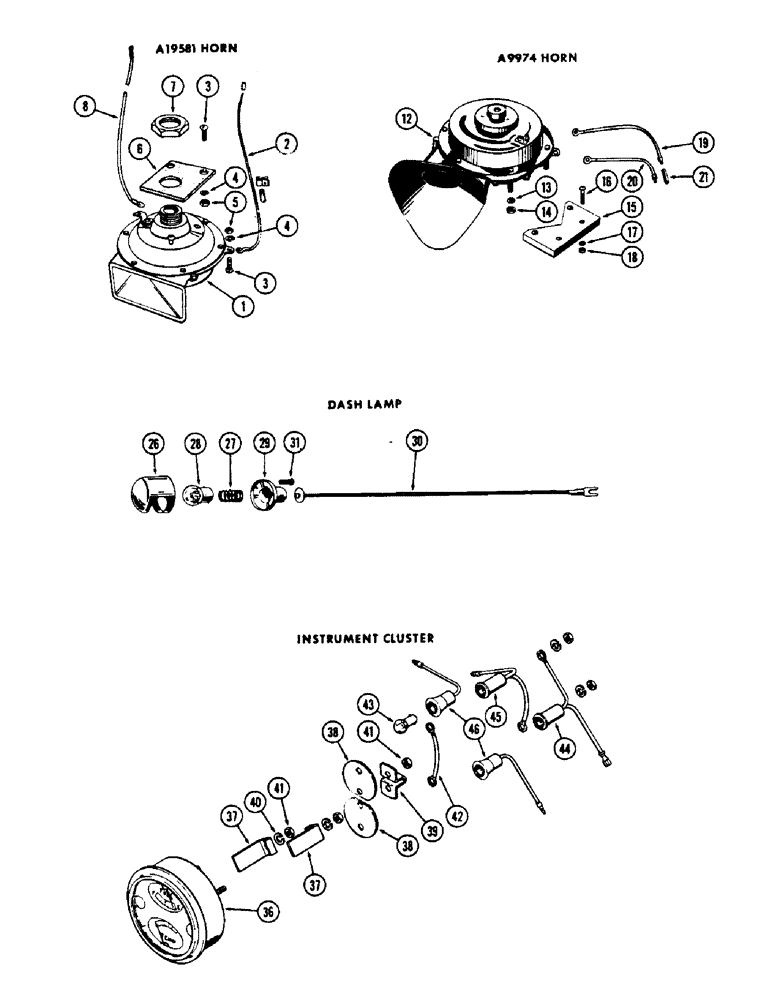

Запчасти Case W5A (088) - ELECTRICAL EQUIPMENT, A19581 HORN (04) - ELECTRICAL SYSTEMS

1

A19581

HORN

ASSY. - warning sound (Replaces A9974)

1шт.

2

A18924

WIRE -, Serial Range: horn-connector

1шт.

3

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10 x 1/2" N.C., rd. hd.

3шт.

4

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

5

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex.

3шт.

6

A19913

PLATE - mounting, horn

1шт.

7

A19827

X

NUT - retainer, horn mounting

1шт.

8

A13792

WIRE - horn to column connector

1шт.

12

A9974

HORN ASSY. - warning sound (Order A19581 horn), A9974 horn

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , A9974 horn 1/4"

2шт.

14

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex., A 9974 horn

2шт.

15

A12490

BLOCK - horn mounting insulating, A9974 horn

1шт.

16

174-102

SCREW,Sl Rnd Hd, #10 - 32 x 1"

- #10-32 x 1" rd. hd. mach., A9974 horn

2шт.

17

92-3

LOCK WASHER,#10

WASHER, LOCK, , A9974 horn #10

2шт.

18

129-27

NUT,Hex, #10 - 32

- hex., A9974 horn #10-32

2шт.

19

A13791

WIRE - horn to connector, A9974 horn

1шт.

20

A13792

WIRE - horn to horn button connector, A9974 horn

1шт.

21

A27213

CONNECTOR - 2 wire, A9974 horn

2шт.

A7642

LAMP

ASSY. - dash, Includes: Ref. 26 - 30

2шт.

26

B50319

COVER - lamp, dash

1шт.

27

B50262

SPRING - pressure, bulb, dash lamp

1шт.

28

71421

BULB,R5W, 12V, 5W

- lamp (12 volt), dash lamp

1шт.

29

B50320

SOCKET - lamp, dash

1шт.

30

A40161

WIRE - dash lamp

1шт.

31

187-1007

SCREW

- mach., #6-32 x 5/16" type F, dash lamp

4шт.

A13739

GAUGE ASSY.

CLUSTER ASSY. - instrument, Includes: Ref. 36 - 46

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - cluster (Order A13739), instrument cluster

1шт.

37

A14552

CLAMP - cluster mounting, instrument cluster

2шт.

38

A14551

INSULATOR - temperature & fuel gauge, instrument cluster

2шт.

39

A14550

INSULATOR - temperature gauge to fuel gauge, instrument cluster

1шт.

40

92-3

LOCK WASHER,#10

WASHER, LOCK, , Instrument cluster #10

4шт.

41

129-7

NUT,Hex, #10 - 24

- #10-32 hex., instrument cluster

8шт.

42

A14549

WIRE - temperature gauge to fuel gauge, instrument cluster

1шт.

43

A14553

BULB

- light, cluster (12 volt), instrument cluster

4шт.

44

A14548

SOCKET ASSY. - generator warning light, instrument cluster

1шт.

45

A14547

SOCKET ASSY. - oil pressure light, instrument cluster

1шт.

46

G45029

SOCKET ASSY. - light, fuel & temperature gauge, instrument cluster

2шт.
