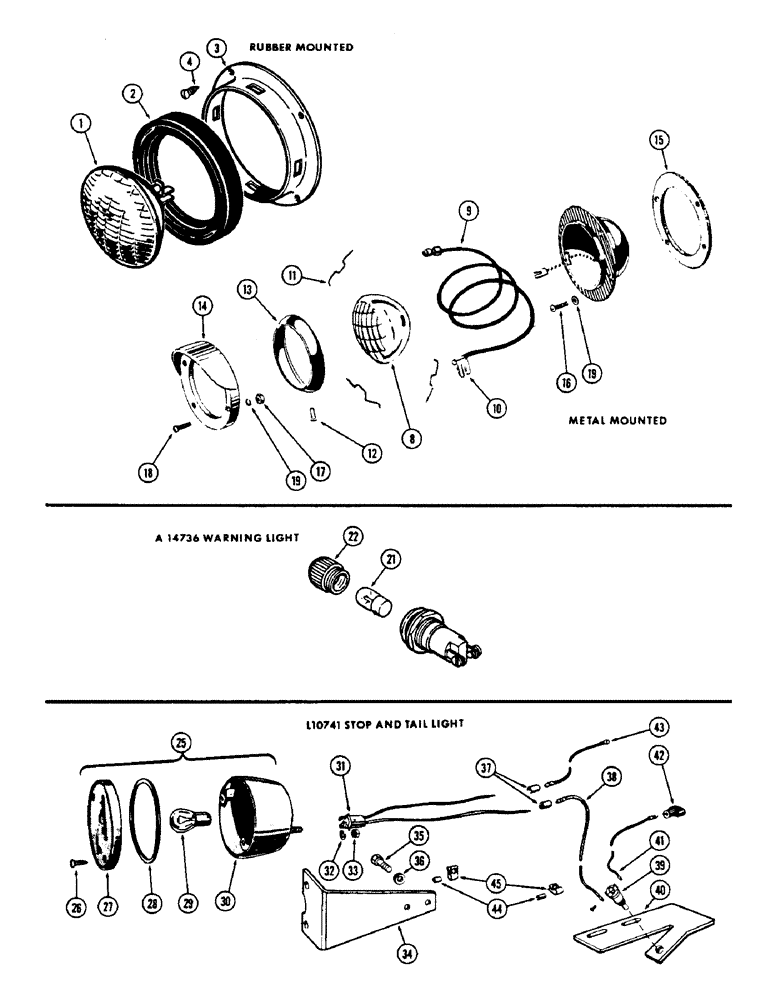

Запчасти Case W5A (086) - LIGHTING EQUIPMENT FRONT & REAR LAMPS, RUBBER MOUNTED (04) - ELECTRICAL SYSTEMS

A15932

X

LAMP ASSY. - front & rear, Includes: Ref. 1 - 3

4шт.

1

A24572

LAMP

UNIT - sealed, (12 volt) (Gasket not used w/this application)

1шт.

2

D31441

RETAINER

RING - mounting (Rubber)

1шт.

3

B50296

RING

- mounting (Metal)

1шт.

4

75-416

SCREW,Rd, 1/4" - 20 x 1"

- mach, 1/4 x 1" N.C. rd. hd.

16шт.

A14562

X

LAMP ASSY. - front & rear (For repairs order A15932 lamp), Includes: Ref. 8 - 13

4шт.

8

A24572

LAMP

UNIT - sealed (12 volt) (Gasket used w/this application) (Replaces A11280), metal mounted

1шт.

9

A56506

WIRE - 29" long, metal mounted

1шт.

10

32493

GEAR

TERMINAL, metal mounted

1шт.

11

73767

GROUND CABLE

SPRING - sealed unit retaining, metal mounted

3шт.

12

73768

SCREW - door retaining, metal mounted

1шт.

13

73772

DOOR - lamp, metal mounted

1шт.

14

R16791

RING - head lamp front mounting, metal mounted

2шт.

15

NLS

NO LONGER SERVICED

GASKET - head lamp front mounting, metal mounted

2шт.

16

76-424

SCREW - 1/4 x 1-1/2" N.F. rd. hd. mach. (Rear), metal mounted

8шт.

17

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex., metal mounted

8шт.

18

75-416

SCREW,Rd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. rd. hd. mach. (Front), metal mounted

8шт.

19

80682

LOCK WASHER,1/4"

Washer, Lock, , (Front & rear), metal mounted 1/4"

16шт.

A14736

LIGHT - warning, air cleaner, Includes: Ref. 21 and 22

1шт.

21

A15126

BULB

- light (12 volt), A14736 warning light

1шт.

22

A15127

LENS

CAP - light (Red), A14736 warning light

1шт.

A16804

ATTACHMENT - mach., stop & tail lamp, Includes: Ref. 25 - 30

1шт.

25

L10741

STOP LIGHT

LAMP ASSY. - stop & tail (Replaces A16732), L10741 stop and tail lamp, Includes: Ref. 26 - 30

2шт.

26

187-1020

SCREW,Cross Hd, #8 x 3/4"

- retaining, lens, #8 self-tapping, L10741 stop and tail lamp

2шт.

27

L30427

X

LENS - lamp (Red) (Replaces B50336), L10741 stop and tail lamp

1шт.

28

A40862

GASKET - lens (Replaces B50327), L10741 stop and tail lamp

1шт.

29

R11078

LAMP

BULB - light (12 volt), L10741 stop and tail lamp

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - lamp (Order L10741), L10741 stop and tail lamp

1шт.

31

A16731

PLUG

ASSY. - lamp wire, L10741 stop and tail lamp

1шт.

32

92-6

LOCK WASHER,3/8"

L10741 stop and tail lamp 3/8"

2шт.

33

25-104

NUT,1/4"-20, G5

L10741 Stop and tail lamp 1/4"-20, G5

2шт.

34

A16838

BRACKET - mounting, stop & tail lamp, L10741 stop and tail lamp

1шт.

35

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., L10741 stop and tail lamp

2шт.

36

92-6

LOCK WASHER,3/8"

L10741 stop and tail lamp 3/8"

2шт.

37

A27213

CONNECTOR - two wire, L10741 stop and tail lamp

2шт.

38

A16841

WIRE - lamp connector to stop switch, L10741 stop and tail lamp

1шт.

39

A16839

SWITCH ASSY. - braking stop light, L10741 stop and tail lamp

1шт.

40

A16837

SUPPORT - stop light switch, L10741 stop and tail lamp

1шт.

41

A16840

WIRE - stop switch to housing switch connector, L10741 stop and tail lamp

1шт.

42

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire, L10741 stop and tail lamp

1шт.

43

A12477

WIRE - tail lamp connector to light switch, L10741 stop and tail lamp

1шт.

44

A12458

SLEEVE

LOOM - lamp wire, L10741 stop and tail lamp

2шт.

45

A7922

CLIP

- wire retaining, L10741 stop and tail lamp

2шт.
