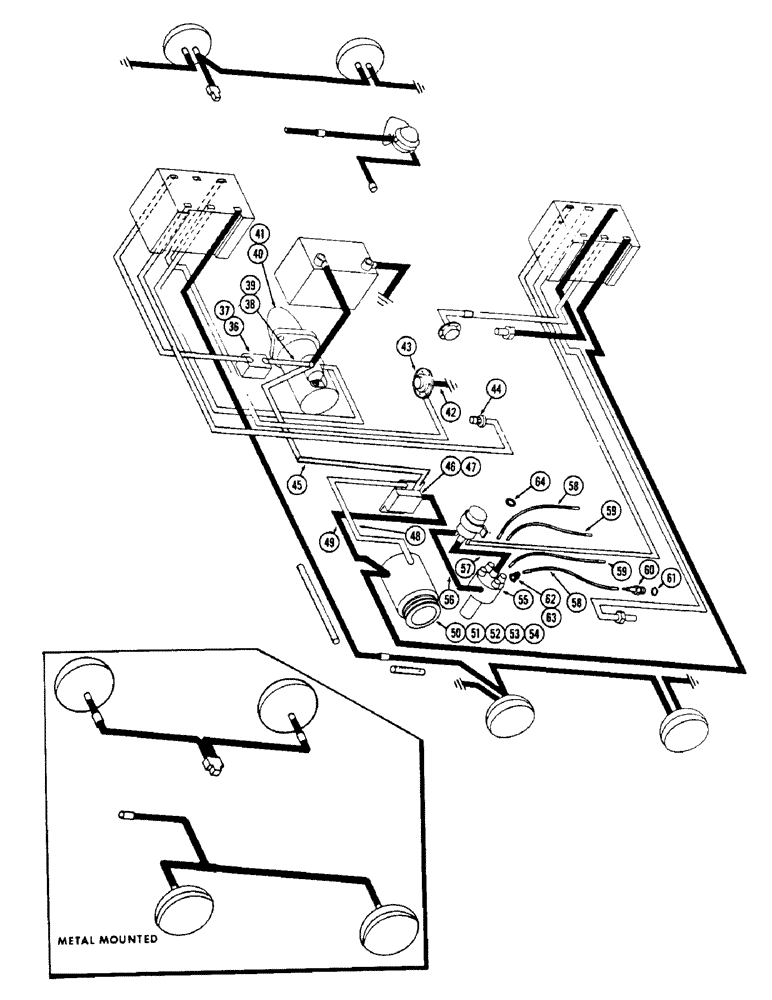

Запчасти Case W5A (082) - ELECTRICAL EQUIPMENT AND WIRING, (188) SPARK IGNITION ENGINE W/ GENERATOR SYSTEM (04) - ELECTRICAL SYSTEMS

36

A22877

BREAKER,40A

- circuit

1шт.

37

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - mach., #10-24 x 3/4" rd. hd.

2шт.

38

A18463

WIRE - circuit breaker to starter solenoid

1шт.

39

A18467

LOOM - breaker wire

1шт.

40

A36581

MOTOR ASSY. - starter (Repairs, Fig. 92)

1шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

42

A26893

WIRE - air cleaner, Serial Range: warning-ground

1шт.

43

A14739

SWITCH ASSY. - air cleaner warning

1шт.

44

A13794

TRANSMITTER

UNIT - sending, engine oil pressure

1шт.

45

A15949

WIRE - starter solenoid to regulator "F" term.

1шт.

46

A36194

REGULATOR

ASSY. - voltage (12 volt - 20 amp.)

1шт.

47

11-424

BOLT (MACHINE)

BOLT - 1/4 x 1-1/2" N.C. carr.

3шт.

48

A13906

WIRE - reg. "B" term. to gen. "F" term.

1шт.

49

A13905

WIRE - reg. "A" term. to gen. "A" term.

1шт.

50

A36195

GENERATOR - engine (Repairs, Fig. 96)

1шт.

51

G11344

STRAP - generator adjusting

1шт.

52

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

53

G2131

X

BRACKET - mounting, generator

1шт.

54

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

55

A30358

DISTRIBUTOR

ASSY. - engine (Repairs, Fig. 102)

1шт.

56

G13085

ELECTRICAL WIRE

WIRE -, Serial Range: coil-distributor

1шт.

57

G44045

WIRE - coil to distributor cap

1шт.

58

G44044

ELECTRICAL WIRE

WIRE - plug, #1 & #4 cylinders

2шт.

59

A29994

CABLE

WIRE - plug, #2 & #3 cylinders

2шт.

60

G44840

SPARK PLUG

PLUG ASSY. - spark, ignition

4шт.

61

G46839

GASKET

- spark plug, Includes: Ref. 61

1шт.

62

A29338

COVER

NIPPLE - plug & coil wire at distributor

5шт.

63

A46803

FLANGE

NIPPLE - wire, coil

1шт.

64

A30109

WASHER

RING - tie, spark plug wires

1шт.

A7922

CLIP

- wire, rear lamp & coil

4шт.

A12454

CLIP

- L.H. wire assy. to fuel tank support

2шт.

A12458

SLEEVE

LOOM - used with A12475 wire (See Fig. 80)

3шт.

A26697

CLIP - wire assy. to clutch housing

1шт.

A26781

CLIP - vacuum swt. wire at fuel tank support

1шт.

A27071

CLIP - wire assy. to R.H. & L.H. frame

3шт.

A27164

LOOM - rear lamp wire A12475 (See Fig. 80)

1шт.
