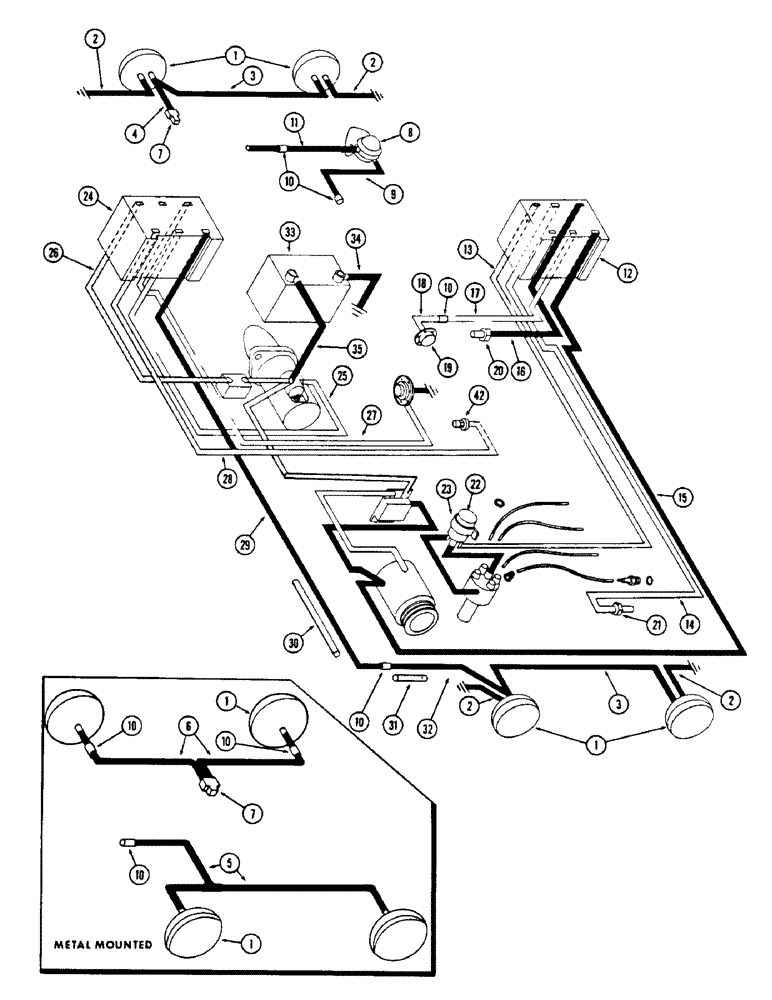

Запчасти Case W5A (080) - ELECTRICAL EQUIPMENT AND WIRING, (188) SPARK IGNITION ENGINE W/ GENERATOR SYSTEM (04) - ELECTRICAL SYSTEMS

1

A15932

X

LAMP ASSY. - front & rear (Repairs, Fig. 86)

4шт.

2

A51941

SHAFT

WIRE - ground, frt. & rear lamps (Rubber mtd.)

4шт.

3

A15943

WIRE - cross, frt. & rear lamp (Rubber mtd.)

2шт.

4

A15942

WIRE - frt. L.H. lamp to connector (Rubber mtd.)

1шт.

5

A12475

WIRE ASSY. - conn. to rear lamp (Metal mtd.)

1шт.

6

A13790

WIRE - front lamps to conn. (Metal mtd.)

2шт.

7

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

1шт.

8

A19581

HORN

ASSY. - warning sound (Replaces A9974) (Repairs, Fig. 88)

1шт.

9

A13791

WIRE - horn to panel connector

1шт.

10

A27213

CONNECTOR - two wire

4шт.

11

A13792

WIRE - horn to button wire connector

1шт.

12

A15944

PLUG ASSY. - wire, R.H., Includes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE -, Serial Range: plug-coil

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE - plug to engine temperature sender

1шт.

15

NSS

NOT SOLD SEPARAT

WIRE - plug to regulator "A" terminal

1шт.

16

NSS

NOT SOLD SEPARAT

WIRE - plug to converter temperature sender

1шт.

17

NSS

NOT SOLD SEPARAT

WIRE - plug to fuel sender connector

1шт.

18

A13793

WIRE - connector to fuel sender

1шт.

19

A13669

SENDER UNIT

SENDING UNIT - fuel tank

1шт.

20

A13795

SENDER UNIT

SENDING UNIT - converter temperature

1шт.

21

A13796

X

SENDING UNIT - engine temperature

1шт.

22

A33438

COIL

ASSY. - ignition, Includes: Ref. 23

1шт.

23

G46106

BRACKET

CLAMP - mounting coil

1шт.

24

A18465

PLUG ASSY. - wire, L.H., Includes: Ref. 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

WIRE - plug to starter solenoid

1шт.

26

NSS

NOT SOLD SEPARAT

WIRE - plug to circuit breaker

1шт.

27

NSS

NOT SOLD SEPARAT

WIRE - plug to air cleaner switch

1шт.

28

NSS

NOT SOLD SEPARAT

WIRE - plug to engine oil pressure sender

1шт.

29

NSS

NOT SOLD SEPARAT

WIRE - plug to rear L.H. lamp

1шт.

30

A27201

LOOM - lamp wire

1шт.

31

A27164

LOOM - lamp wire

1шт.

32

A15948

ELECTRICAL WIRE

WIRE - rear L.H., Serial Range: lamp-connector

1шт.

33

M20204

X

BATTERY - 12 volt

1шт.

34

A19659

CABLE - ground, battery

1шт.

35

A9168

CABLE

- battery to starter solenoid

1шт.
