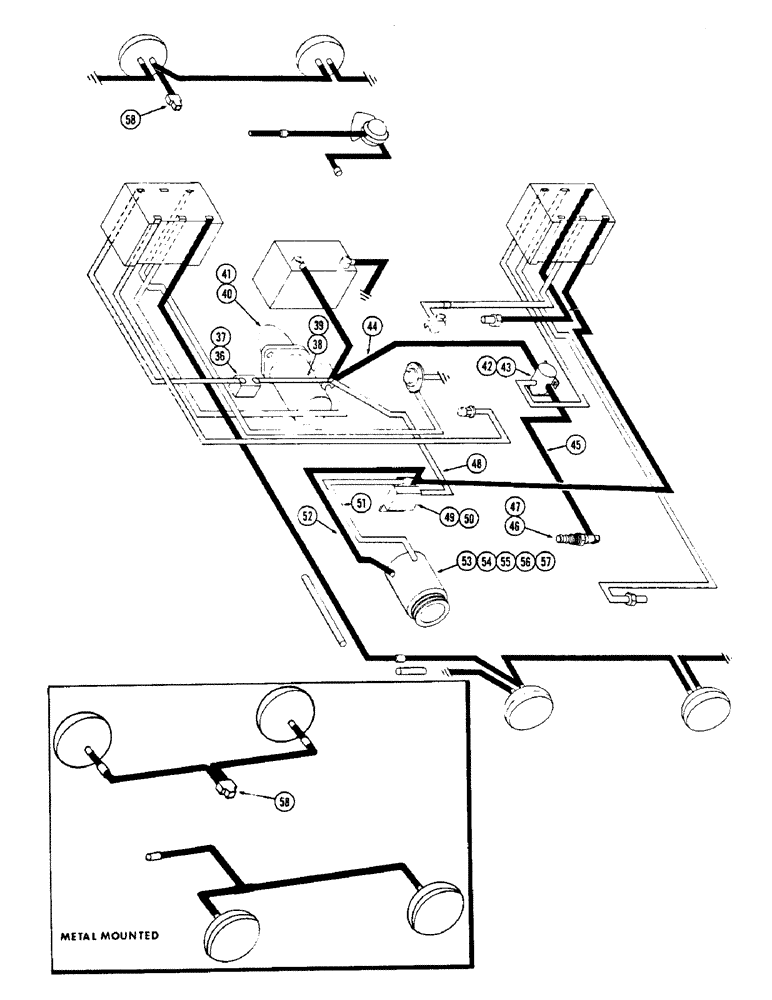

Запчасти Case W5A (078) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

36

A22877

BREAKER,40A

- circuit

1шт.

37

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - mach., #10-24 x 3/4" rd. hd.

2шт.

38

A18463

WIRE - circuit breaker to starter solenoid

1шт.

39

A18467

LOOM - breaker to starter wire

1шт.

40

A36583

STARTER MOTOR

MOTOR ASSY. - starter (Repairs, Fig. 90)

1шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

42

A57069

SOLENOID

- heater switch

1шт.

43

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

44

A36896

CABLE PULLING GRIP

CABLE - solenoid to starter solenoid

1шт.

45

A21483

CABLE

- solenoid to manifold heater

1шт.

46

A24396

X

HEATER - manifold

1шт.

47

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

48

A15949

WIRE - starter solenoid to regulator "B" term.

1шт.

49

A36564

X

REGULATOR - voltage (12 volt - 25 amp.)

1шт.

50

11-424

BOLT (MACHINE)

BOLT - sq. neck, 1/4 x 1-1/2" N.C. rd. hd.

4шт.

51

A13906

WIRE - regulator "F" term. to generator "F" term.

1шт.

52

A13905

WIRE - regulator "G" term. to generator "A" term.

1шт.

53

A36563

GENERATOR

ASSY. - engine (Repairs, Fig. 94)

1шт.

54

A37017

STRAP

- adjusting, generator

1шт.

55

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

56

G2131

X

BRACKET - mounting, generator

1шт.

57

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

58

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

1шт.

A7922

CLIP

- wire, rear lamps & coil

4шт.

A12454

CLIP

- L.H. wire assy. to fuel tank support

2шт.

A12458

SLEEVE

LOOM - used with A12475 wire assy. (See Fig. 76)

3шт.

A26697

CLIP - wire assy. to clutch hsg.

1шт.

A27033

CLIP - vacuum swt. wire at fuel tank support

1шт.

A27164

LOOM - used with A12475 wire (See Fig. 76)

1шт.

A28019

CLIP - wire assemblies to L.H. & R.H. side plates

6шт.
