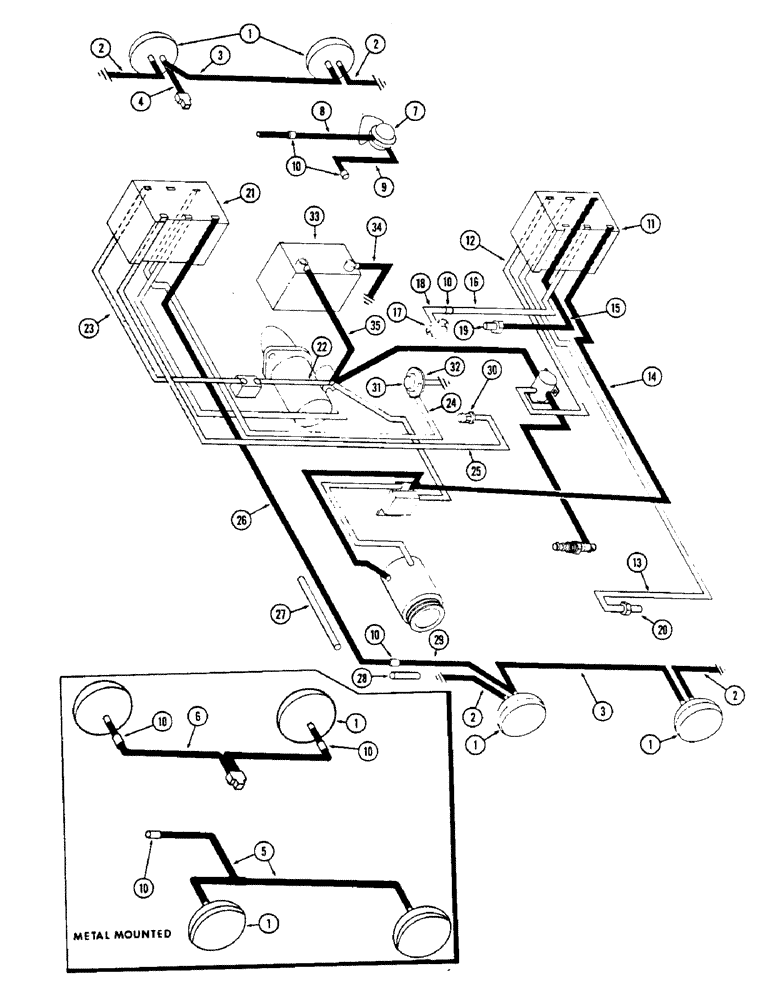

Запчасти Case W5A (076) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A15932

X

LAMP ASSY. - front & rear (Repairs, Fig. 86)

4шт.

2

A15941

ELECTRICAL WIRE

WIRE - ground, frt. & rear lamp (Rubber mtd.)

4шт.

3

A15943

WIRE - cross, frt. & rear lamp (Rubber mtd.)

2шт.

4

A15942

WIRE - frt. L.H. lamp to panel conn. (Rubber mtd.)

1шт.

5

A12475

WIRE ASSY. - rear lamp (Metal mtd.)

1шт.

6

A13790

WIRE - frt. lamp to conn. (Metal mtd.)

1шт.

7

A19581

HORN

ASSY. - warning sound (Replaces A9974) (Repairs, Fig. 88)

1шт.

8

A13792

WIRE - horn to horn button

1шт.

9

A13791

WIRE - horn to panel connector

1шт.

10

A27213

CONNECTOR - wire, two

4шт.

11

A15944

PLUG ASSY. - wire, R.H., Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - plug to manifold heater solenoid

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - plug to engine temperature sender

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE - plug to voltage regulator, "G" terminal

1шт.

15

NSS

NOT SOLD SEPARAT

WIRE - plug to converter temperature unit

1шт.

16

NSS

NOT SOLD SEPARAT

WIRE - plug to fuel sender connection

1шт.

17

A13669

SENDER UNIT

SENDING UNIT - fuel tank

1шт.

18

A13793

WIRE - fuel, Serial Range: sender-connector

1шт.

19

A13795

SENDER UNIT

SENDING UNIT - converter temperature

1шт.

20

A13796

X

SENDING UNIT - engine temperature

1шт.

21

A18465

PLUG ASSY. - wire, L.H., Includes: Ref. 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

WIRE - plug to starter solenoid

1шт.

23

NSS

NOT SOLD SEPARAT

WIRE - plug to circuit breaker

1шт.

24

NSS

NOT SOLD SEPARAT

WIRE - plug to air cleaner switch

1шт.

25

NSS

NOT SOLD SEPARAT

WIRE - plug to engine oil pressure unit

1шт.

26

NSS

NOT SOLD SEPARAT

WIRE - plug to rear R.H. light connection

1шт.

27

A27201

LOOM - rear light wire

1шт.

28

A27164

LOOM - rear lamp, Serial Range: wire-connections

1шт.

29

A15948

ELECTRICAL WIRE

WIRE - rear R.H., Serial Range: lamp-connector

1шт.

30

A13794

TRANSMITTER

SENDING UNIT - engine oil pressure

1шт.

31

A14739

SWITCH ASSY. - air cleaner warning

1шт.

32

A26893

WIRE - warning, Serial Range: switch-ground

1шт.

33

M20204

X

BATTERY - electrical system (12 volt)

1шт.

34

A19659

CABLE - battery ground

1шт.

35

A26712

CABLE - battery to starter solenoid

1шт.
