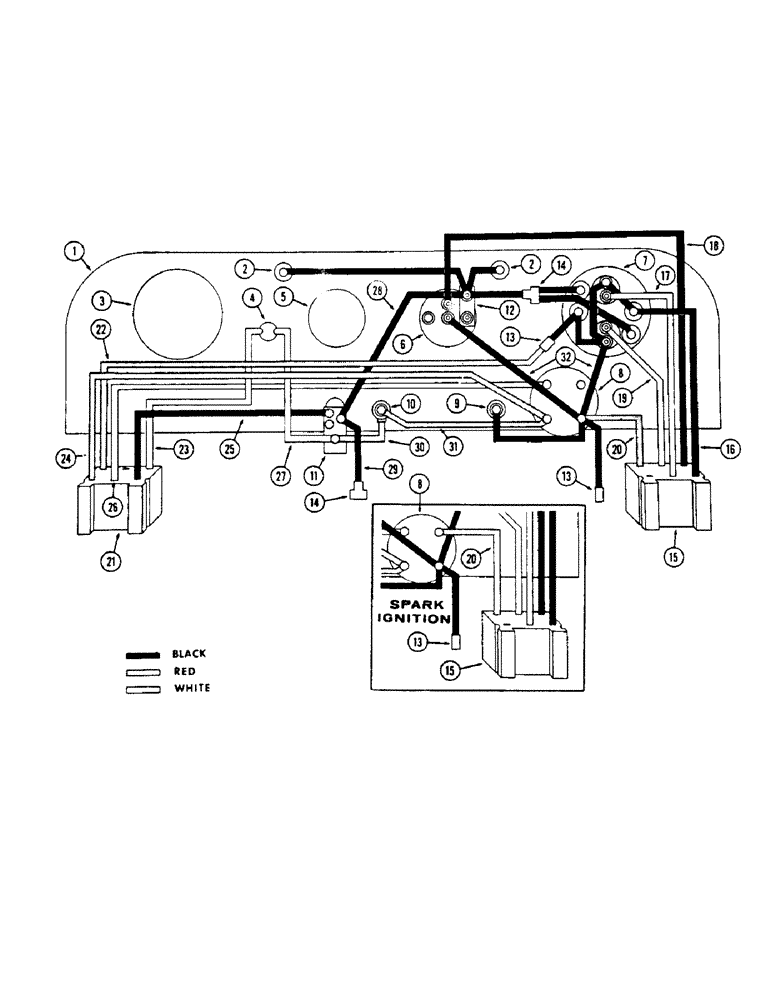

Запчасти Case W5A (074) - INSTRUMENTS AND WIRING (04) - ELECTRICAL SYSTEMS

1

A16830

PANEL - instrument

1шт.

2

A7642

LAMP

ASSY. - dash (Repairs, Fig. 88)

2шт.

3

A11190

TACHOMETER

ASSY.

1шт.

4

A14736

LIGHT ASSY. - warning

1шт.

5

A56447

ELECTRICAL GAUGE

GAUGE ASSY. - oil pressure, converter

1шт.

6

A13756

GAUGE

ASSY. - oil temperature, converter

1шт.

7

A13739

GAUGE ASSY.

CLUSTER ASSY. - instrument panel (Repairs, Fig. 88)

1шт.

8

A24510

SWITCH

- starting (Diesel) includes keys

1шт.

8

A21487

X

SWITCH ASSY. - ignition & starting

1шт.

8

A11373

SWITCH

- ignition & starter

1шт.

9

NSS

NOT SOLD SEPARAT

LIGHTER ASSY. - cigarette

1шт.

10

A8006

NOZZLE HOLDER

HOLDER ASSY. - fuse

1шт.

11

A20201

SWITCH

ASSY. - light

1шт.

12

A9348

BLOCK - terminal

1шт.

13

A27213

CONNECTOR - wire, single line

2шт.

14

A8210

CONNECTOR, ELEC

CONNECTOR - wire, double line

2шт.

15

A15661

SOCKET ASSY. - panel wire, R.H., Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

WIRE - socket to generator light

1шт.

17

NSS

NOT SOLD SEPARAT

WIRE - socket to fuel gauge

1шт.

18

NSS

NOT SOLD SEPARAT

WIRE - socket to converter temperature gauge

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE - socket to engine temperature gauge

1шт.

20

NSS

NOT SOLD SEPARAT

WIRE - socket to ign. swt., sol. term. (Diesel)

1шт.

20

NSS

NOT SOLD SEPARAT

WIRE - socket to ign. swt., ign. term. (Gasoline)

1шт.

21

A16996

SOCKET ASSY. - panel wire, L.H., Includes: Ref. 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

WIRE - socket to engine oil pressure gauge

1шт.

23

NSS

NOT SOLD SEPARAT

WIRE - socket to air filter light

1шт.

24

NSS

NOT SOLD SEPARAT

WIRE - socket to ignition swt., "B" terminal

1шт.

25

NSS

NOT SOLD SEPARAT

WIRE - socket to fuse holder

1шт.

26

NSS

NOT SOLD SEPARAT

WIRE - socket to ign. swt., st. term.

1шт.

27

A15662

WIRE - air filter light to light swt., "A" term

1шт.

28

A13754

ELECTRICAL WIRE

WIRE - light switch to terminal block

1шт.

29

A13753

WIRE - light switch, block terminal and ignition switch to wire connectors

3шт.

30

A13751

WIRE - light switch to fuse holder

1шт.

31

A13752

WIRE - fuse holder to ign. swt. "B" terminal

1шт.

32

A13755

WIRE - converter temperature gauge and engine temperature gauge to ignition switch "IGN" term.

2шт.
