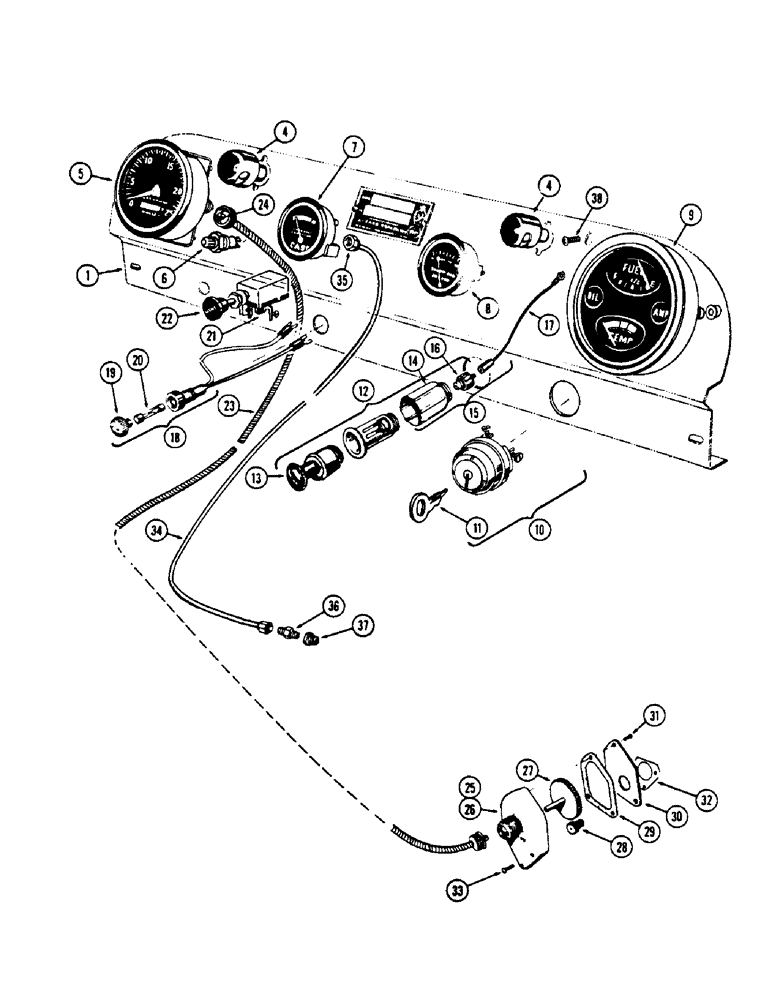

Запчасти Case W5A (072) - INSTRUMENT PANEL AND INSTRUMENTS (04) - ELECTRICAL SYSTEMS

1

A16830

PANEL - instrument (Uses A21487 or A24510 switch)

1шт.

1

A13738

PANEL - instrument (Uses A11373 switch)

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach., 1/4 x 5/8" N.C. truss hd.

4шт.

131-118

NUT - 1/4" N.C., Tinnerman (J" type)

4шт.

4

A7642

LAMP

ASSY. - dash (Repairs Fig. 88)

2шт.

5

A11190

TACHOMETER

ASSY. - w/hourmeter (12 volt)

1шт.

6

A14736

LIGHT ASSY. - warning, air filter

1шт.

7

A56447

ELECTRICAL GAUGE

GAUGE ASSY. - oil pressure, converter

1шт.

8

A13756

GAUGE

ASSY. - oil temperature, converter

1шт.

9

A13739

GAUGE ASSY.

CLUSTER ASSY. - instrument (Repairs, Fig. 88)

1шт.

10

A24510

SWITCH

ASSY - ignition & starting w/keys (Diesel) (9/16" threads), Includes: Ref 11

1шт.

11

A24509

KEY

- ignition switch

2шт.

10

A21487

X

SWITCH ASSY. - ignition & starting (9/16" threads), Includes: Ref. 11

1шт.

11

A20621

KEY

- switch (Triangular-shaped head)

1шт.

10

A11373

SWITCH

- ignition & starter (Some gasoline) (1" threads), Includes: Ref. 11

1шт.

11

A20346

KEY

- switch

1шт.

12

NSS

NOT SOLD SEPARAT

LIGHTER ASSY. - cigarette, Includes: Ref. 13 - 17

1шт.

13

G44919

UNIT - pop-out, lighter

1шт.

14

G46381

SHELL - clamping

1шт.

15

G44916

SOCKET

ASSY. - lighter, Includes: Ref. 16 and 17

1шт.

16

G44918

BREAKER ASSY. - circuit

1шт.

17

G44022

ELECTRICAL WIRE

CABLE - lighter

1шт.

18

A8006

NOZZLE HOLDER

HOLDER ASSY. - fuse, Includes: Ref. 19

1шт.

19

A10958

CAP

- fuse holder

1шт.

20

223-20

FUSE,20 Amp, Type SFE

1шт.

21

A20201

SWITCH

ASSY. - light, Includes: Ref. 22

1шт.

22

A7817

KNOB

- light switch

1шт.

23

A15660

CABLE ASSY. - tachometer, Includes: Ref. 24

1шт.

24

A15907

CABLE - tachometer inner

1шт.

25

A36818

DRIVE

ASSY. - tachometer, Includes: Ref. 26 - 31

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - tachometer drive

1шт.

27

A36522

GEAR WHEEL

GEAR AND SHAFT ASSY. - tachometer drive

1шт.

28

G46306

GEAR WHEEL

GEAR - drive

1шт.

29

G46882

GASKET

-, Serial Range: cover-housing

1шт.

30

G46307

COVER - back, tachometer housing

1шт.

31

187-1108

SCREW - mach., #8-32 x 3/8" pan hd.

3шт.

32

G46878

GASKET

- mounting, tachometer drive

1шт.

33

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

- sems, #8 x 1" pan hd.

3шт.

34

A11368

TUBE - oil, converter pressure gauge

1шт.

35

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - 1/8 x 1/8" P.T. (At gauge)

1шт.

36

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR - 1/8 x 1/8" P.T. (At converter)

1шт.

37

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

38

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach., 1/4 x 5/8" Phillips hd.

4шт.
