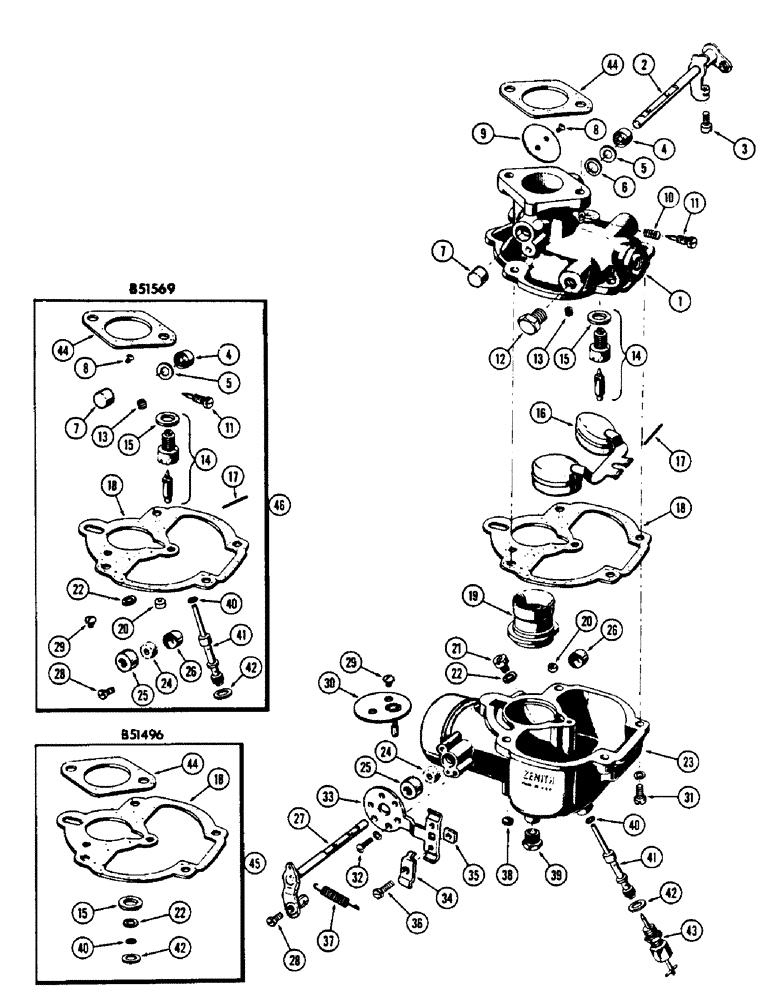

Запчасти Case W5A (068) - A35817 CARBURETOR, (188) SPARK IGNITION ENGINE, (USE WITH OIL BATH AIR CLEANER) (03) - FUEL SYSTEM

A35817

CARBURETOR ASSY. - engine fuel, Includes: Ref. 1 - 43

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A35817)

1шт.

2

B51245

SHAFT

LEVER ASSY. - throttle, Includes: Ref. 3

1шт.

3

B51581

SCREW - throttle stop

1шт.

4

B51528

SEAL

- throttle shaft

1шт.

5

B51416

RETAINER

- seal, throttle shaft

1шт.

6

B51530

SPACER

- throttle lever

2шт.

7

B51438

PLUG

- opening, shaft

1шт.

8

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle, plate

2шт.

9

B51211

PLATE

- throttle

1шт.

10

B51404

SPRING

- idle needle

1шт.

11

B51265

HOSE

NEEDLE - adjusting, idle

1шт.

12

B51541

PLUG

- pipe, fuel inlet

1шт.

13

B51305

JET

- idle

1шт.

14

B51345

VALVE

& SEAT ASSY. - fuel, Includes: Ref. 15

1шт.

15

B51618

WASHER

- fuel valve seat

1шт.

16

B51359

FLOAT

- carburetor

1шт.

17

B51433

AXLE

- pivot, float

1шт.

18

B51471

GASKET

-, Serial Range: bowl-body

1шт.

19

B51196

VENTURI - throat

1шт.

20

B51338

TUBE

JET - well vent

1шт.

21

B51289

JET - main

1шт.

22

B51619

WASHER

- main jet

1шт.

23

B51180

BOWL

ASSY. - carburetor, Includes: Ref. 24 - 26

1шт.

24

B51533

WASHER

- packing, choke shaft

1шт.

25

B51439

RETAINER

- packing washer

1шт.

26

B51509

PLUG

- opening, choke shaft

1шт.

27

B59632

SHAFT

ASSY. - choke

1шт.

28

B51579

SCREW - swivel, choke

1шт.

29

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

30

B51365

PLATE

- choke

1шт.

31

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

32

B51458

SCREW,#8 - 32 x 0.37"

- choke bracket

2шт.

33

B51400

SUPPORT

BRACKET ASSY. - choke, Includes: Ref. 34 - 37

1шт.

34

B51403

CLIP

- choke, Serial Range: rod-bracket

1шт.

35

B51594

X

NUT - choke clip screw

1шт.

36

B51580

SCREW

- choke clip

1шт.

37

B51412

SPRING

- return, choke lever

1шт.

38

B51442

FILTER

DISC - intake, drain

1шт.

39

B51541

PLUG

- pipe, bowl drain

1шт.

40

B51610

WASHER

- discharge, jet

1шт.

41

B51323

JET

- discharge, main

1шт.

42

B51618

WASHER

- main jet adjustment

1шт.

43

B51330

ADJUSTER

VALVE - adjustment, main jet

1шт.

44

G46826

GASKET

- mounting, carburetor

1шт.

45

B51496

GASKET

KIT - carburetor

1шт.

46

B51569

KIT

REPAIR KIT - carburetor

1шт.
