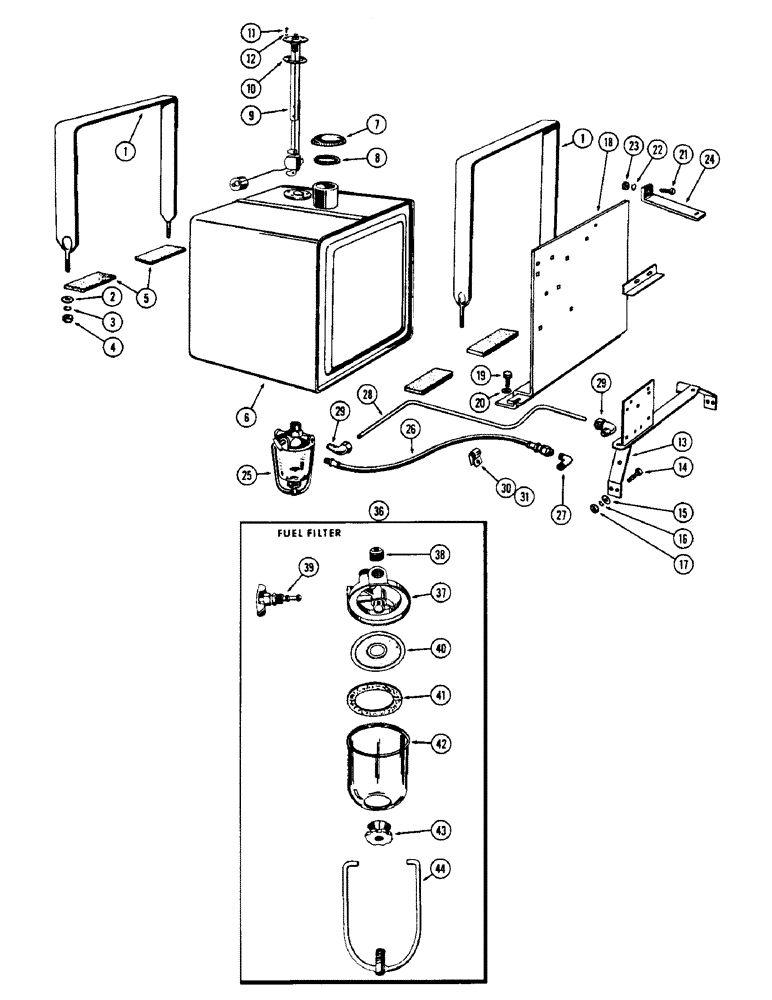

Запчасти Case W5A (066) - FUEL TANK, (188) SPARK IGNITION ENGINE, FUEL FILTER (03) - FUEL SYSTEM

1

A13425

STRAP - hold down, fuel tank

2шт.

2

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

5

A7390

CUSHION - mounting, fuel tank

4шт.

6

A13427

TANK - fuel

1шт.

7

A33558

CAP

- filler, fuel tank (Replaces A22451), Includes: Ref. 8

1шт.

8

A20619

GASKET

- filler cap

1шт.

9

A13669

SENDER UNIT

UNIT - sending, fuel tank (12 V.)

1шт.

10

A11822

GASKET

- mounting, sending unit

1шт.

11

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- mach., #10-23 x 5/8"

5шт.

12

192-8

WASHER - lock, #10

5шт.

13

A16459

SUPPORT - fuel tank, Start Serial: 8165601

1шт.

14

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex.

4шт.

15

195-25

WASHER,3/8"

- 13/32 x 13/16 x 5/64"

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

18

A15667

SUPPORT - rear, fuel tank, Serial Range: -816560

1шт.

19

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

3шт.

21

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16 x 7/8" N.C. carr.

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

- N.C. hex.

2шт.

24

A15676

BRACE - fuel tank rear support, Serial Range: -8165601

1шт.

25

A26615

STRAINER ELEMENT

FILTER - fuel (See Ref. 36)

1шт.

26

A16463

HOSE - filter to carburetor (Used late prod.)

1шт.

27

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degrees, 5/16 x 1/8" P.T.

1шт.

28

A15665

TUBE - filter to carburetor (Used early prod.)

1шт.

29

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

- 90 degrees, 5/16 x 1/8" P.T. (Used w/A15665 tube)

2шт.

30

A26696

NO LONGER SERVICED

CLAMP - hose (Used w/A16463 hose)

1шт.

31

A13431

CLAMP - tube (Used w/A15665 tube)

1шт.

36

A26615

STRAINER ELEMENT

FILTER ASSY. - fuel filter, Includes: Ref. 37 - 44

1шт.

37

A11215

BODY

- fuel filter

1шт.

38

221-1849

PLUG

- pipe, 1/8" sckt. hd., fuel filter

1шт.

39

A11205

VALVE

ASSY. - needle, fuel filter

1шт.

40

A11202

SCREEN

- filter, fuel

1шт.

41

A11203

GASKET

- bowl to body, fuel filter

1шт.

42

A11204

BOWL

- fuel (Glass), fuel filter

1шт.

43

A11207

NUT

- cup, bowl to body, fuel filter

1шт.

44

A11206

BAIL

ASSY. - bowl retainer, fuel filter

1шт.
