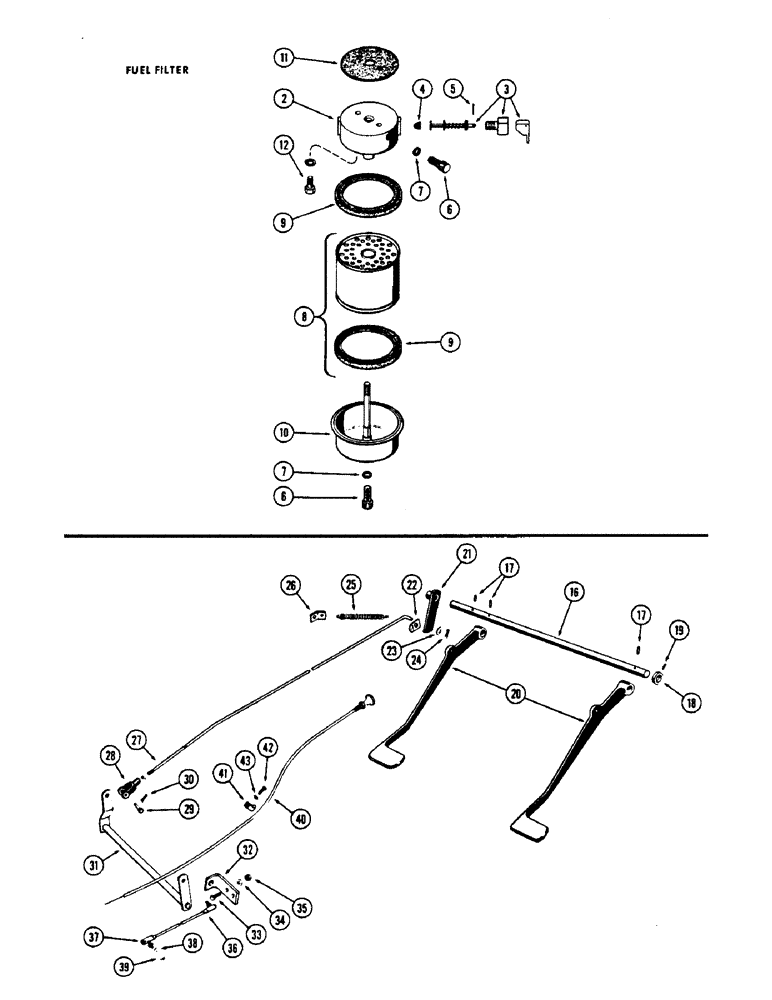

Запчасти Case W5A (016) - FUEL FILTER, (188) DIESEL ENGINE (03) - FUEL SYSTEM

G45254

SET OF PARTS

FILTER ASSY. - fuel, engine, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - filter (Order G45254)

1шт.

3

G45390

VALVE ASSY. - shut-off, Includes: Ref. 4 and 5

1шт.

4

G45898

SEAL - shut-off valve

1шт.

5

138-6

LOCK PIN,1/16" x 1/2", Slotted

Pin, , lever 1/16" x 1/2", Slotted

1шт.

6

G49080

PLUG

SCREW - air vent & drain

2шт.

7

G46886

O-RING

GASKET - plug screw

2шт.

8

A35668

FILTER

KIT - element, filter, Includes: Ref. 9

1шт.

9

G46895

GASKET

- filter element

2шт.

10

G45389

BOWL

ASSY. - sediment

1шт.

11

G46874

GASKET

-, Serial Range: filter-tank

1шт.

12

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - cap, 1/4 x 5/8" N.F. socket hd.

2шт.

16

A13553

SHAFT - cross, foot pedal, foot throttle control

1шт.

17

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, , Foot throttle control 3/16" x 1", Type A, Hardened

3шт.

18

A13554

COLLAR - cross shaft, foot throttle control

1шт.

19

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, 1/4 x 1/4" N.F., sckt. cup pt., foot throttle control

1шт.

20

A12405

PEDAL - foot throttle control

2шт.

21

A13555

LEVER - foot throttle control

1шт.

22

A26953

CLIP

- spring return, foot throttle control

1шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64", foot throttle control

1шт.

24

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Foot throttle control 3/32" x 5/8"

1шт.

25

A27688

VALVE SPRING

SPRING - pedal return, foot throttle control

1шт.

26

A26656

CLIP - return spring, foot throttle control

1шт.

27

A15692

ROD - front control, throttle

1шт.

28

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - end, throttle rod, foot throttle control

1шт.

29

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, throttle rod to lever, foot throttle control

1шт.

30

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Foot throttle control 1/16" x 1/2"

1шт.

31

A15688

SHAFT - cross, rear, throttle, foot throttle control

1шт.

32

A15694

BRACKET - cross shaft, foot throttle control

2шт.

33

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Foot throttle control Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

34

92-5

LOCK WASHER,5/16"

foot throttle control 5/16"

2шт.

35

25-115

NUT,5/16"-24, G5

- 5/16" NF hex, foot throttle control

2шт.

36

A15693

ROD - throttle, rear, foot throttle control

1шт.

37

A27403

X

JOINT ASSY. - ball, throttle, foot throttle control

2шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Foot throttle control 1/4"

2шт.

39

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex., foot throttle control

2шт.

40

A15928

CABLE ASSY. - fuel shut-off (Flex), foot throttle control

1шт.

41

A26673

CLIP

- cable, foot throttle control

2шт.

42

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Foot throttle control Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Foot throttle control 1/4"

2шт.
